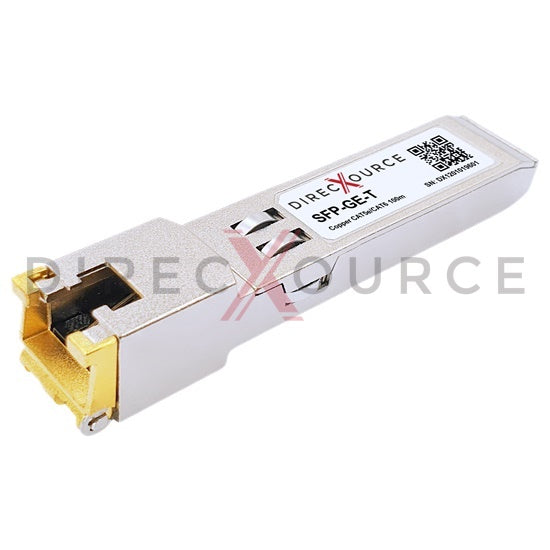

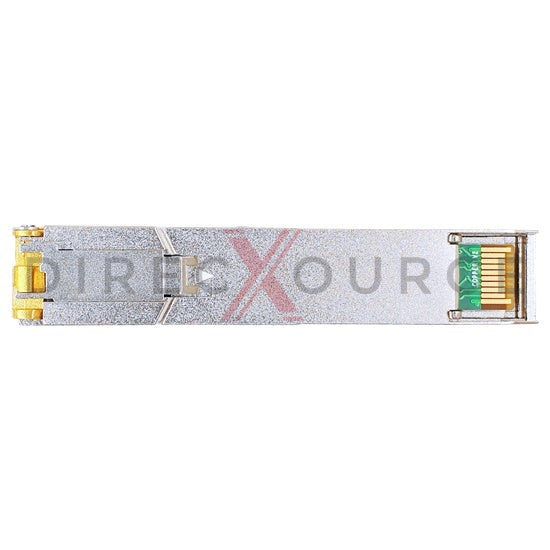

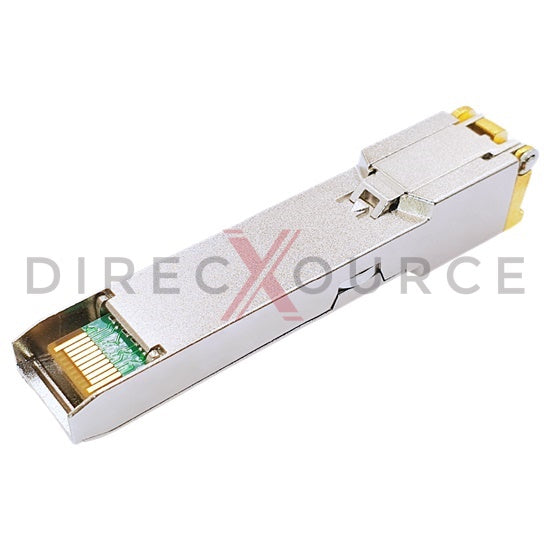

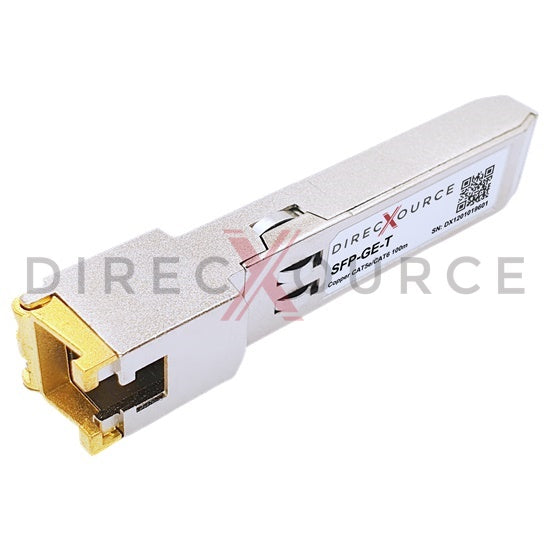

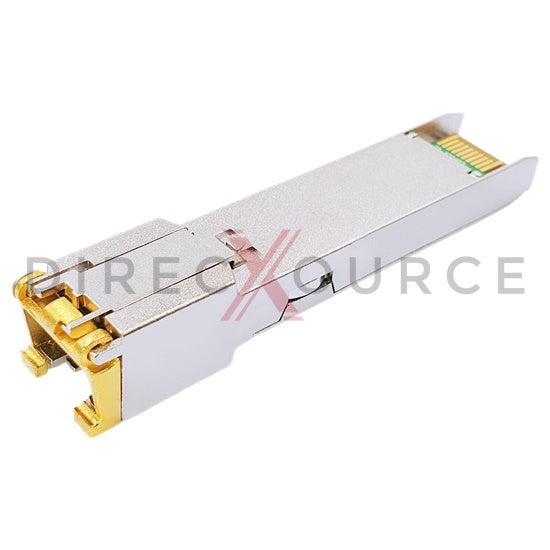

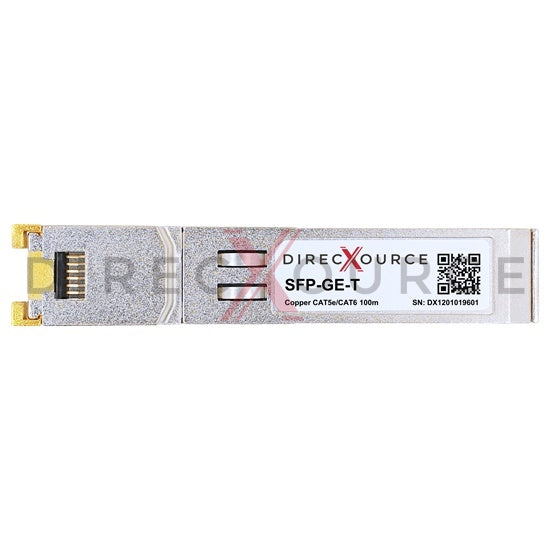

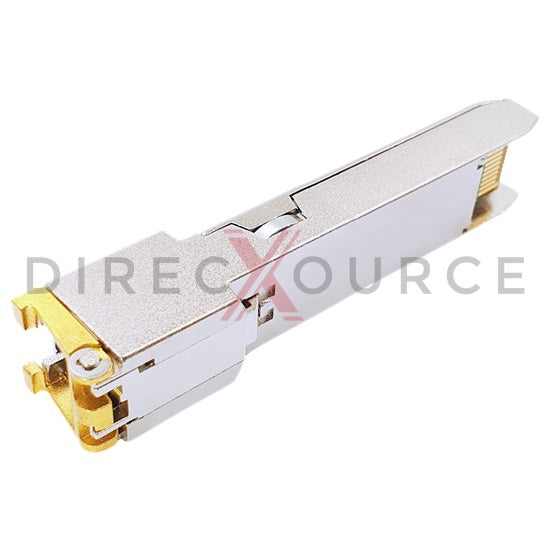

Extreme Networks MGBIC-02 Compatible 1000BASE-T SFP RJ45 100m CAT6/CAT6a Copper Transceiver Module
Extreme Networks MGBIC-02 compatible copper transceiver is a single channel 1000Mbps Small Form-factor Pluggable SFP module for use in 1000BASE Ethernet. SFP GE-T provides 1Gb/s throughput up to 100 meters over CAT5e twisted network cable. This transceiver is fully compliant with SFP Multi-Source Agreement (MSA), IEEE 802.3ab 1000BASE-T and SERDES standard. Its electrical interface is MSA compliant 20-pin edge type connector and the line-side interface is RJ45 connector. The full-duplex SFP transceiver offers high performance interconnection at 1 Gbps data rate. Low power consumption (1.05W for 100m), compatible with various brands of hosts, widely used in data centers and enterprise networks. Our modules are factory pre-programmed for compatibility, perform identically to original Extreme Networks MGBIC-02 transceivers.
Feature
- Equivalent to Extreme Networks MGBIC-02 in function
- Hot pluggable SFP form factor
- Data rate up to 1000Mbps
- Conversion between host-side 1000BASE-X and line-side 1000BASE-T
- Auto-sense MDI/MDIX and auto-negotiation
- Supports 1000BASE-T using 100m Cat 5e cable
- MSA memory accessible via 2-wire interface
- Single 3.3V power supply voltage
- Low power consumption (1.05W TYP @1000Mbps 100m)
- Ambient temperature range 0 to 70°C for commercial application
- Compliant with INF-8074i, SFF-8472
- Compliant with IEEE 802.3ab 1000BASE-T
- Compliant with RoHS, REACH, CE, FCC standards
Application
- Gigabit Ethernet
Specification
Extreme Networks Compatible P/N | MGBIC-02 | Form Factor | SFP |
Max Data Rate | 1000Mbps | Max Distance | 100m (328ft) |
Connector | RJ45 | Media | CAT6/CAT6a |
Modulation Format | PAM5 | DDM/DOM | Not support |
Power Consumption | 1.05W | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
