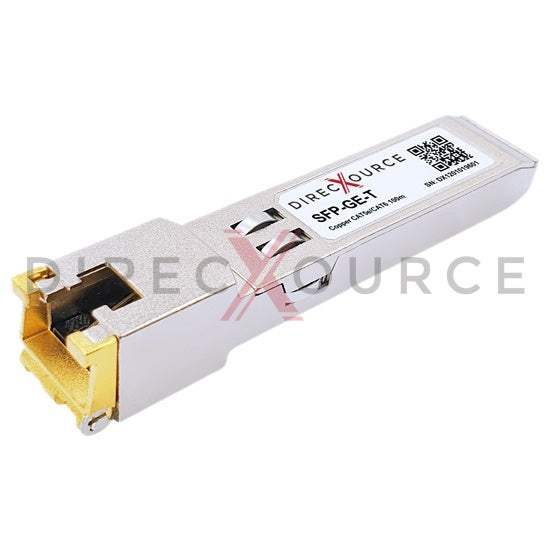

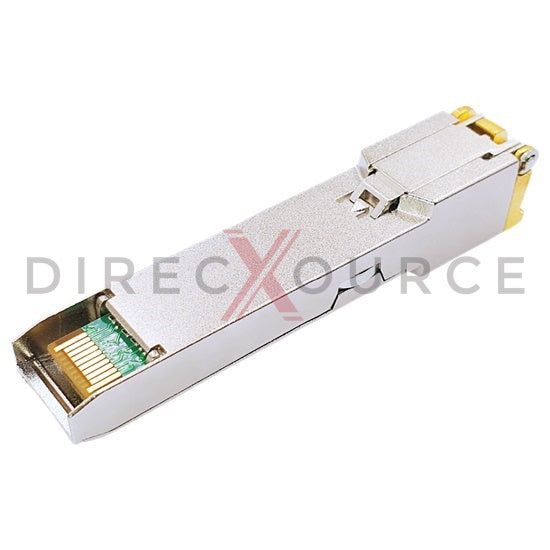

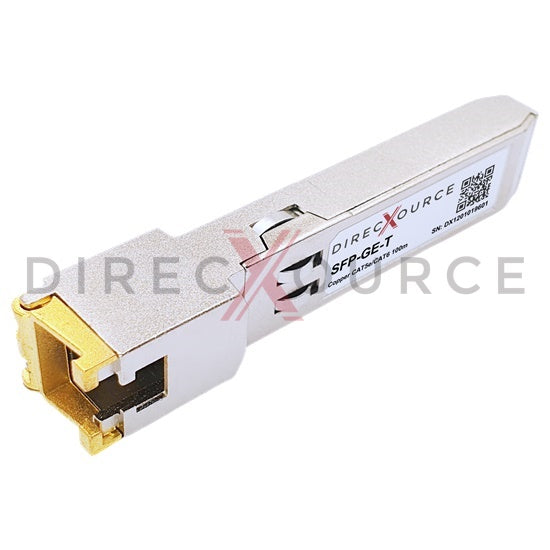

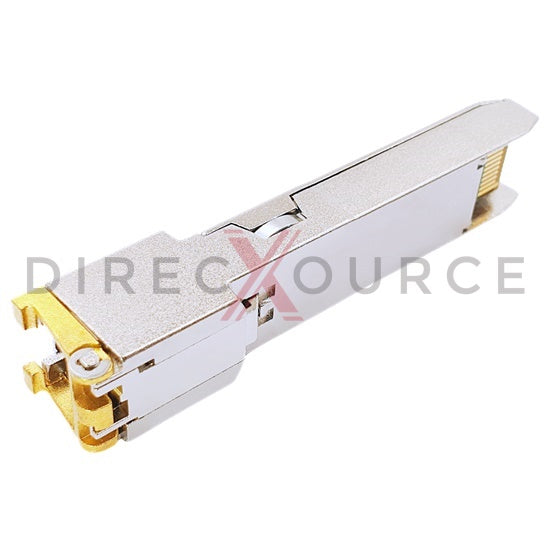

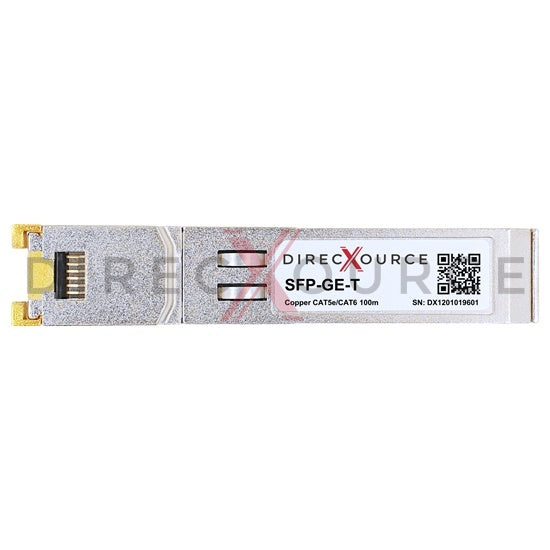

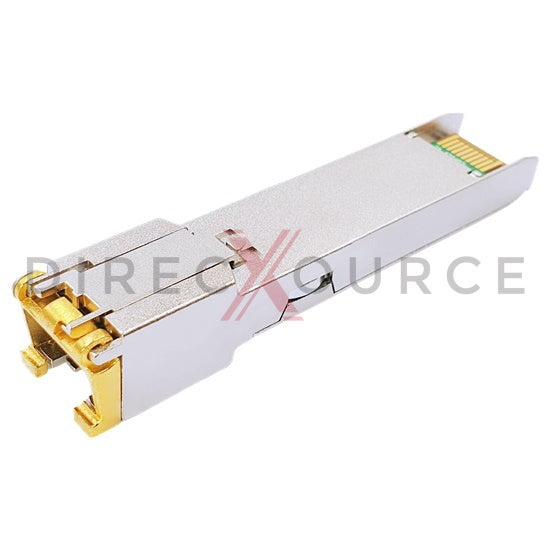

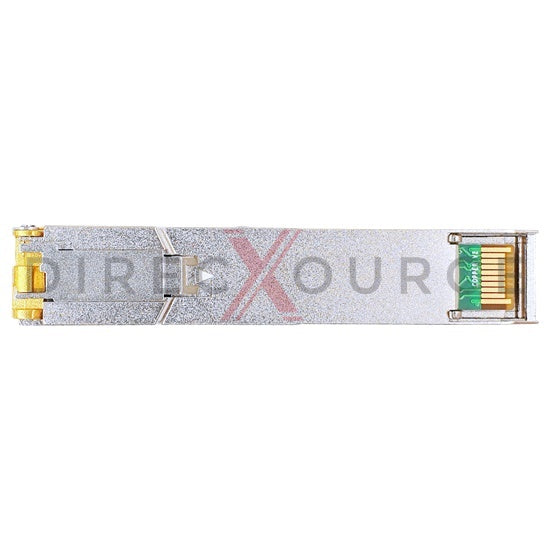

D-Link DGS-712 Compatible 1000BASE-T SFP RJ45 100m CAT6/CAT6a Copper Transceiver Module


D-Link DGS-712 compatible copper transceiver is a single channel 1000Mbps Small Form-factor Pluggable SFP module for use in 1000BASE Ethernet. SFP GE-T provides 1Gb/s throughput up to 100 meters over CAT5e twisted network cable. This transceiver is fully compliant with SFP Multi-Source Agreement (MSA), IEEE 802.3ab 1000BASE-T and SERDES standard. Its electrical interface is MSA compliant 20-pin edge type connector and the line-side interface is RJ45 connector. The full-duplex SFP transceiver offers high performance interconnection at 1 Gbps data rate. Low power consumption (1.05W for 100m), compatible with various brands of hosts, widely used in data centers and enterprise networks. Our modules are factory pre-programmed for compatibility, perform identically to original D-Link DGS-712 transceivers.


Feature

  • Equivalent to D-Link DGS-712 in function
  • Hot pluggable SFP form factor
  • Data rate up to 1000Mbps
  • Conversion between host-side 1000BASE-X and line-side 1000BASE-T
  • Auto-sense MDI/MDIX and auto-negotiation
  • Supports 1000BASE-T using 100m Cat 5e cable
  • MSA memory accessible via 2-wire interface
  • Single 3.3V power supply voltage
  • Low power consumption (1.05W TYP @1000Mbps 100m)
  • Ambient temperature range 0 to 70°C for commercial application
  • Compliant with INF-8074i, SFF-8472
  • Compliant with IEEE 802.3ab 1000BASE-T
  • Compliant with RoHS, REACH, CE, FCC standards

Application

  • Gigabit Ethernet

Specification

D-Link Compatible P/N DGS-712 Form Factor SFP
Max Data Rate 1000Mbps Max Distance 100m (328ft)
Connector RJ45 Media CAT6/CAT6a
Modulation Format PAM5 DDM/DOM Not support
Power Consumption 1.05W Commercial Temperature Range 0 to 70°C (32 to 158°F)
