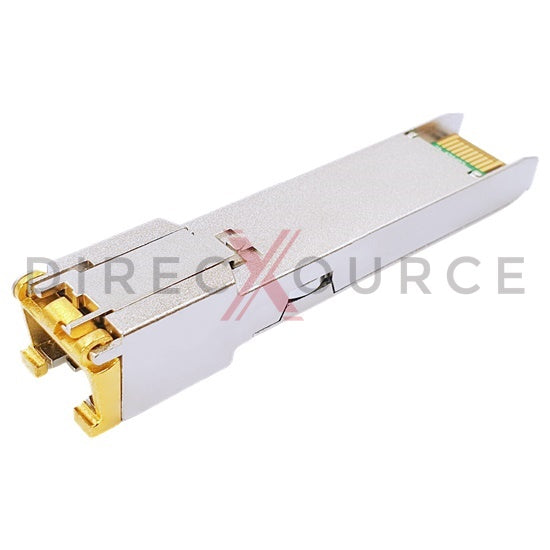

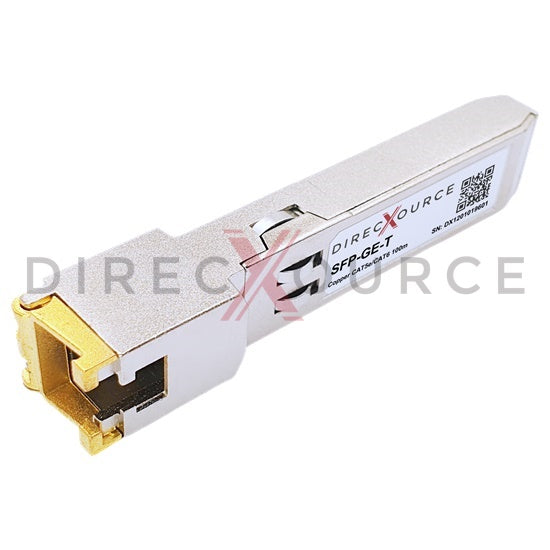

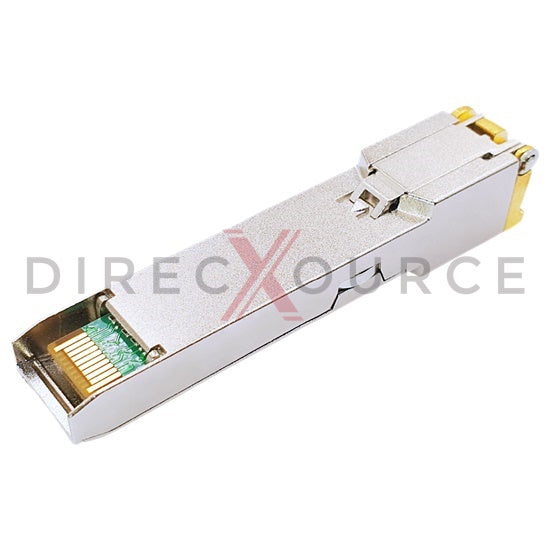

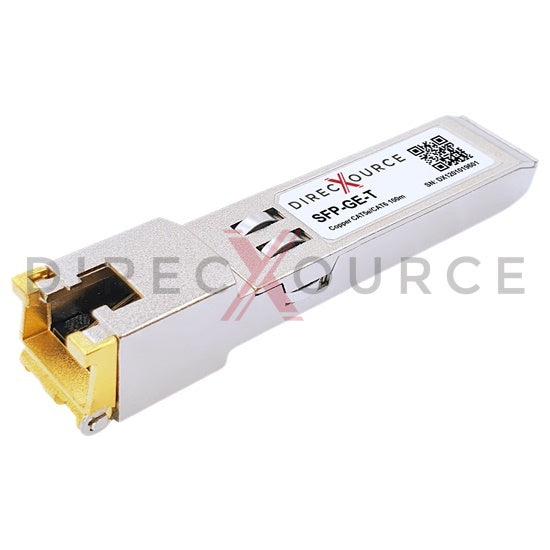

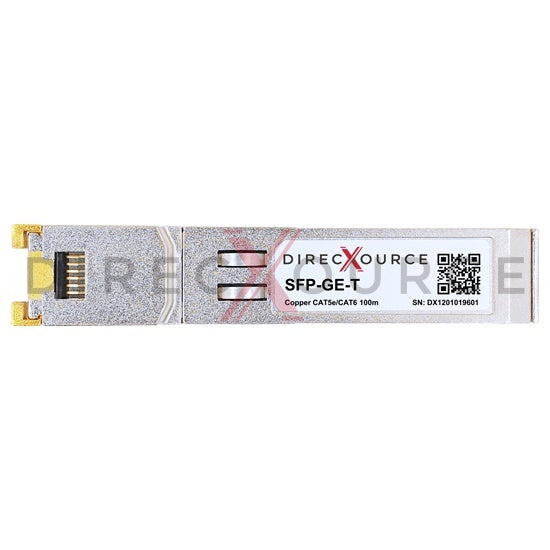

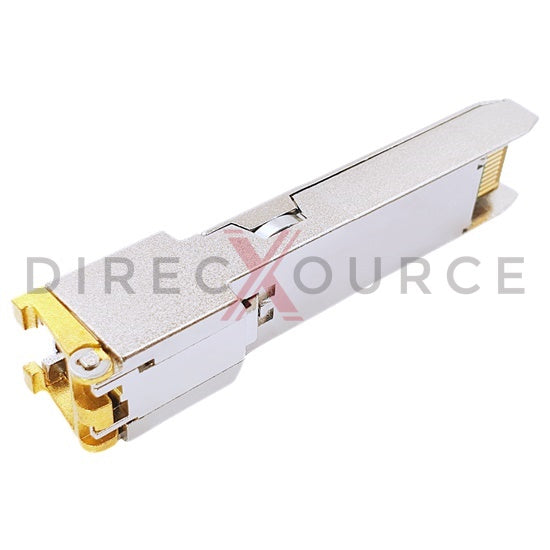

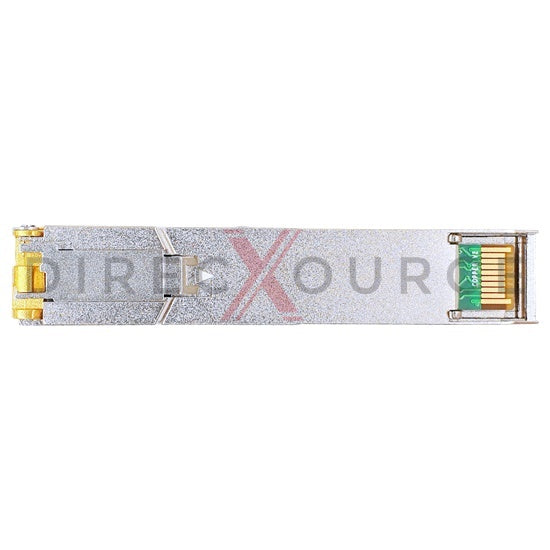

Cisco GLC-T Compatible 1000BASE-T SFP RJ45 100m CAT6/CAT6a Copper Transceiver Module

Cisco GLC-T Compatible 1000BASE-T SFP RJ45 100m CAT6/CAT6a Copper Transceiver Module

Cisco GLC-T compatible copper transceiver is a single channel 1000Mbps Small Form-factor Pluggable SFP module for use in 1000BASE Ethernet. SFP GE-T provides 1Gb/s throughput up to 100 meters over CAT5e twisted network cable. This transceiver is fully compliant with SFP Multi-Source Agreement (MSA), IEEE 802.3ab 1000BASE-T and SERDES standard. Its electrical interface is MSA compliant 20-pin edge type connector and the line-side interface is RJ45 connector. The full-duplex SFP transceiver offers high performance interconnection at 1 Gbps data rate. Low power consumption (1.05W for 100m), compatible with various brands of hosts, widely used in data centers and enterprise networks. Our modules are factory pre-programmed for compatibility, perform identically to original Cisco GLC-T transceivers.

Feature

• Equivalent to Cisco GLC-T in function
• Hot pluggable SFP form factor
• Data rate up to 1000Mbps
• Conversion between host-side 1000BASE-X and line-side 1000BASE-T
• Auto-sense MDI/MDIX and auto-negotiation
• Supports 1000BASE-T using 100m Cat 5e cable
• MSA memory accessible via 2-wire interface
• Single 3.3V power supply voltage
• Low power consumption (1.05W TYP @1000Mbps 100m)
• Ambient temperature range 0 to 70°C for commercial application
• Compliant with INF-8074i, SFF-8472
• Compliant with IEEE 802.3ab 1000BASE-T
• Compliant with RoHS, REACH, CE, FCC standards

Application

• Gigabit Ethernet

Specification
