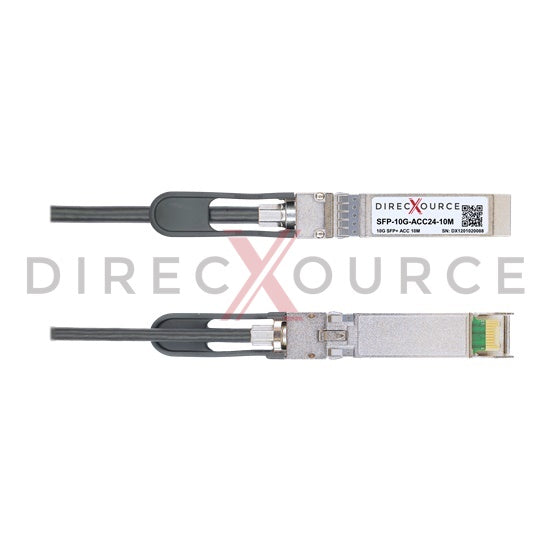

10m (32.81ft) Generic Compatible SFP-10G-ACC24-10M 10G SFP+ Active Direct Attach Twinax Copper Cable
direcXource's SFP-10G-ACC24-10M DAC is an active 10Gbps SFP+ to SFP+ direct attach cable for use in 10GBASE Ethernet. SFP+ active DAC provides 10Gb/s throughput for 10m interconnection with high speed twin-axial copper cable. Standard length options cover from 1 meter to 10 meters. This DAC is fully compliant with SFP+ Multi-Source Agreement (MSA), IEEE 802.3ae 10GBASE-CR and SFI standard. The twin-axial copper cable's wire gauge is 24AWG and pre-terminated with MSA compliant 20-pin edge type connectors. MSA memory map are accessible via 2-wire Interface (TWI/I2C). Our active DACs are factory pre-programmed for compatibility, perform identically to generic MSA direct attach cables.
Feature
- Hot Pluggable SFP+ to SFP+ Topology
- Data rate up to 10.3Gbps
- Pre-terminated 24AWG twin-axial copper cable
- 10.3125Gbps SFI electrical interface
- Minimum bending radius 30mm
- MSA memory accessible via 2-wire interface
- Single 3.3V power supply voltage
- Power consumption < 0.5W
- Ambient temperature range 0 to 70°C for commercial application
- Compliant with SFF-8431, SFF-8432, SFF-8419, SFF-8472
- Compliant with IEEE 802.3ae 10GBASE-CR
- Compliant with RoHS, REACH, CE, FCC standards
Application
- 10G Ethernet
- Data Center
Specification
Part Number | SFP-10G-ACC24-10M | Topology | SFP+ to SFP+ |
Max Data Rate | 10Gbps | Cable Length | 10m (32.81ft) |
Cable Type | Twinax | Wire Gauge | 24AWG |
Jacket Meterial | OFNR (PVC) | Minimum Bend Radius | 30mm |
Signal Conditioner | Redriver for TX and RX | Modulation Format | NRZ |
Power Consumption | 0.5W | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
