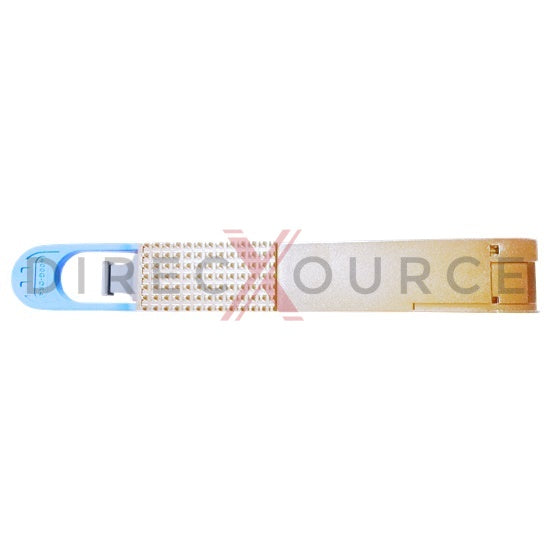

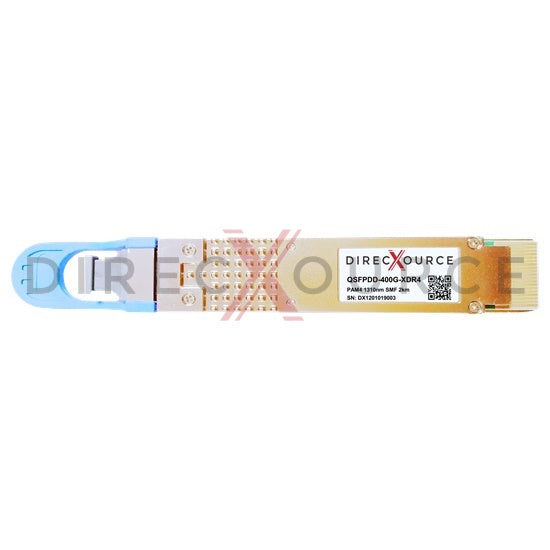

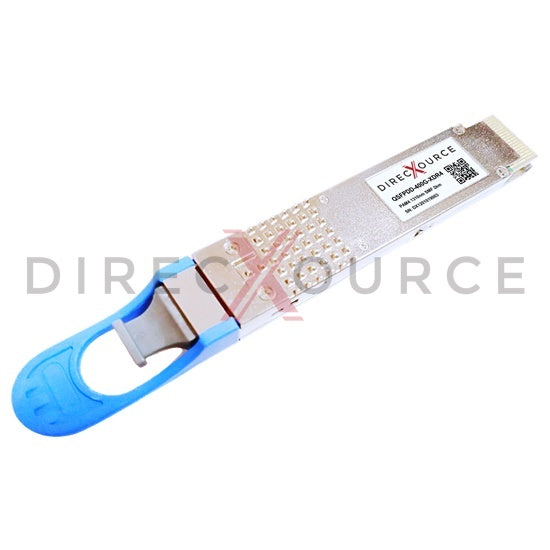

Generic Compatible QSFPDD-400G-XDR4 400GBASE-XDR4 QSFP-DD PAM4 1310nm 2km SMF MTP/MPO-12 DOM Optical Transceiver Module

Original price $3,374.00
Current price $2,024.00
SKU

Generic Compatible QSFPDD-400G-XDR4 400GBASE-XDR4 QSFP-DD PAM4 1310nm 2km SMF MTP/MPO-12 DOM Optical Transceiver Module


direcXource's QSFPDD-400G-XDR4 optical transceiver is a parallel 400Gbps Quad Small Form-factor Pluggable - Double Density QSFP-DD module for use in 400GBASE Ethernet. QSFP-DD XDR4 provides 400Gb/s throughput up to 2km over single-mode fiber (SMF) with host FEC using 1310nm wavelength. This transceiver is fully compliant with QSFP-DD Multi-Source Agreement (MSA), IEEE 802.3bs 400GBASE-XDR4 and 400GAUI-8 standard. Its electrical interface is MSA compliant 76-pin edge type connector and the optical interface is MTP/MPO-12 APC connector. The full-duplex QSFP-DD transceiver implements 4 independent 106.26 Gbps PAM4 transmit and receive signal channels in each fiber for an aggregate 400 Gbps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our modules are factory pre-programmed for compatibility, perform identically to generic MSA transceivers.


Feature

  • Hot pluggable QSFP-DD form factor
  • Aggregate data rate up to 400Gbps
  • 4 channels 1310nm EML transmitter
  • 4 channels PIN photo receiver
  • MTP/MPO-12 APC optical connector
  • Link distances up to SMF 2km with host FEC
  • 8x 53.125Gbps PAM4 retimed 400GUAI-8 electrical interface
  • Built-in digital diagnostic via 2-wire interface
  • Single 3.3V power supply voltage
  • Power consumption < 12W
  • Ambient temperature range 0 to 70°C for commercial application
  • Compliant with QSFP-DD MSA, CMIS
  • Compliant with IEEE 802.3bs 400GBASE-XDR4
  • Compliant with RoHS, REACH, CE, FCC standards

Application

  • 400G Ethernet
  • Data Center

Specification

Part Number QSFPDD-400G-XDR4 Form Factor QSFP-DD
Max Data Rate 400Gbps Max Distance 2km (1.2 miles)
Wavelength 1310nm Connector MTP/MPO-12 APC
DDM/DOM Support Media SMF
Transmitter Type 4x EML Receiver Type PIN
Transmitter Power -2.4 to 4dBm Receiver Sensitivity < -6.4dBm
Extinction Ratio 3.5dB Receiver Overload 3.5dBm
Transmitter and Dispersion Eye Closure Quaternary 3.4dB Power Budget 4dB
OE Packaging COB Packaging Signal Conditioner DSP for TX and RX
Electric Signal 8x50G Optical Signal 4x100G
Modulation Format PAM4 Host FEC Support
Power Consumption 12W Commercial Temperature Range 0 to 70°C (32 to 158°F)
