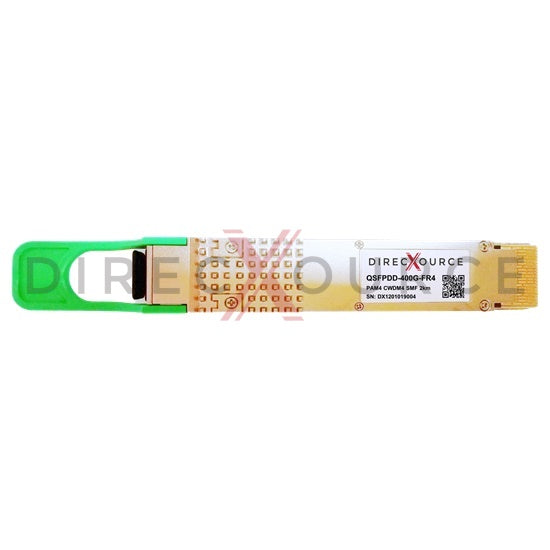

Generic Compatible QSFPDD-400G-FR4 400GBASE-FR4 QSFP-DD PAM4 1310nm 2km SMF LC DOM Optical Transceiver Module
direcXource's QSFPDD-400G-FR4 optical transceiver is a parallel 400Gbps Quad Small Form-factor Pluggable - Double Density QSFP-DD module for use in 400GBASE Ethernet. QSFP-DD FR4 provides 400Gb/s throughput up to 2km over single-mode fiber (SMF) with host FEC using 1271nm, 1291nm, 1311nm, 1331nm wavelength. This transceiver is fully compliant with QSFP-DD Multi-Source Agreement (MSA), IEEE 802.3cu 400GBASE-FR4 and IEEE 802.3bs 400GAUI-8 standard. Its electrical interface is MSA compliant 76-pin edge type connector and the optical interface is Duplex LC connector. The full-duplex QSFP-DD transceiver implements 4 independent 106.26 Gbps PAM4 transmit and receive signal channels in each wavelength for an aggregate 400 Gbps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our modules are factory pre-programmed for compatibility, perform identically to generic MSA transceivers.
Feature
- Hot pluggable QSFP-DD form factor
- Aggregate data rate up to 400Gbps
- 4 channels 1310nm CWDM EML transmitter
- 4 channels PIN photo receiver
- Duplex LC optical connector
- Link distances up to SMF 2km with host FEC
- 8x 53.125Gbps PAM4 retimed 400GUAI-8 electrical interface
- Built-in digital diagnostic via 2-wire interface
- Single 3.3V power supply voltage
- Power consumption < 12W
- Ambient temperature range 0 to 70°C for commercial application
- Compliant with QSFP-DD MSA, CMIS
- Compliant with IEEE 802.3cu 400GBASE-FR4
- Compliant with RoHS, REACH, CE, FCC standards
Application
- 400G Ethernet
- Data Center
Specification
| Part Number | QSFPDD-400G-FR4 | Form Factor | QSFP-DD |
| Max Data Rate | 400Gbps | Max Distance | 2km (1.2 miles) |
| Wavelength | 1271nm, 1291nm, 1311nm, 1331nm | Connector | Duplex LC |
| DDM/DOM | Support | Media | SMF |
| Transmitter Type | 4x CWDM EML | Receiver Type | PIN |
| Transmitter Power | -3.3 to 3.5dBm | Receiver Sensitivity | < -7.3dBm |
| Extinction Ratio | 3.5dB | Receiver Overload | 3.5dBm |
| Transmitter and Dispersion Eye Closure Quaternary | 3.4dB | Power Budget | 4dB |
| OE Packaging | COB Packaging | Signal Conditioner | DSP for TX and RX |
| Electric Signal | 8x50G | Optical Signal | 4x100G |
| Modulation Format | PAM4 | Host FEC | Support |
| Power Consumption | 12W | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
