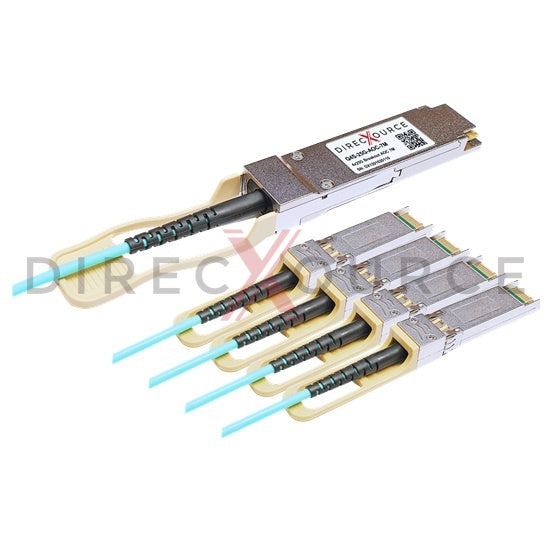

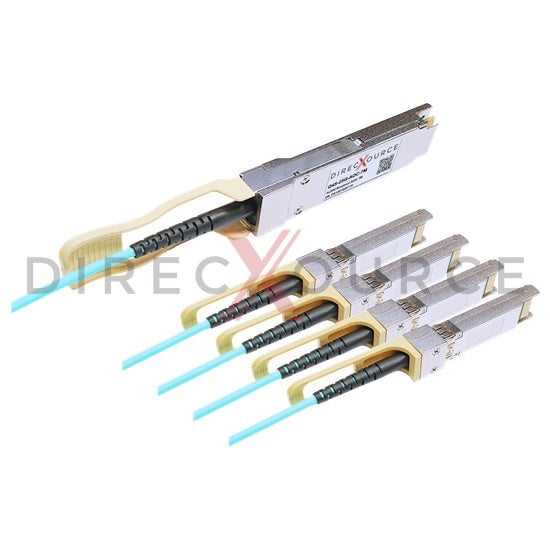

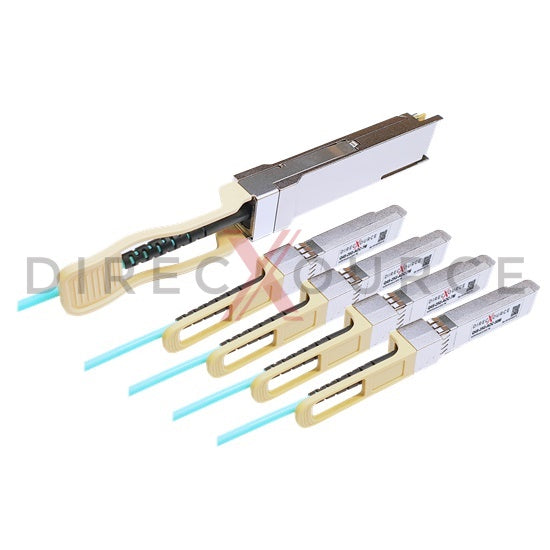

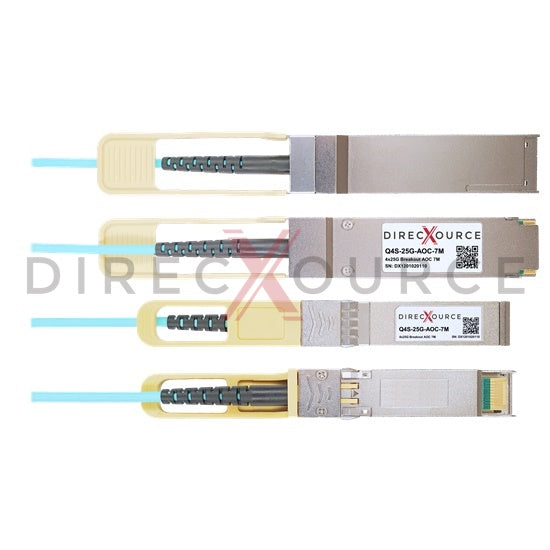

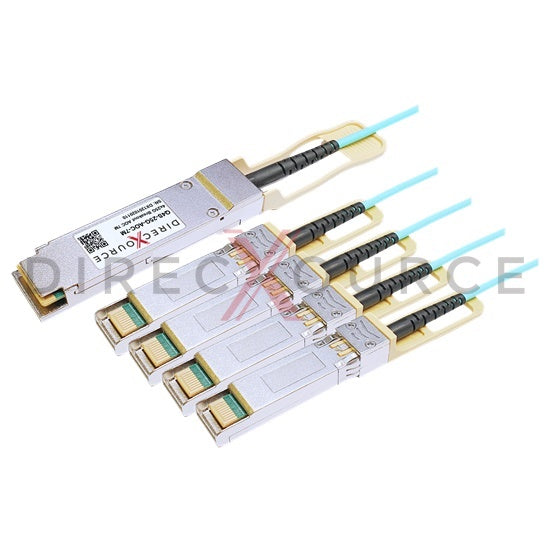

7m (22.97ft) Generic Compatible Q4S-25G-AOC-7M 100G QSFP28 to 4x25G SFP28 Breakout Active Optical Cable
direcXource's Q4S-25G-AOC-7M AOC is a 4x 25Gbps QSFP28 to 4 SFP28 active optical breakout cable for use in 25GBASE Ethernet. QSFP28 breakout AOC provides 4x 25Gb/s throughput for 7m interconnection with laser-optimized multi-mode fiber optical cable. Standard length options cover from 1 meter to 30 meters. The breakout AOC cable splits 4x 25 Gbps NRZ signals from QSFP28 into SFP28. This AOC is fully compliant with QSFP28 Multi-Source Agreement (MSA), IEEE 802.3by 25GBASE-CR and 25GAUI standard. The active optical cable is pre-terminated with MSA compliant 38-pin and 20-pin edge type connectors. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our breakout AOCs are factory pre-programmed for compatibility, perform identically to generic MSA direct attach cables.
Feature
- Hot Pluggable QSFP28 to 4 SFP28 Topology
- Split 100Gbps into 4 channels of 25Gbps
- Pre-terminated Multi-mode fiber cable
- 4x 25.78125Gbps NRZ retimed CUAI-4/25GAUI electrical interface
- Minimum bending radius 7.5mm
- Built-in digital diagnostic via 2-wire interface
- Single 3.3V power supply voltage
- Power consumption < 3.5W/1W
- Ambient temperature range 0 to 70°C for commercial application
- Compliant with SFF-8665, SFF-8661, SFF-8679, SFF-8636, SFF-8402, SFF-8432, SFF-8419, SFF-8472
- Compliant with IEEE 802.3by 25GBASE-CR
- Compliant with RoHS, REACH, CE, FCC standards
Application
- 25G Ethernet
- Data Center
Specification
Part Number | Q4S-25G-AOC-7M | Topology | QSFP28 to 4 SFP28 |
Max Data Rate | 4x 25Gbps | Cable Length | 7m (22.97ft) |
Cable Type | OM3 Multi Mode Fiber | Jacket Meterial | OFNP |
Minimum Bend Radius | 7.5mm | Signal Conditioner | Retimer for TX and RX |
Modulation Format | NRZ | Host FEC | Support |
Power Consumption | 3.5W/1W | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
