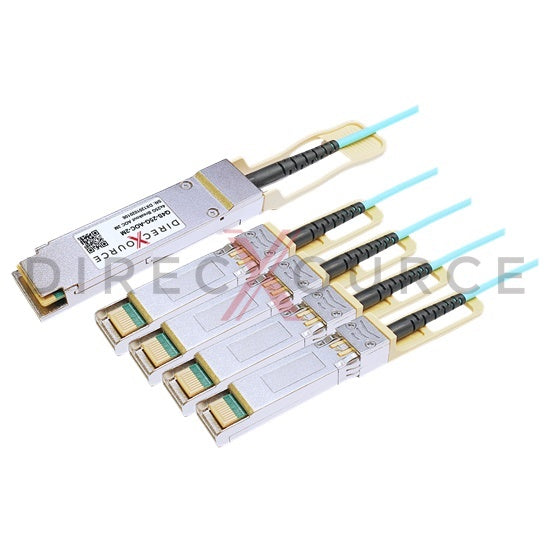

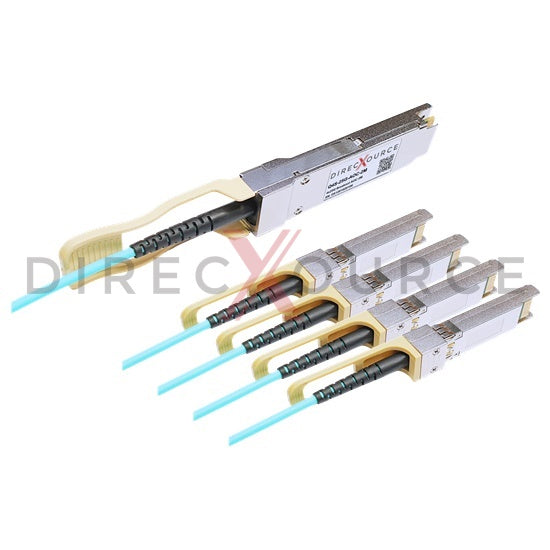

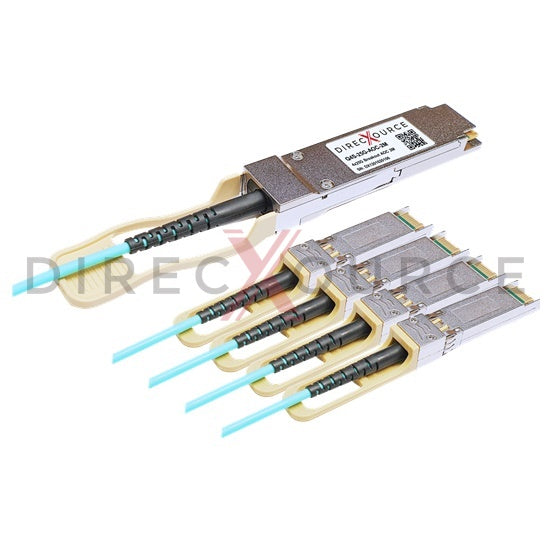

2m (6.56ft) Generic Compatible Q4S-25G-AOC-2M 100G QSFP28 to 4x25G SFP28 Breakout Active Optical Cable

Original price $792.00
Current price $475.00
SKU

2m (6.56ft) Generic Compatible Q4S-25G-AOC-2M 100G QSFP28 to 4x25G SFP28 Breakout Active Optical Cable


direcXource's Q4S-25G-AOC-2M AOC is a 4x 25Gbps QSFP28 to 4 SFP28 active optical breakout cable for use in 25GBASE Ethernet. QSFP28 breakout AOC provides 4x 25Gb/s throughput for 2m interconnection with laser-optimized multi-mode fiber optical cable. Standard length options cover from 1 meter to 30 meters. The breakout AOC cable splits 4x 25 Gbps NRZ signals from QSFP28 into SFP28. This AOC is fully compliant with QSFP28 Multi-Source Agreement (MSA), IEEE 802.3by 25GBASE-CR and 25GAUI standard. The active optical cable is pre-terminated with MSA compliant 38-pin and 20-pin edge type connectors. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our breakout AOCs are factory pre-programmed for compatibility, perform identically to generic MSA direct attach cables.


Feature

  • Hot Pluggable QSFP28 to 4 SFP28 Topology
  • Split 100Gbps into 4 channels of 25Gbps
  • Pre-terminated Multi-mode fiber cable
  • 4x 25.78125Gbps NRZ retimed CUAI-4/25GAUI electrical interface
  • Minimum bending radius 7.5mm
  • Built-in digital diagnostic via 2-wire interface
  • Single 3.3V power supply voltage
  • Power consumption < 3.5W/1W
  • Ambient temperature range 0 to 70°C for commercial application
  • Compliant with SFF-8665, SFF-8661, SFF-8679, SFF-8636, SFF-8402, SFF-8432, SFF-8419, SFF-8472
  • Compliant with IEEE 802.3by 25GBASE-CR
  • Compliant with RoHS, REACH, CE, FCC standards

Application

  • 25G Ethernet
  • Data Center

Specification

Part Number Q4S-25G-AOC-2M Topology QSFP28 to 4 SFP28
Max Data Rate 4x 25Gbps Cable Length 2m (6.56ft)
Cable Type OM3 Multi Mode Fiber Jacket Meterial OFNP
Minimum Bend Radius 7.5mm Signal Conditioner Retimer for TX and RX
Modulation Format NRZ Host FEC Support
Power Consumption 3.5W/1W Commercial Temperature Range 0 to 70°C (32 to 158°F)
