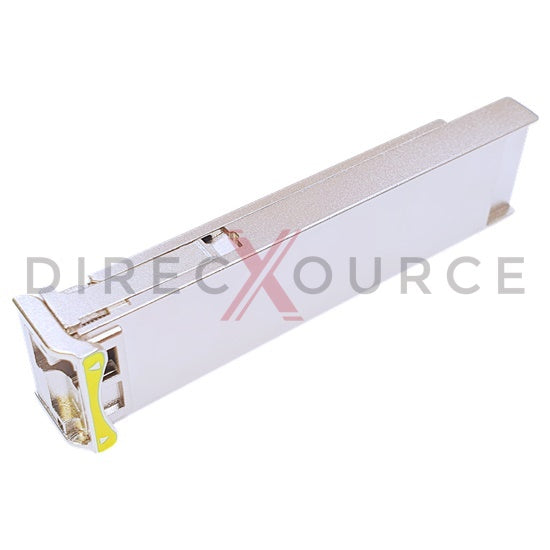

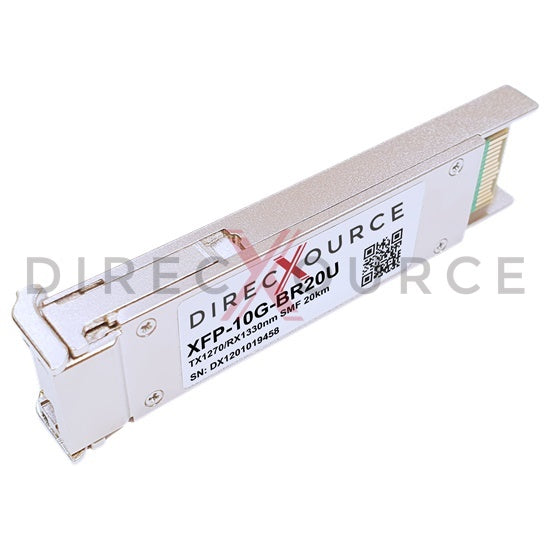

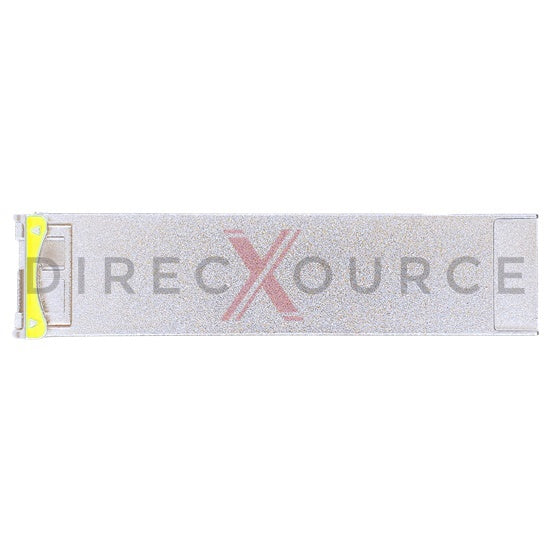

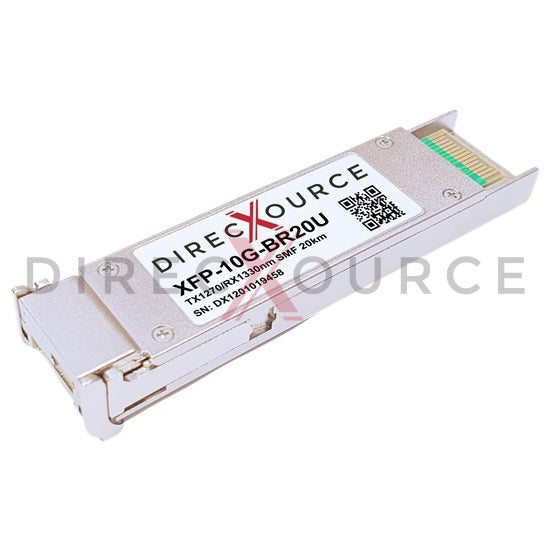

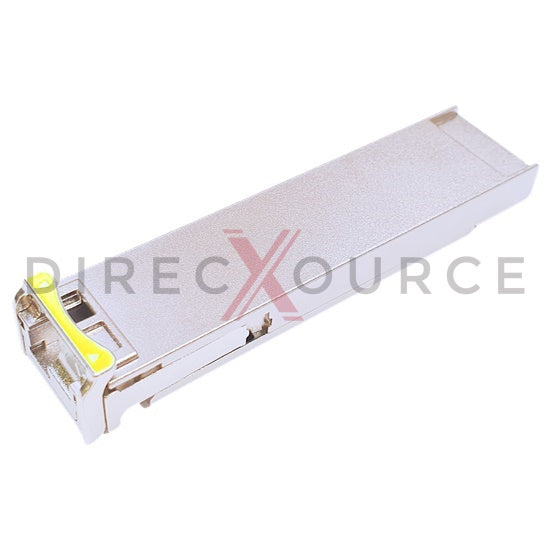

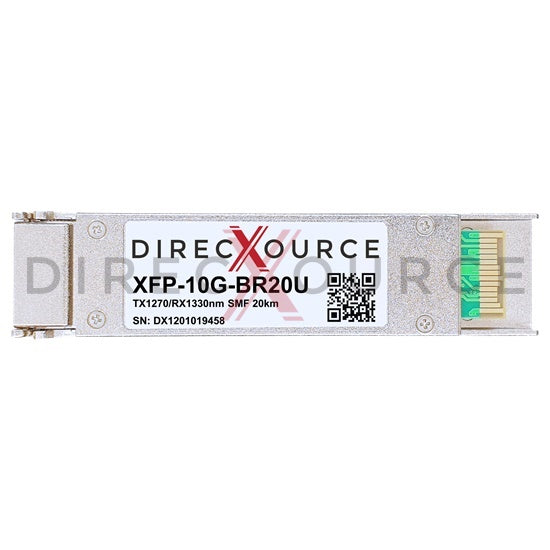

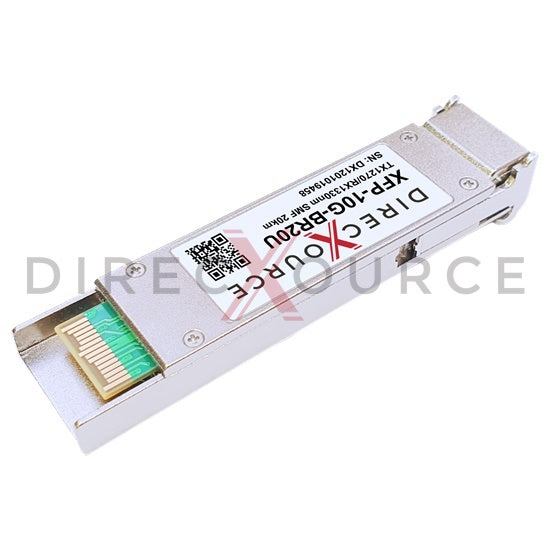

Dell GP-XFP-10GBX-U-20 Compatible 10GBASE-BR BIDI XFP TX1270nm/RX1330nm 20km SMF LC DOM Optical Transceiver Module

Original price $299.00
Current price $179.00
SKU

Dell GP-XFP-10GBX-U-20 Compatible 10GBASE-BR BIDI XFP TX1270nm/RX1330nm 20km SMF LC DOM Optical Transceiver Module


Dell GP-XFP-10GBX-U-20 compatible optical transceiver is a single fiber bidirection 10.3Gbps Form-factor Pluggable XFP BIDI module for use in 10GBASE Ethernet. XFP BR20U provides 10Gb/s throughput up to 20km over single-mode fiber (SMF) using 1270nm in transmitter side and 1330nm in receiver side. This transceiver is fully compliant with XFP Multi-Source Agreement (MSA), IEEE 802.3 10GBASE-BR20 and XFI standard. Its electrical interface is MSA compliant 30-pin edge type connector and the optical interface is Simplex LC connector. The full-duplex XFP transceiver features highly reliable DFB transmitter and PIN photo detector to offer high performance interconnection at 10 Gbps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our modules are factory pre-programmed for compatibility, perform identically to original Dell GP-XFP-10GBX-U-20 transceivers.


Feature

  • Equivalent to Dell GP-XFP-10GBX-U-20 in function
  • Hot pluggable XFP form factor
  • Data rate up to 10.3Gbps
  • 1270nm DFB transmitter
  • PIN photo receiver
  • Simplex LC optical connector
  • Link distances up to SMF 20km
  • Built-in digital diagnostic via 2-wire interface
  • Single 3.3V power supply voltage
  • Power consumption < 2W
  • Ambient temperature range 0 to 70°C for commercial application
  • Compliant with INF-8077i
  • Compliant with IEEE 802.3 10GBASE-BR20
  • Compliant with RoHS, REACH, CE, FCC standards

Application

  • 10G Ethernet
  • 10G SONET/SDH

Specification

Dell Compatible P/N GP-XFP-10GBX-U-20 Form Factor XFP
Max Data Rate 10.3Gbps Max Distance 20km (12.4 miles)
Wavelength TX1270nm/RX1330nm Connector Simplex LC
DDM/DOM Support Media SMF
Transmitter Type DFB Receiver Type PIN
Transmitter Power -2 to 3dBm Receiver Sensitivity < -14dBm
Extinction Ratio 3.5dB Receiver Overload 0.5dBm
Transmit and Dispersion Penalty 3.2dB Power Budget 12dB
OE Packaging Coaxial Packaging Modulation Format NRZ
Power Consumption 2W Commercial Temperature Range 0 to 70°C (32 to 158°F)
