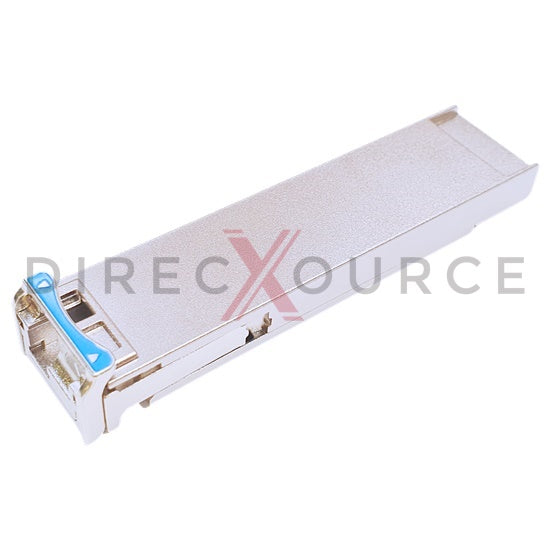

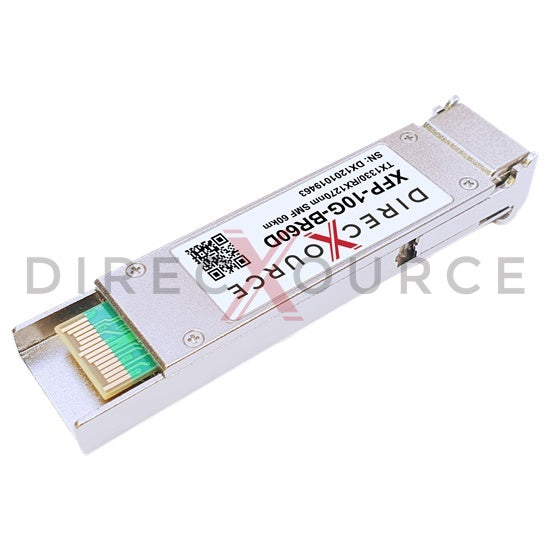

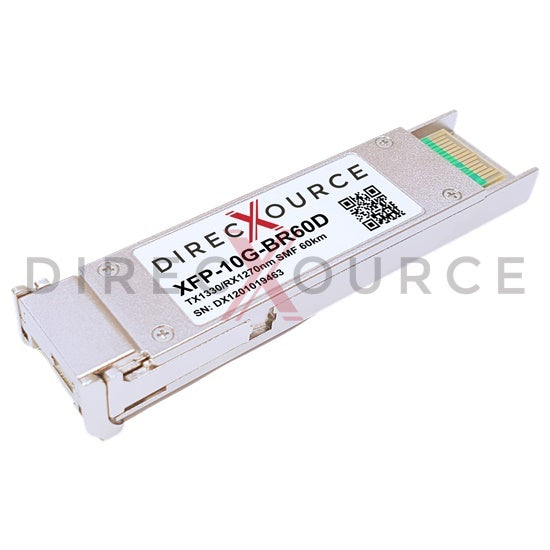

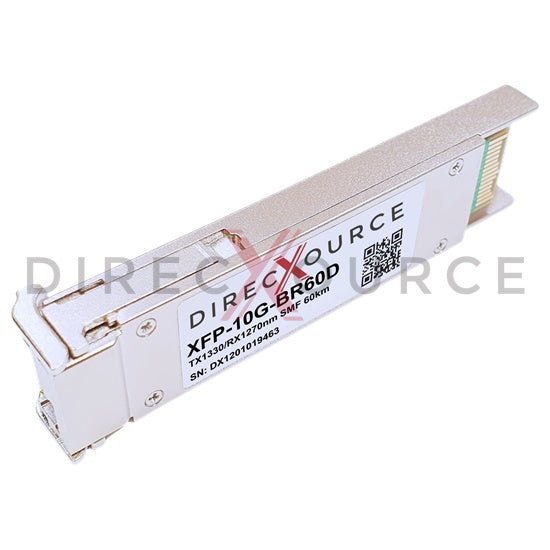

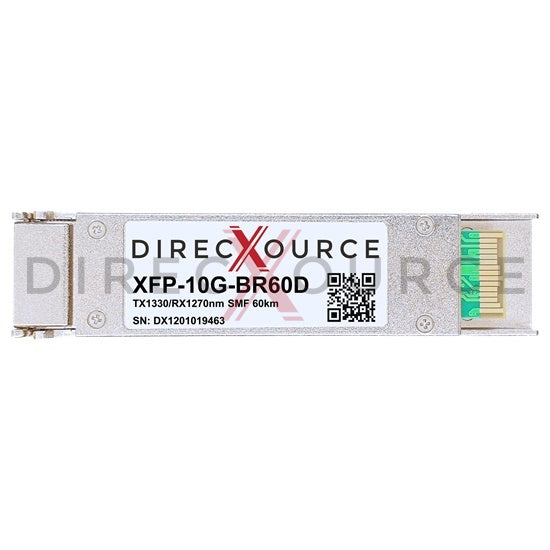

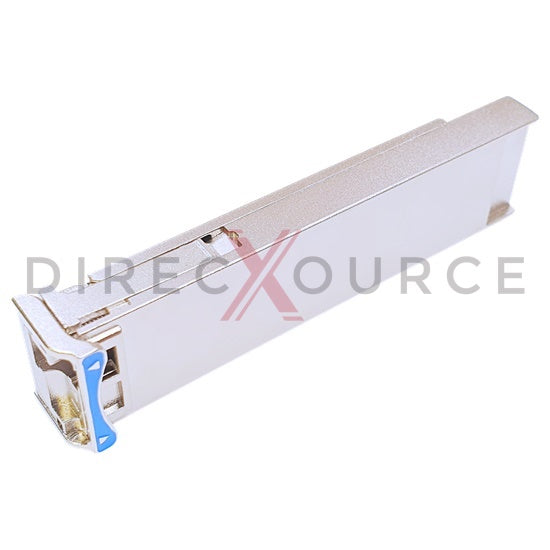

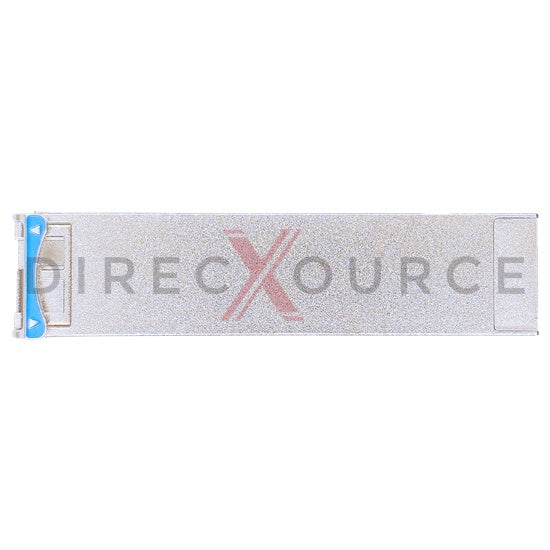

Dell GP-XFP-10GBX-D-60 Compatible 10GBASE-BR BIDI XFP TX1330nm/RX1270nm 60km SMF LC DOM Optical Transceiver Module

Dell GP-XFP-10GBX-D-60 Compatible 10GBASE-BR BIDI XFP TX1330nm/RX1270nm 60km SMF LC DOM Optical Transceiver Module

Dell GP-XFP-10GBX-D-60 compatible optical transceiver is a single fiber bidirection 10.3Gbps Form-factor Pluggable XFP BIDI module for use in 10GBASE Ethernet. XFP BR60D provides 10Gb/s throughput up to 60km over single-mode fiber (SMF) using 1330nm in transmitter side and 1270nm in receiver side. This transceiver is fully compliant with XFP Multi-Source Agreement (MSA), IEEE 802.3 10GBASE-BR60 and XFI standard. Its electrical interface is MSA compliant 30-pin edge type connector and the optical interface is Simplex LC connector. The full-duplex XFP transceiver features highly reliable DFB transmitter and APD photo detector to offer high performance interconnection at 10 Gbps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our modules are factory pre-programmed for compatibility, perform identically to original Dell GP-XFP-10GBX-D-60 transceivers.

Feature

• Equivalent to Dell GP-XFP-10GBX-D-60 in function
• Hot pluggable XFP form factor
• Data rate up to 10.3Gbps
• 1330nm DFB transmitter
• APD photo receiver
• Simplex LC optical connector
• Link distances up to SMF 60km
• Built-in digital diagnostic via 2-wire interface
• Single 3.3V power supply voltage
• Power consumption < 3W
• Ambient temperature range 0 to 70°C for commercial application
• Compliant with INF-8077i
• Compliant with IEEE 802.3 10GBASE-BR60
• Compliant with RoHS, REACH, CE, FCC standards

Application

• 10G Ethernet
• 10G SONET/SDH

Specification
