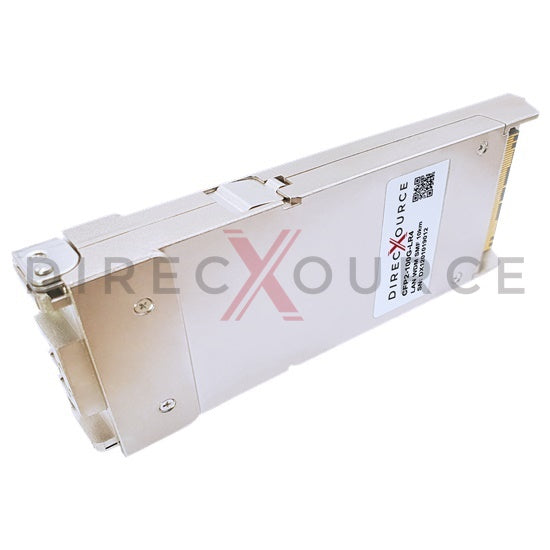

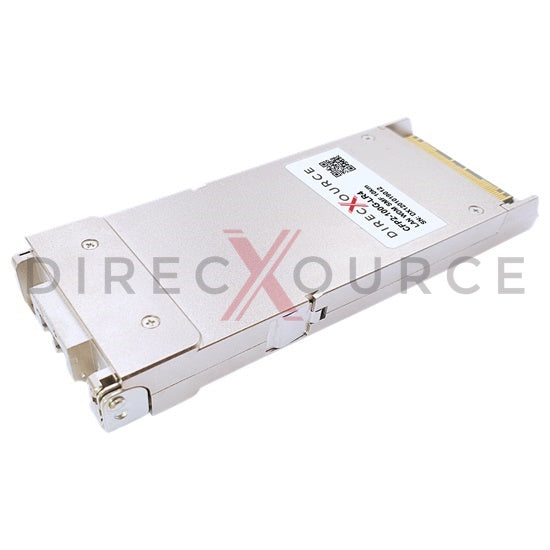

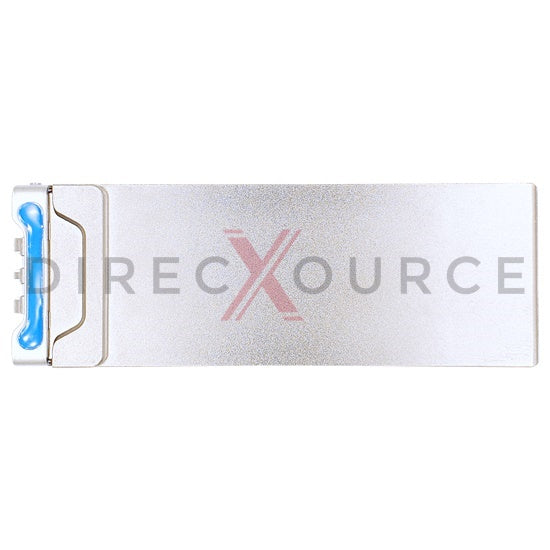

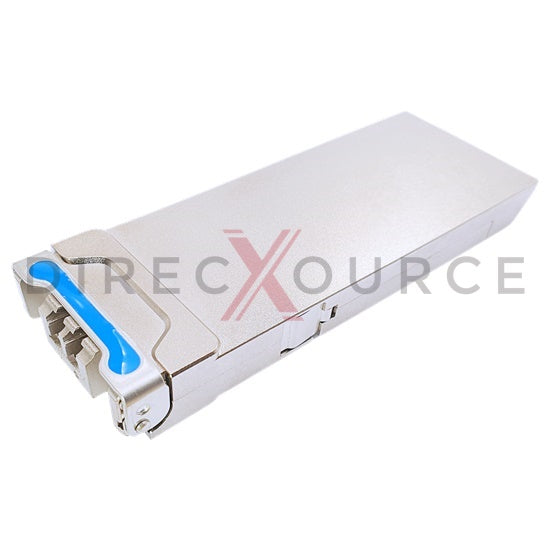

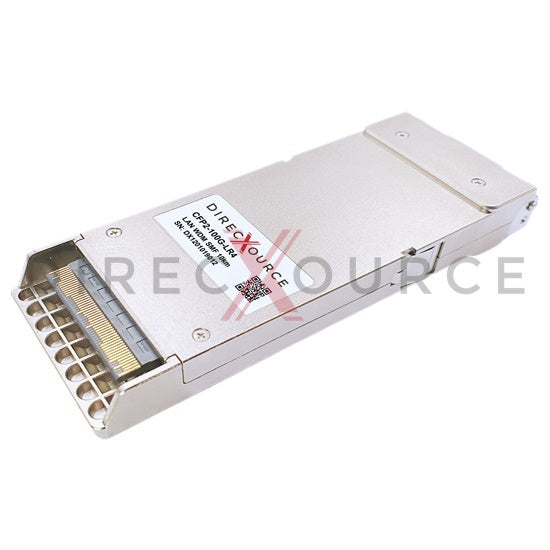

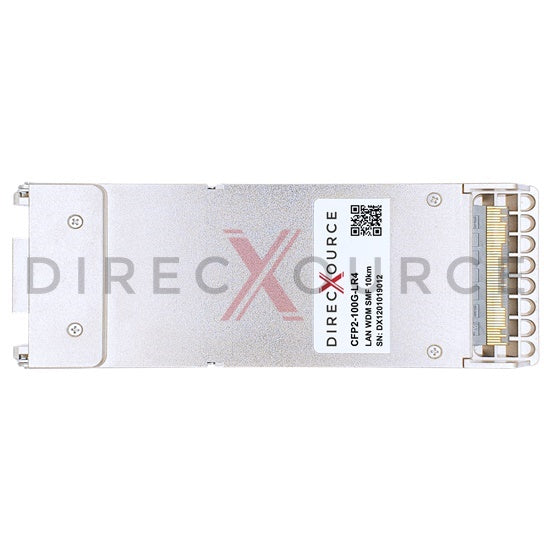

Dell CFP2-100GBASE-LR4 Compatible 100GBASE-LR4 CFP2 1310nm 10km SMF LC DOM Optical Transceiver Module

Dell CFP2-100GBASE-LR4 Compatible 100GBASE-LR4 CFP2 1310nm 10km SMF LC DOM Optical Transceiver Module

Dell CFP2-100GBASE-LR4 compatible optical transceiver is a parallel 112Gbps C Form-factor Pluggable CFP2 module for use in 100GBASE Ethernet. CFP2 LR4 provides 100Gb/s throughput up to 10km over single-mode fiber (SMF) with built-in FEC using 1295.56nm, 1300.05nm, 1304.58nm, 1309.14nm wavelength. This transceiver is fully compliant with CFP2 Multi-Source Agreement (MSA), IEEE 802.3ba 100GBASE-LR4 and CAUI-4 standard. Its electrical interface is MSA compliant 104-pin edge type connector and the optical interface is Duplex LC connector. The full-duplex CFP2 transceiver implements 4 independent 25.78125 Gbps transmit and receive channels in each wavelength for an aggregate 100 Gbps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via MDIO interface. Our modules are factory pre-programmed for compatibility, perform identically to original Dell CFP2-100GBASE-LR4 transceivers.

Feature

• Equivalent to Dell CFP2-100GBASE-LR4 in function
• Hot pluggable CFP2 form factor
• Aggregate data rate up to 112Gbps
• 4 channels 1310nm LAN-WDM DML transmitter
• 4 channels PIN photo receiver
• Duplex LC optical connector
• Link distances up to SMF 10km with module embedded FEC
• 4x 25.78125Gbps NRZ retimed CUAI-4 electrical interface
• Built-in digital diagnostic via MDIO interface
• Single 3.3V power supply voltage
• Power consumption < 6W
• Ambient temperature range 0 to 70°C for commercial application
• Compliant with CFP2 MSA
• Compliant with IEEE 802.3ba 100GBASE-LR4
• Compliant with RoHS, REACH, CE, FCC standards

Application

• 100G Ethernet
• Data Center
• OTU4
