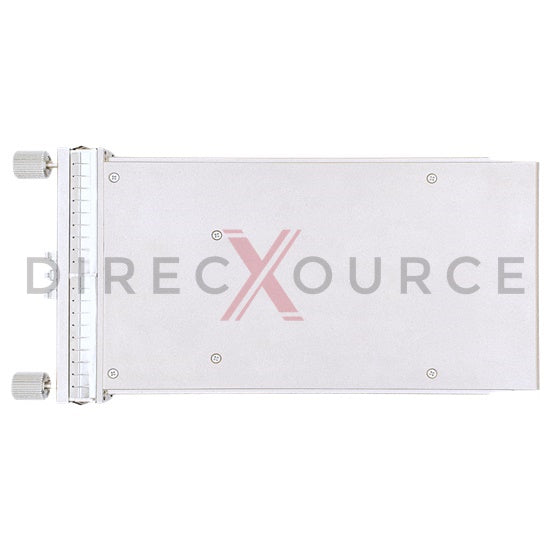

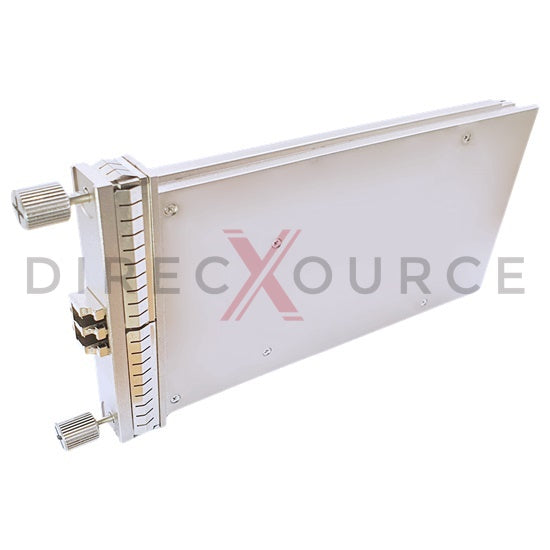

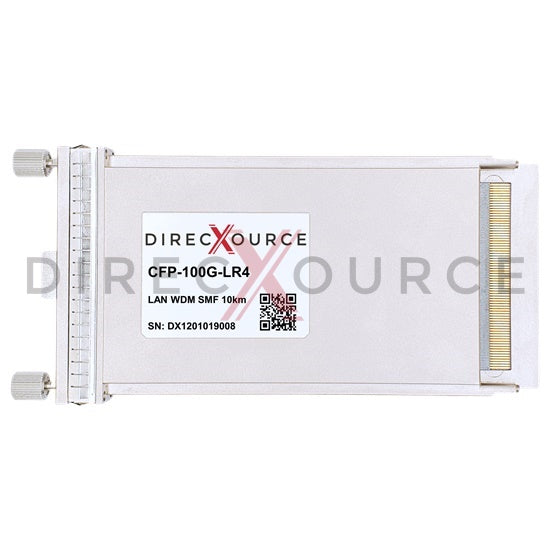

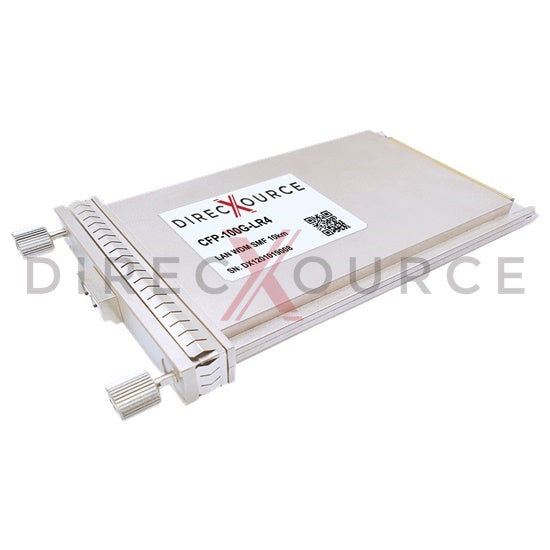

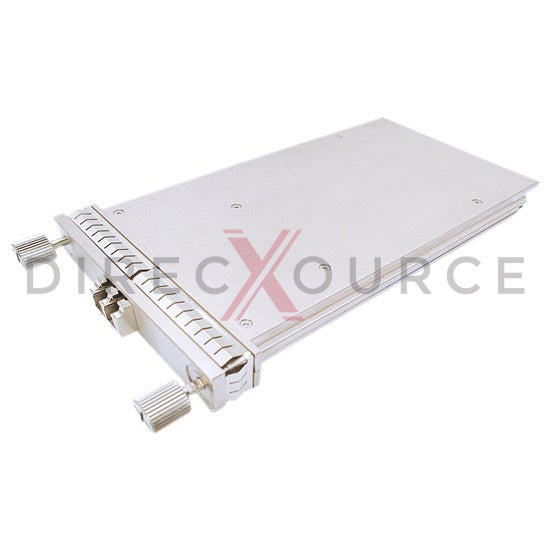

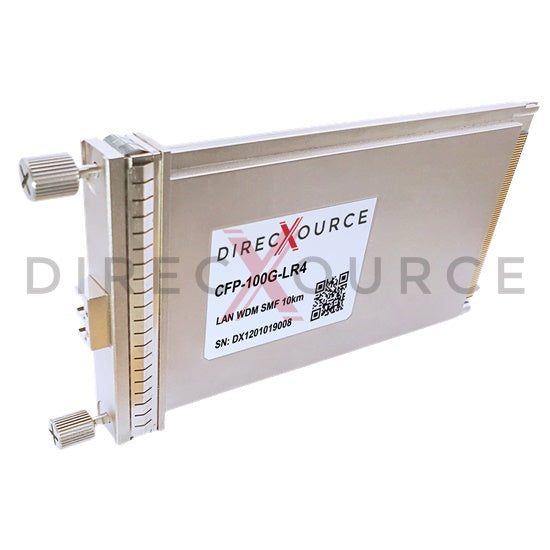

Dell CFP-100GBASE-LR4 Compatible 100GBASE-LR4 CFP 1310nm 10km SMF LC DOM Optical Transceiver Module

Dell CFP-100GBASE-LR4 Compatible 100GBASE-LR4 CFP 1310nm 10km SMF LC DOM Optical Transceiver Module

Dell CFP-100GBASE-LR4 compatible optical transceiver is a parallel 112Gbps C Form-factor Pluggable CFP module for use in 100GBASE Ethernet. CFP LR4 provides 100Gb/s throughput up to 10km over single-mode fiber (SMF) with built-in FEC using 1310nm wavelength. This transceiver is fully compliant with CFP Multi-Source Agreement (MSA), IEEE 802.3ba 100GBASE-LR4 and CAUI-10 standard. Its electrical interface is MSA compliant 148-pin edge type connector and the optical interface is Duplex LC connector. The full-duplex CFP transceiver implements 4 independent 25.78125 Gbps transmit and receive channels in each wavelength for an aggregate 100 Gbps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via MDIO interface. Our modules are factory pre-programmed for compatibility, perform identically to original Dell CFP-100GBASE-LR4 transceivers.

Feature

• Equivalent to Dell CFP-100GBASE-LR4 in function
• Hot pluggable CFP form factor
• Aggregate data rate up to 112Gbps
• 4 channels 1310nm LAN-WDM DML transmitter
• 4 channels PIN photo receiver
• Duplex LC optical connector
• Link distances up to SMF 10km with module embedded FEC
• 10x 10Gbps NRZ retimed CUAI-10 electrical interface
• Built-in digital diagnostic via MDIO interface
• Single 3.3V power supply voltage
• Power consumption < 12W
• Ambient temperature range 0 to 70°C for commercial application
• Compliant with CFP MSA
• Compliant with IEEE 802.3ba 100GBASE-LR4
• Compliant with RoHS, REACH, CE, FCC standards

Application

• 100G Ethernet
• Data Center
• OTU4
