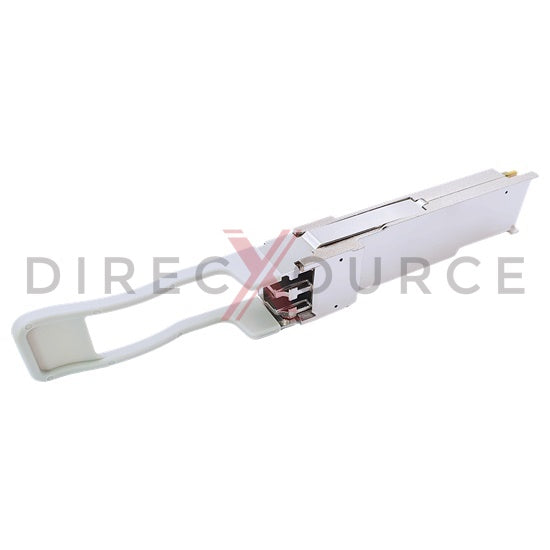

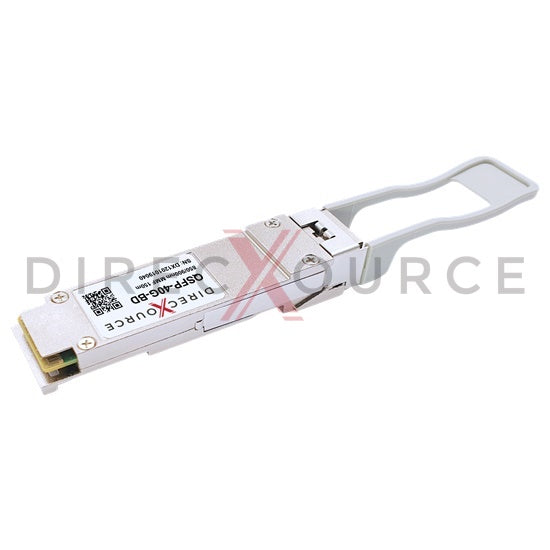

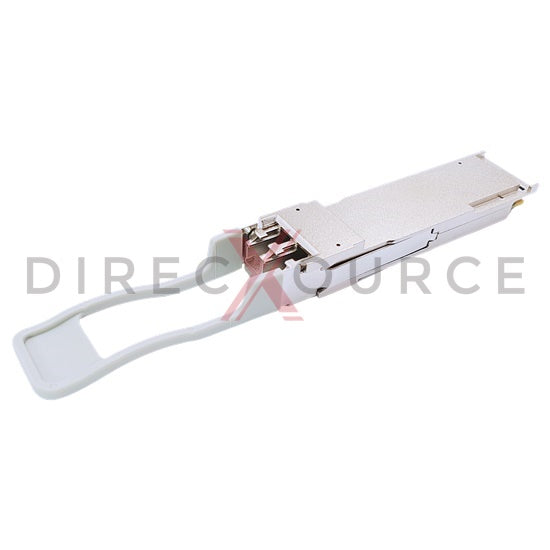

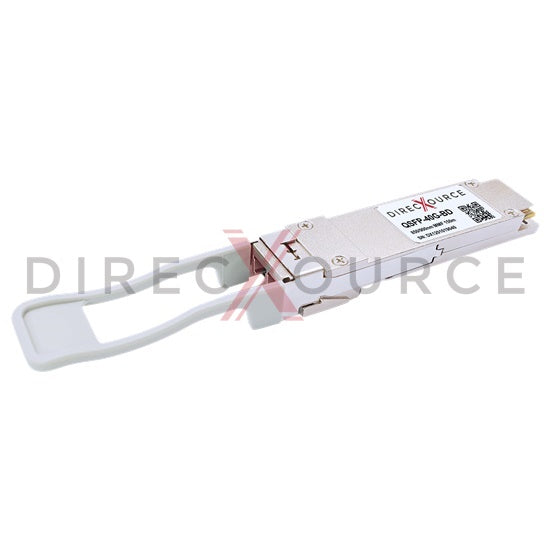

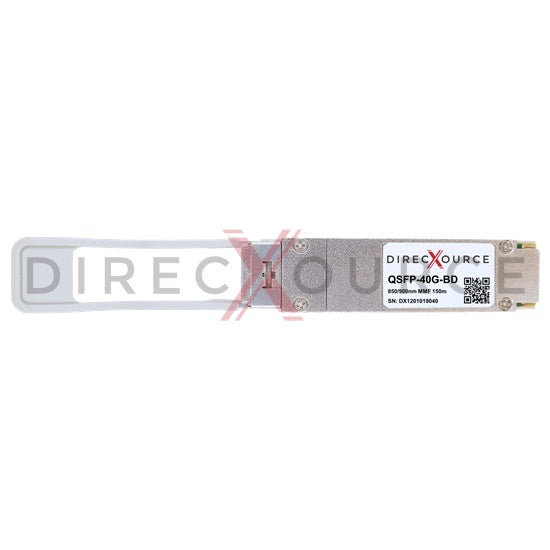

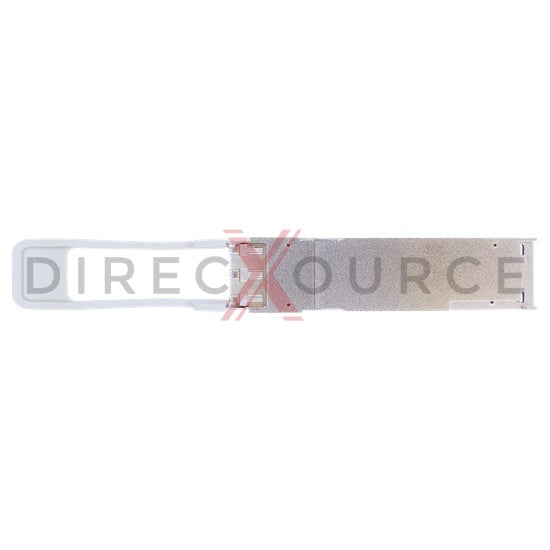

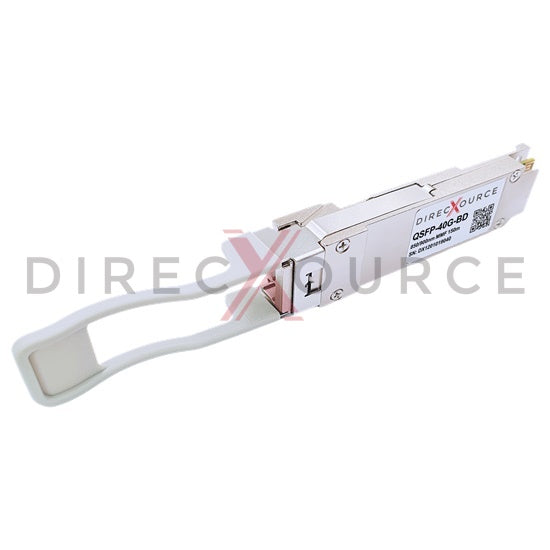

Cisco QSFP-40G-SR-BD Compatible 40GBASE-BD QSFP+ 850nm/900nm 150m MMF LC DOM Optical Transceiver Module

Cisco QSFP-40G-SR-BD Compatible 40GBASE-BD QSFP+ 850nm/900nm 150m MMF LC DOM Optical Transceiver Module

Cisco QSFP-40G-SR-BD compatible optical transceiver is a parallel 41.2Gbps Quad Small Form-factor Pluggable QSFP+ BIDI module for use in 40GBASE Ethernet. QSFP+ BD provides 40Gb/s throughput up to 150 meters over OM4 or 100 meters over OM3 multi-mode fiber (MMF) using 850nm/900nm wavelength. This transceiver is fully compliant with QSFP+ Multi-Source Agreement (MSA), IEEE 802.3 40GBASE-BD and XLPPI standard. Its electrical interface is MSA compliant 38-pin edge type connector and the optical interface is Duplex LC connector. The full-duplex QSFP+ transceiver implements 2 independent 20 Gbps transmit and receive channels in each fiber/wavelength for an aggregate 40 Gbps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our modules are factory pre-programmed for compatibility, perform identically to original Cisco QSFP-40G-SR-BD transceivers.

Feature

• Equivalent to Cisco QSFP-40G-SR-BD in function
• Hot pluggable QSFP+ form factor
• Aggregate data rate up to 41.2Gbps
• 850nm/900nm VCSEL transmitter
• PIN photo receiver
• Duplex LC optical connector
• Link distances up to OM4 150m, OM3 100m
• 4x 10.3125Gbps XLPPI electrical interface
• 2x 20Gbps 850/900nm Bidirection optical signal
• Built-in digital diagnostic via 2-wire interface
• Single 3.3V power supply voltage
• Power consumption < 3.5W
• Ambient temperature range 0 to 70°C for commercial application
• Compliant with SFF-8436, SFF-8635, SFF-8661, SFF-8679, SFF-8636
• Compliant with IEEE 802.3 40GBASE-BD
• Compliant with RoHS, REACH, CE, FCC standards

Application

• 40G Ethernet
• Data Center
• OTU3
