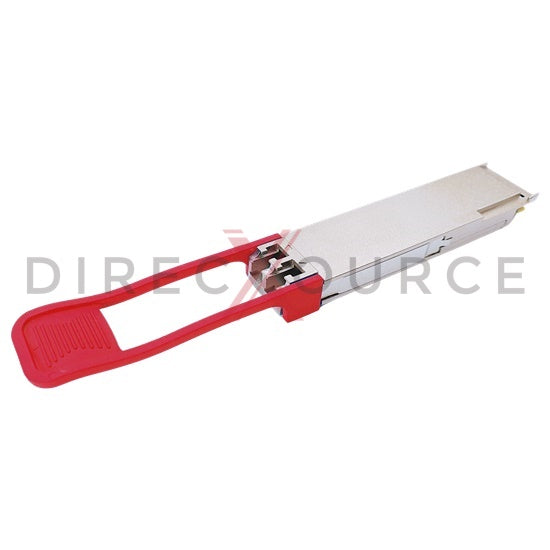

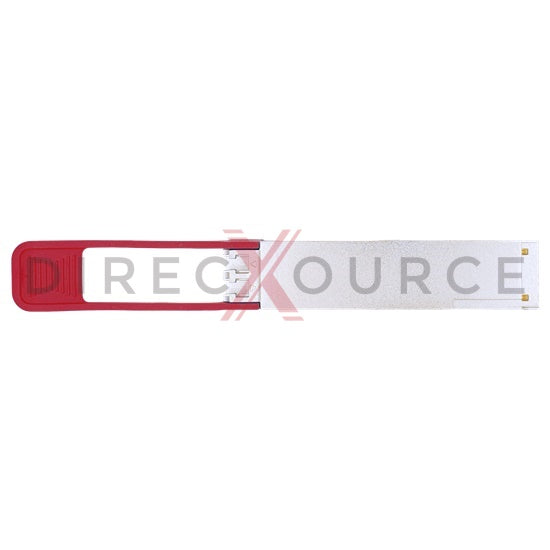

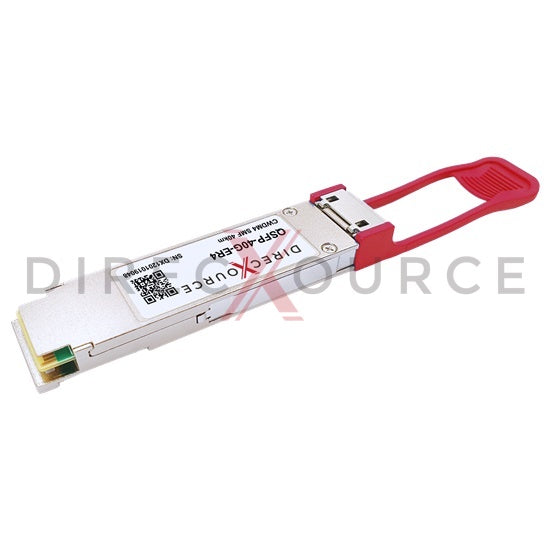

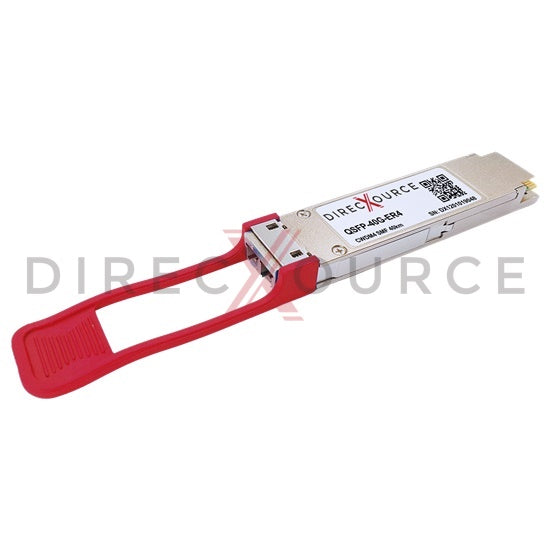

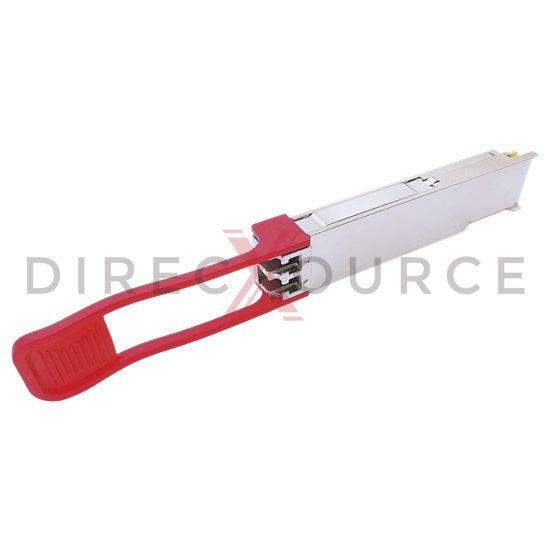

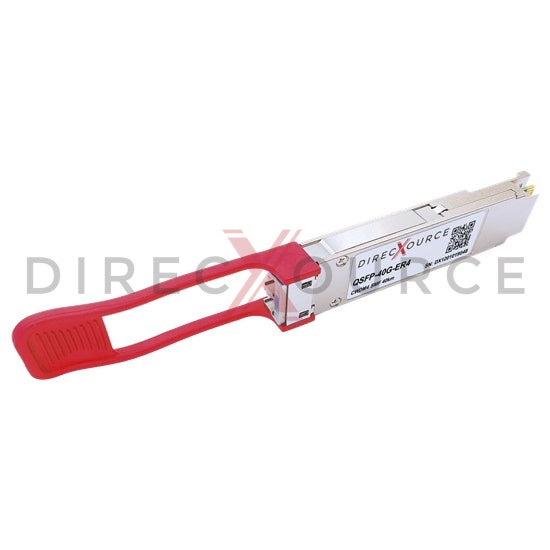

Cisco QSFP-40G-ER4 Compatible 40GBASE-ER4 QSFP+ 1310nm 40km SMF LC DOM Optical Transceiver Module
Cisco QSFP-40G-ER4 compatible optical transceiver is a parallel 41.2Gbps Quad Small Form-factor Pluggable QSFP+ module for use in 40GBASE Ethernet. QSFP+ ER4 provides 40Gb/s throughput up to 40km over single-mode fiber (SMF) using 1271nm, 1291nm, 1311nm, 1331nm wavelength. This transceiver is fully compliant with QSFP+ Multi-Source Agreement (MSA), IEEE 802.3bm 40GBASE-ER4 and XLPPI standard. Its electrical interface is MSA compliant 38-pin edge type connector and the optical interface is Duplex LC connector. The full-duplex QSFP+ transceiver implements 4 independent 10.3125 Gbps transmit and receive channels in each wavelength for an aggregate 40 Gbps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our modules are factory pre-programmed for compatibility, perform identically to original Cisco QSFP-40G-ER4 transceivers.
Feature
- Equivalent to Cisco QSFP-40G-ER4 in function
- Hot pluggable QSFP+ form factor
- Aggregate data rate up to 41.2Gbps
- 4 channels 1310nm CWDM DML transmitter
- 4 channels APD photo receiver
- Duplex LC optical connector
- Link distances up to SMF 40km
- 4x 10.3125Gbps XLPPI electrical interface
- Built-in digital diagnostic via 2-wire interface
- Single 3.3V power supply voltage
- Power consumption < 3.5W
- Ambient temperature range 0 to 70°C for commercial application
- Compliant with SFF-8436, SFF-8635, SFF-8661, SFF-8679, SFF-8636
- Compliant with IEEE 802.3bm 40GBASE-ER4
- Compliant with RoHS, REACH, CE, FCC standards
Application
- 40G Ethernet
- Data Center
- OTU3
Specification
Cisco Compatible P/N | QSFP-40G-ER4 | Form Factor | QSFP+ |
Max Data Rate | 41.2Gbps | Max Distance | 40km (24.9 miles) |
Wavelength | 1271nm, 1291nm, 1311nm, 1331nm | Connector | Duplex LC |
DDM/DOM | Support | Media | SMF |
Transmitter Type | 4x CWDM DML | Receiver Type | APD |
Transmitter Power | -2.7 to 4.5dBm | Receiver Sensitivity | < -21.2dBm |
Extinction Ratio | 5.5dB | Receiver Overload | -4.5dBm |
Transmit and Dispersion Penalty | 2.6dB | Power Budget | 18.5dB |
OE Packaging | Box Packaging | Modulation Format | NRZ |
Power Consumption | 3.5W | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
