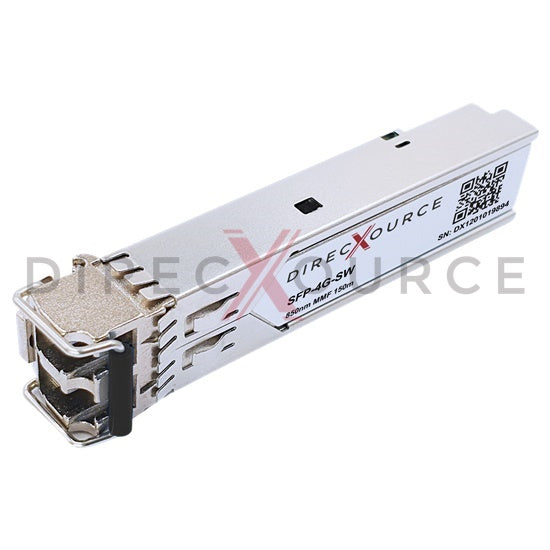

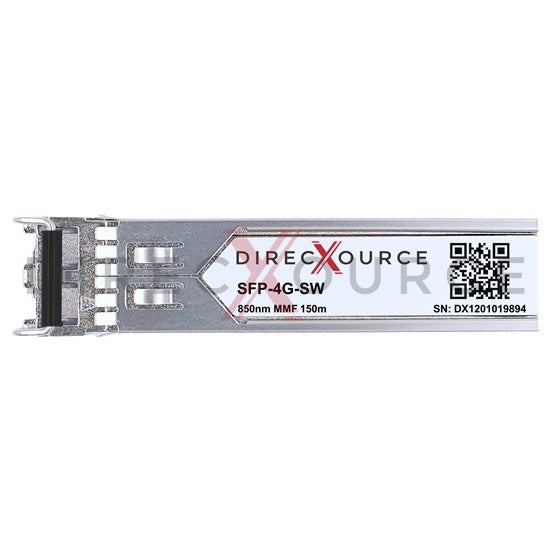

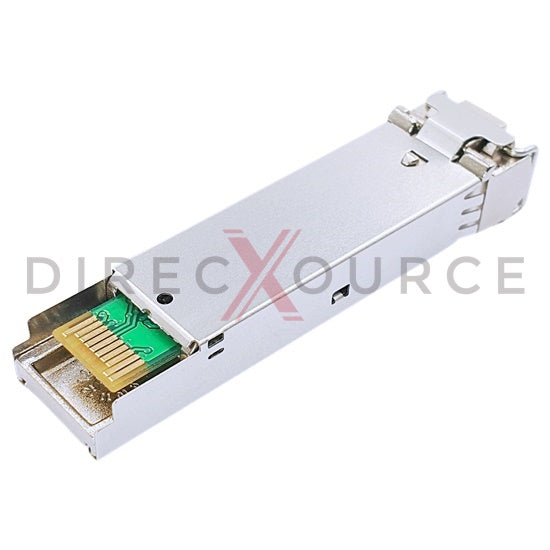

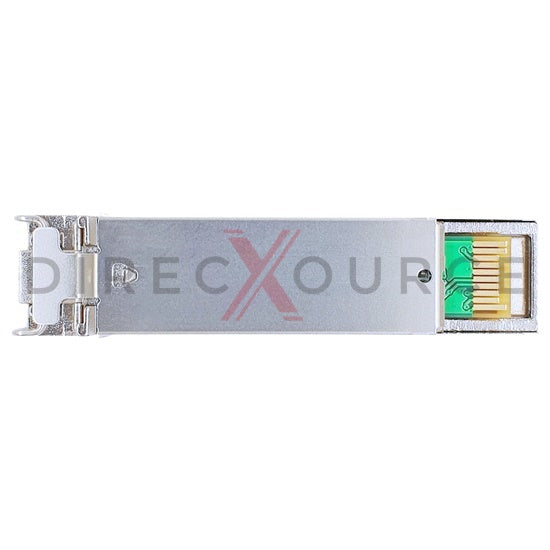

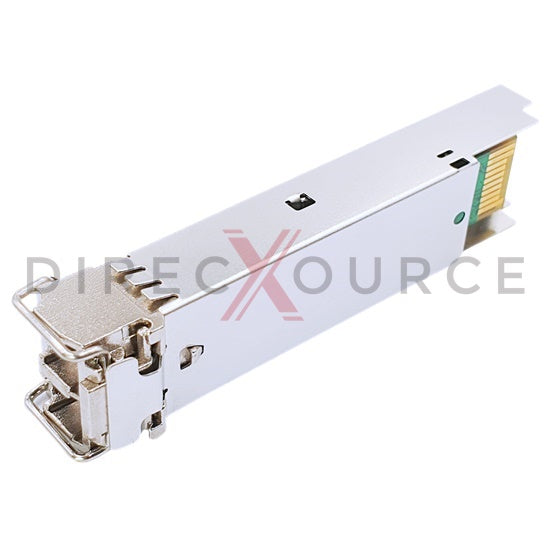

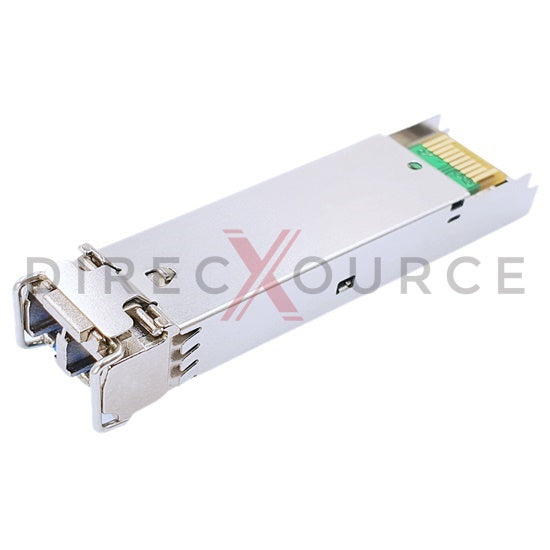

Avago AFBR-57R5AP Compatible 4G Fibre Channel SFP 850nm 150m MMF LC DOM Optical Transceiver Module


Avago AFBR-57R5AP compatible optical transceiver is a dual fiber 4.25Gbps Small Form-factor Pluggable SFP module for use in 4G Fibre Channel Network. SFP 4G-SW provides 4Gb/s throughput up to 150 meters over OM2 multi-mode fiber (MMF) using 850nm wavelength. This transceiver is fully compliant with SFP Multi-Source Agreement (MSA) and FCIA FC-PI-4 400-M5-SN-I standard. Its electrical interface is MSA compliant 20-pin edge type connector and the optical interface is Duplex LC connector. The full-duplex SFP transceiver features highly reliable VCSEL transmitter and PIN photo detector to offer high performance interconnection at 4 Gbps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our modules are factory pre-programmed for compatibility, perform identically to original Avago AFBR-57R5AP transceivers.


Feature

  • Equivalent to Avago AFBR-57R5AP in function
  • Hot pluggable SFP form factor
  • Data rate up to 4.25Gbps
  • 850nm VCSEL transmitter
  • PIN photo receiver
  • Duplex LC optical connector
  • Link distances up to MMF 150m
  • Built-in digital diagnostic via 2-wire interface
  • Single 3.3V power supply voltage
  • Power consumption < 1W
  • Ambient temperature range 0 to 70°C for commercial application
  • Compliant with INF-8074i, SFF-8472
  • Compliant with FCIA FC-PI-4 400-M5-SN-I
  • Compliant with RoHS, REACH, CE, FCC standards

Application

  • 4G Fibre Channel
  • 2G Fibre Channel

Specification

Avago Compatible P/N AFBR-57R5AP Form Factor SFP
Max Data Rate 4.25Gbps Max Distance 150m (492ft)
Wavelength 850nm Connector Duplex LC
DDM/DOM Support Media MMF
Transmitter Type VCSEL Receiver Type PIN
Transmitter Power -9 to 0dBm Receiver Sensitivity < -20dBm
Extinction Ratio 9dB Receiver Overload 0dBm
Modulation Format NRZ Power Budget 11dB
Power Consumption 1W Commercial Temperature Range 0 to 70°C (32 to 158°F)
