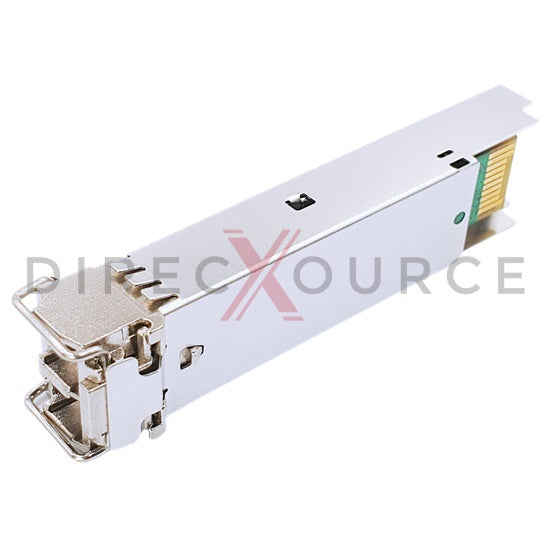

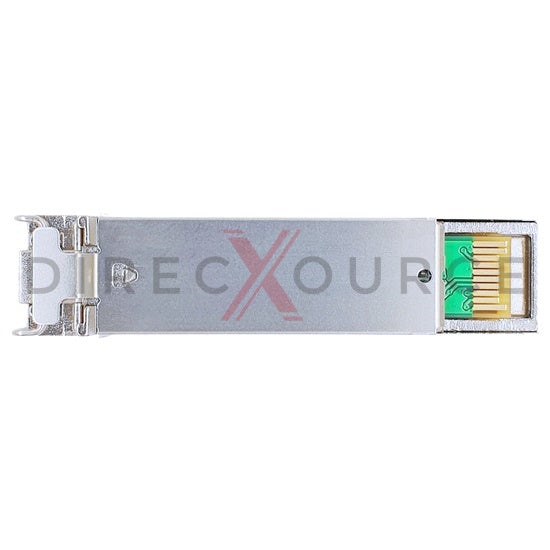

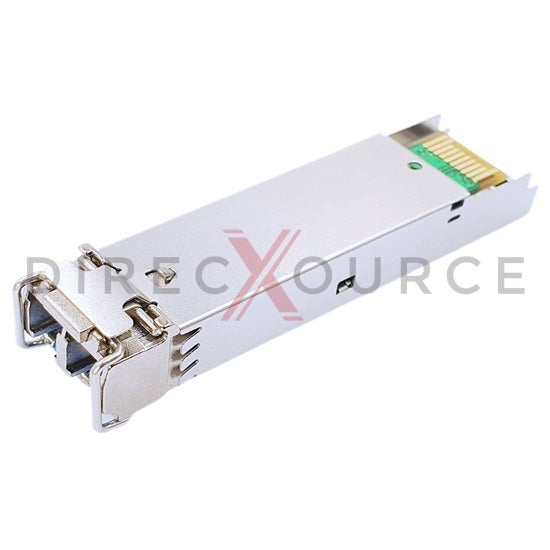

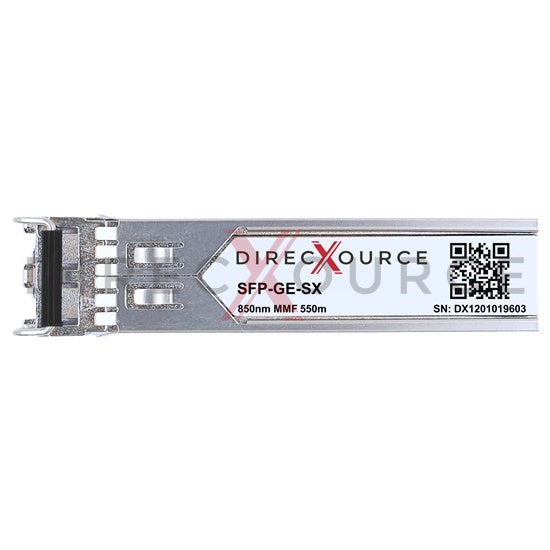

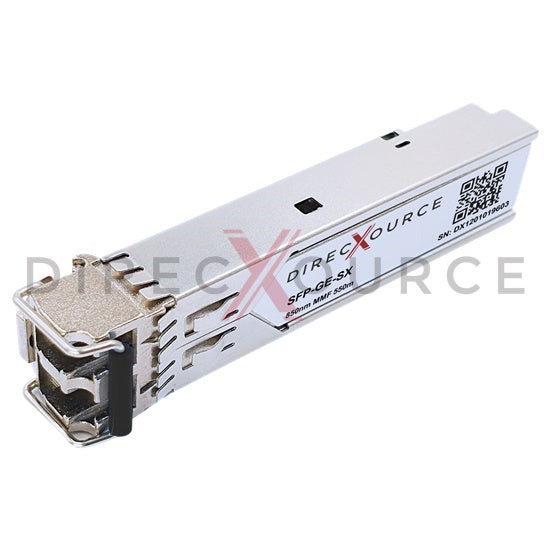

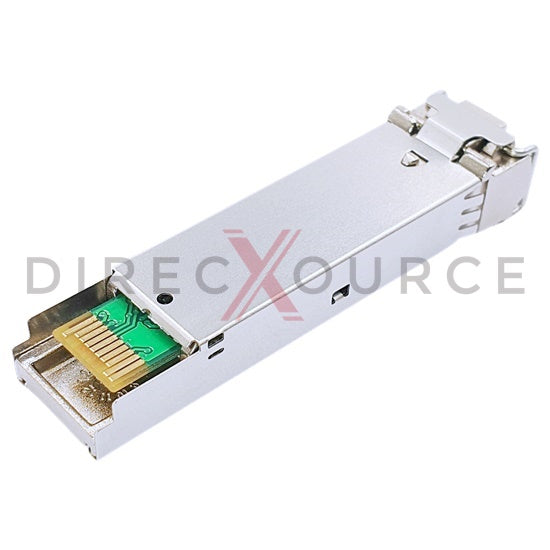

Avago AFBR-5701LZ Compatible 1000BASE-SX SFP 850nm 550m MMF LC DOM Optical Transceiver Module
Avago AFBR-5701LZ compatible optical transceiver is a dual fiber 1000Mbps Small Form-factor Pluggable SFP module for use in 1000BASE Ethernet. SFP SX provides 1Gb/s throughput up to 550 meters over OM2 multi-mode fiber (MMF) using 850nm wavelength. This transceiver is fully compliant with SFP Multi-Source Agreement (MSA), IEEE 802.3z 1000BASE-SX and SERDES standard. Its electrical interface is MSA compliant 20-pin edge type connector and the optical interface is Duplex LC connector. The full-duplex SFP transceiver features highly reliable VCSEL transmitter and PIN photo detector to offer high performance interconnection at 1 Gbps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our modules are factory pre-programmed for compatibility, perform identically to original Avago AFBR-5701LZ transceivers.
Feature
- Equivalent to Avago AFBR-5701LZ in function
- Hot pluggable SFP form factor
- Data rate up to 1000Mbps
- 850nm VCSEL transmitter
- PIN photo receiver
- Duplex LC optical connector
- Link distances up to OM2 550m
- Built-in digital diagnostic via 2-wire interface
- Single 3.3V power supply voltage
- Power consumption < 0.6W
- Ambient temperature range 0 to 70°C for commercial application
- Compliant with INF-8074i, SFF-8472
- Compliant with IEEE 802.3z 1000BASE-SX
- Compliant with RoHS, REACH, CE, FCC standards
Application
- Gigabit Ethernet
Specification
Avago Compatible P/N | AFBR-5701LZ | Form Factor | SFP |
Max Data Rate | 1000Mbps | Max Distance | 550m (1804ft) @OM2 |
Wavelength | 850nm | Connector | Duplex LC |
DDM/DOM | Support | Media | MMF |
Transmitter Type | VCSEL | Receiver Type | PIN |
Transmitter Power | -9.5 to -3dBm | Receiver Sensitivity | < -17dBm |
Extinction Ratio | 9dB | Receiver Overload | -3dBm |
Modulation Format | NRZ | Power Budget | 7.5dB |
Power Consumption | 0.6W | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
