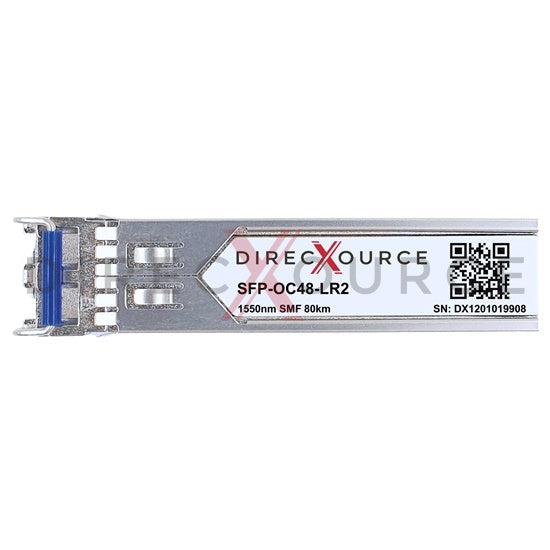

Alcatel-Lucent 3HE00410AA Compatible OC-48/STM-16 LR-2 SFP 1550nm 80km SMF LC DOM Optical Transceiver Module

Original price $154.00
Current price $92.00
SKU

Alcatel-Lucent 3HE00410AA Compatible OC-48/STM-16 LR-2 SFP 1550nm 80km SMF LC DOM Optical Transceiver Module


Alcatel-Lucent 3HE00410AA compatible optical transceiver is a dual fiber 2.67Gbps Small Form-factor Pluggable SFP module for use in OC48/STM-16 SONET/SDH Network. SFP OC48-LR2 provides 2.5Gb/s throughput up to 80km over single-mode fiber (SMF) using 1550nm wavelength. This transceiver is fully compliant with SFP Multi-Source Agreement (MSA) and SONET OC-48 LR-2 standard. Its electrical interface is MSA compliant 20-pin edge type connector and the optical interface is Duplex LC connector. The full-duplex SFP transceiver features highly reliable DFB transmitter and APD photo detector to offer high performance interconnection at 2.5 Gbps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our modules are factory pre-programmed for compatibility, perform identically to original Alcatel-Lucent 3HE00410AA transceivers.


Feature

  • Equivalent to Alcatel-Lucent 3HE00410AA in function
  • Hot pluggable SFP form factor
  • Data rate up to 2.67Gbps
  • 1550nm DFB transmitter
  • APD photo receiver
  • Duplex LC optical connector
  • Link distances up to SMF 80km
  • Built-in digital diagnostic via 2-wire interface
  • Single 3.3V power supply voltage
  • Power consumption < 0.7W
  • Ambient temperature range 0 to 70°C for commercial application
  • Compliant with INF-8074i, SFF-8472
  • Compliant with SONET OC-48 LR-2
  • Compliant with SDH STM L-16.2
  • Compliant with RoHS, REACH, CE, FCC standards

Application

  • SONET OC-48 Network
  • SDH STM-16 Network

Specification

Alcatel-Lucent Compatible P/N 3HE00410AA Form Factor SFP
Max Data Rate 2.67Gbps Max Distance 80km (49.7 miles)
Wavelength 1550nm Connector Duplex LC
DDM/DOM Support Media SMF
Transmitter Type DFB Receiver Type APD
Transmitter Power -2 to 3dBm Receiver Sensitivity < -28dBm
Extinction Ratio 8.2dB Receiver Overload -9dBm
Modulation Format NRZ Power Budget 26dB
Power Consumption 0.7W Commercial Temperature Range 0 to 70°C (32 to 158°F)
