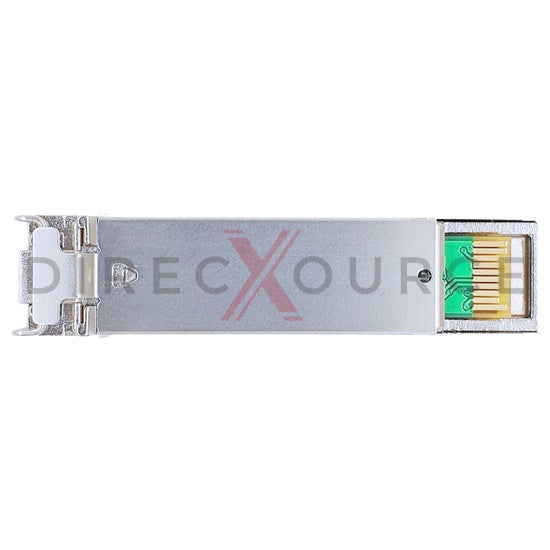

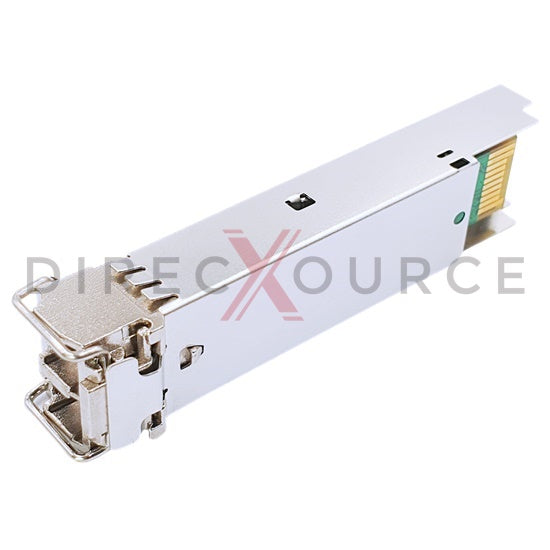

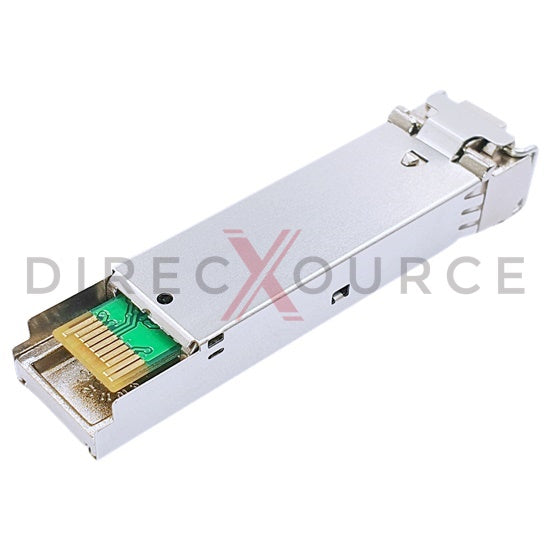

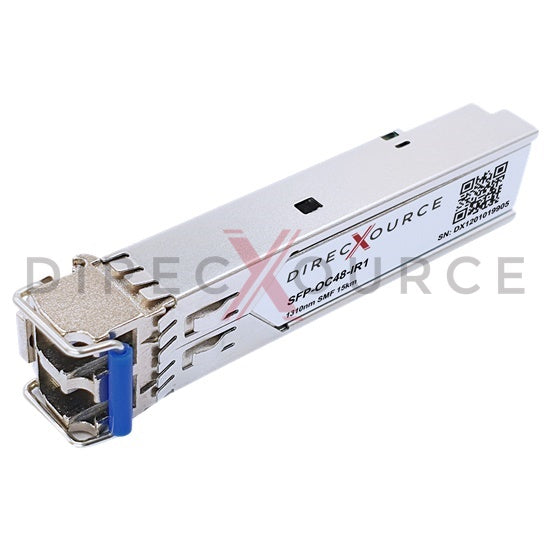

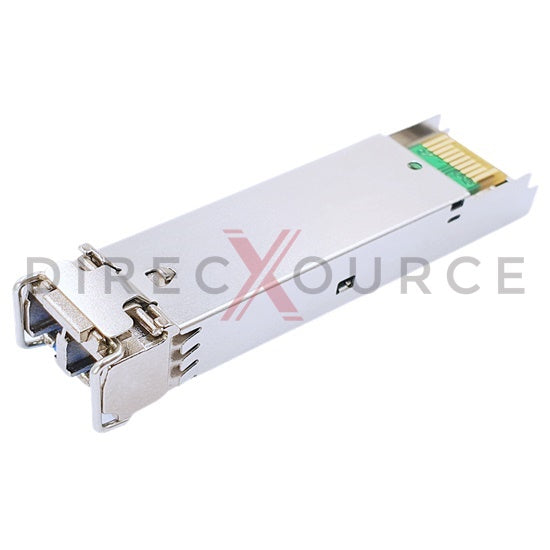

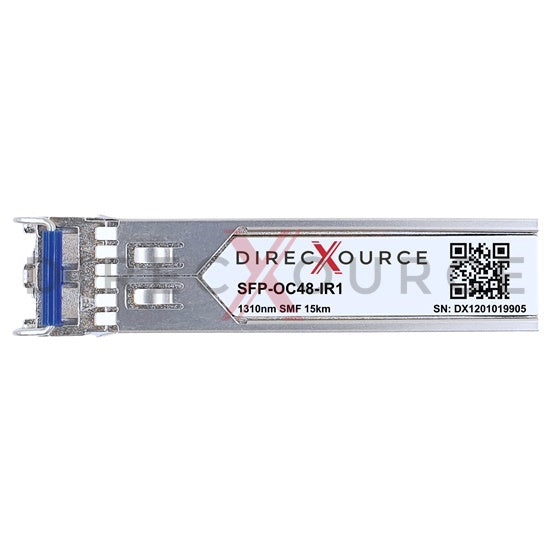

Alcatel-Lucent 3HE00046AA Compatible OC-48/STM-16 IR-1 SFP 1310nm 15km SMF LC DOM Optical Transceiver Module
Alcatel-Lucent 3HE00046AA compatible optical transceiver is a dual fiber 2.67Gbps Small Form-factor Pluggable SFP module for use in OC48/STM-16 SONET/SDH Network. SFP OC48-IR1 provides 2.5Gb/s throughput up to 15km over single-mode fiber (SMF) using 1310nm wavelength. This transceiver is fully compliant with SFP Multi-Source Agreement (MSA) and SONET OC-48 IR-1 standard. Its electrical interface is MSA compliant 20-pin edge type connector and the optical interface is Duplex LC connector. The full-duplex SFP transceiver features highly reliable DFB transmitter and PIN photo detector to offer high performance interconnection at 2.5 Gbps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our modules are factory pre-programmed for compatibility, perform identically to original Alcatel-Lucent 3HE00046AA transceivers.
Feature
- Equivalent to Alcatel-Lucent 3HE00046AA in function
- Hot pluggable SFP form factor
- Data rate up to 2.67Gbps
- 1310nm DFB transmitter
- PIN photo receiver
- Duplex LC optical connector
- Link distances up to SMF 15km
- Built-in digital diagnostic via 2-wire interface
- Single 3.3V power supply voltage
- Power consumption < 0.8W
- Ambient temperature range 0 to 70°C for commercial application
- Compliant with INF-8074i, SFF-8472
- Compliant with SONET OC-48 IR-1
- Compliant with SDH STM S-16.1
- Compliant with RoHS, REACH, CE, FCC standards
Application
- SONET OC-48 Network
- SDH STM-16 Network
Specification
Alcatel-Lucent Compatible P/N | 3HE00046AA | Form Factor | SFP |
Max Data Rate | 2.67Gbps | Max Distance | 15km (9.3 miles) |
Wavelength | 1310nm | Connector | Duplex LC |
DDM/DOM | Support | Media | SMF |
Transmitter Type | DFB | Receiver Type | PIN |
Transmitter Power | -5 to 0dBm | Receiver Sensitivity | < -18dBm |
Extinction Ratio | 8.2dB | Receiver Overload | 0dBm |
Modulation Format | NRZ | Power Budget | 13dB |
Power Consumption | 0.8W | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
