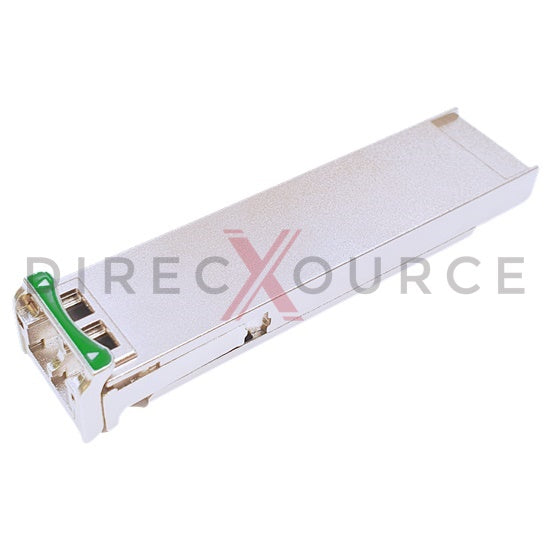

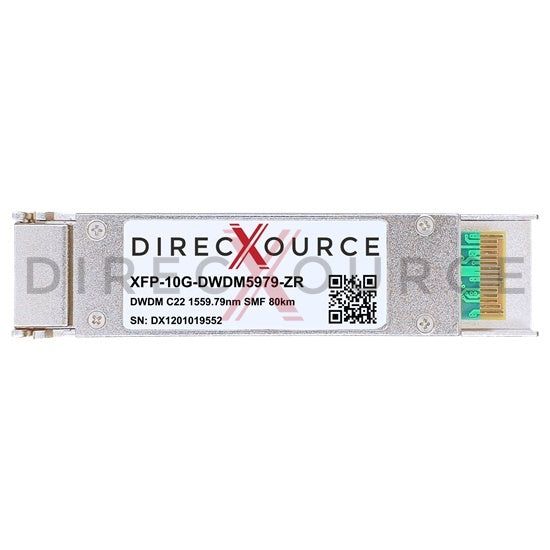

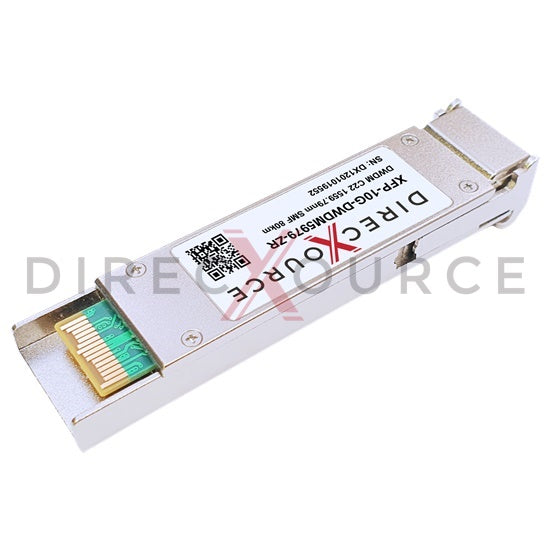

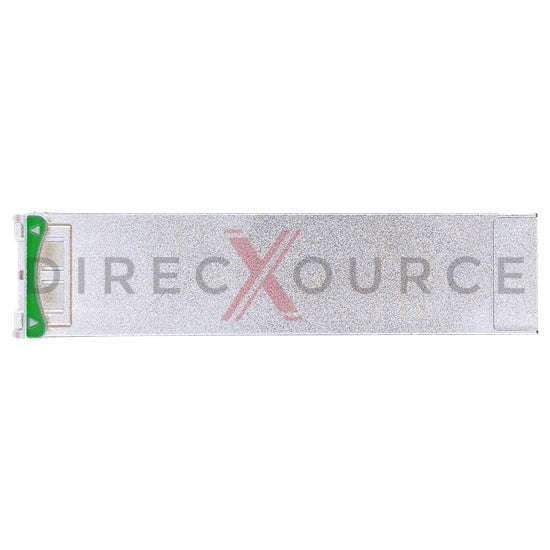

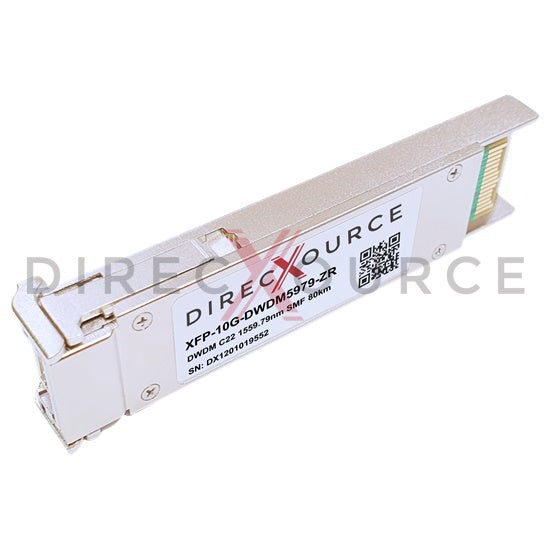

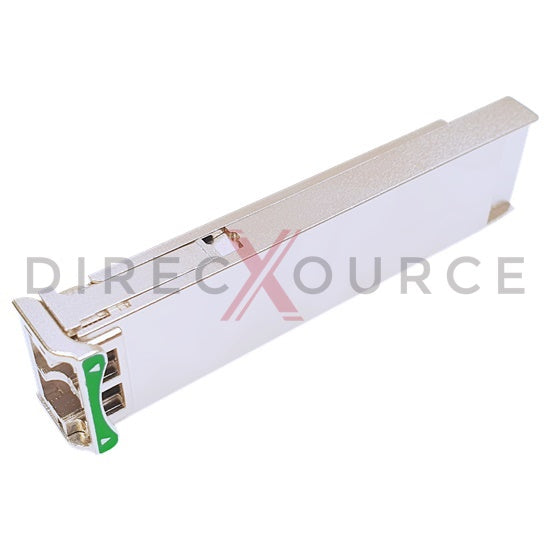

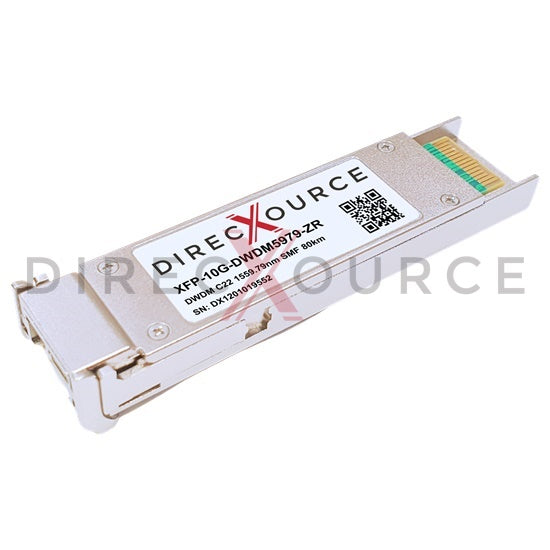

Generic Compatible XFP-10G-DWDM5979-ZR 10GBASE-DWDM XFP 100GHz C22 1559.79nm 80km SMF LC DOM Optical Transceiver Module
direcXource's XFP-10G-DWDM5979-ZR optical transceiver is a dual fiber 10.3Gbps Form-factor Pluggable XFP DWDM module for use in 10GBASE Ethernet. XFP DWDM5979-ZR provides 10Gb/s throughput up to 80km over single-mode fiber (SMF) using 1559.79nm wavelength. This transceiver is fully compliant with XFP Multi-Source Agreement (MSA), IEEE 802.3 10GBASE-DWDM and XFI standard. Its electrical interface is MSA compliant 30-pin edge type connector and the optical interface is Duplex LC connector. The full-duplex XFP transceiver features highly reliable DWDM EML transmitter and APD photo detector to offer high performance interconnection at 10 Gbps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our modules are factory pre-programmed for compatibility, perform identically to generic MSA transceivers.
Feature
- Hot pluggable XFP form factor
- Data rate up to 10.3Gbps
- C22 1559.79nm DWDM EML transmitter
- APD photo receiver
- Duplex LC optical connector
- Link distances up to SMF 80km
- Built-in digital diagnostic via 2-wire interface
- Single 3.3V power supply voltage
- Power consumption < 3.5W
- Ambient temperature range 0 to 70°C for commercial application
- Compliant with INF-8077i
- Compliant with IEEE 802.3 10GBASE-DWDM
- Compliant with RoHS, REACH, CE, FCC standards
Application
- 10G Ethernet
- 10G SONET/SDH
Specification
Part Number | XFP-10G-DWDM5979-ZR | Form Factor | XFP |
Max Data Rate | 10.3Gbps | Max Distance | 80km (49.7 miles) |
Wavelength | 1559.79nm | Connector | Duplex LC |
DDM/DOM | Support | Media | SMF |
Transmitter Type | DWDM EML | Receiver Type | APD |
Transmitter Power | -1 to 4dBm | Receiver Sensitivity | < -24dBm |
Extinction Ratio | 9dB | Receiver Overload | -7dBm |
Transmit and Dispersion Penalty | 3dB | Power Budget | 23dB |
OE Packaging | Box Packaging | Modulation Format | NRZ |
Power Consumption | 3.5W | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
