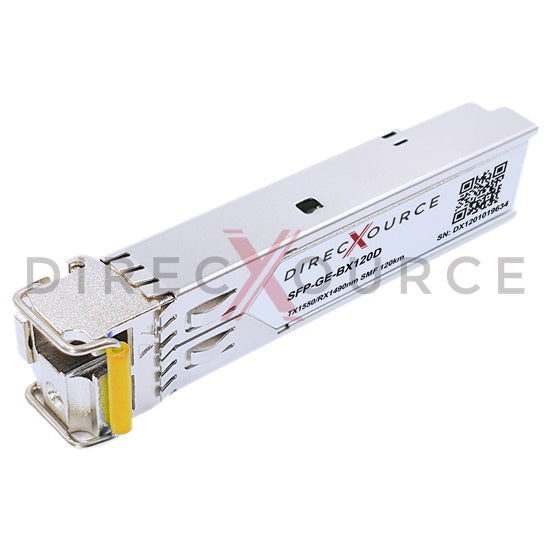

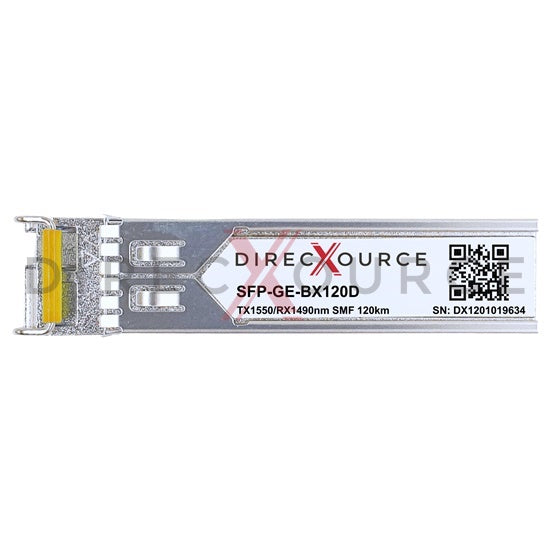

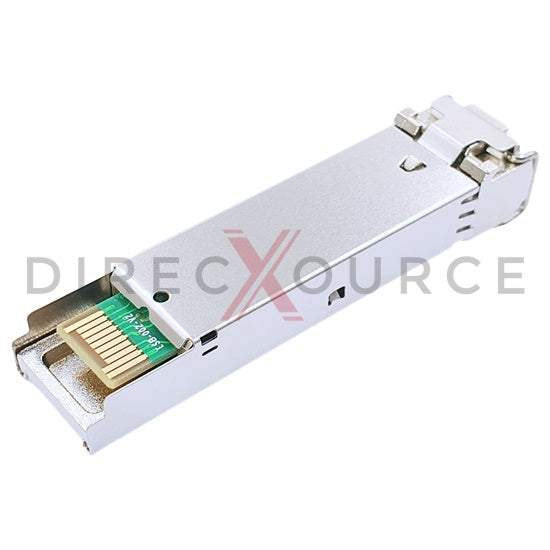

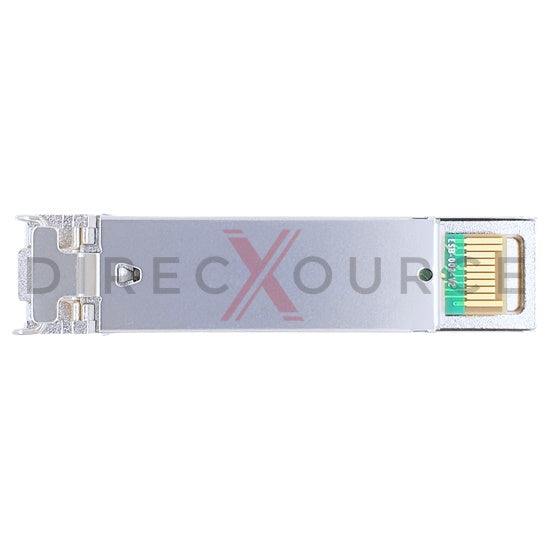

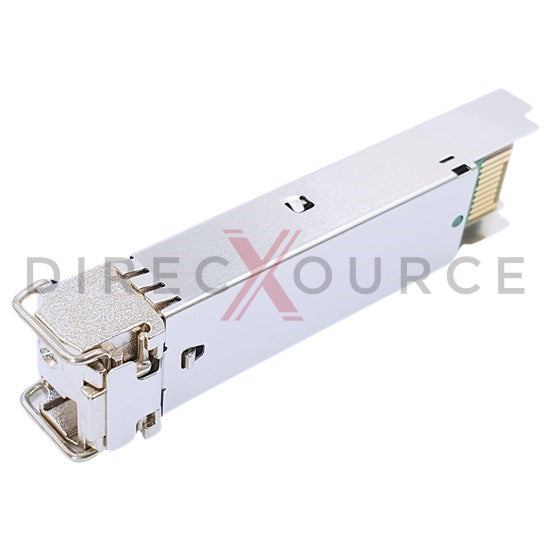

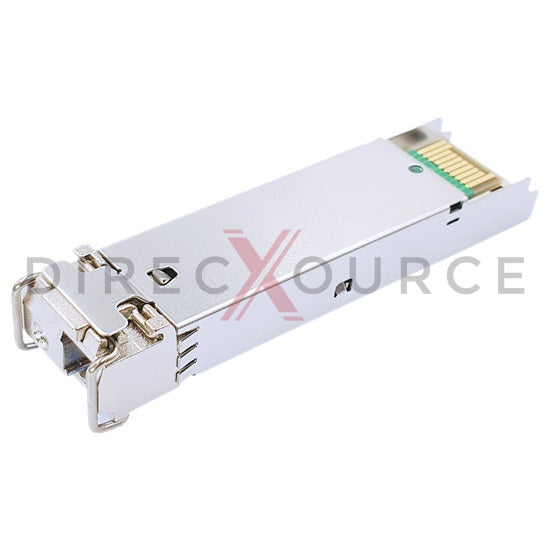

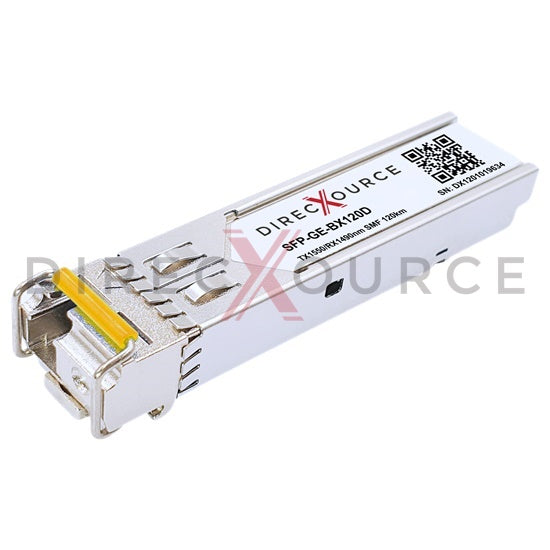

Generic Compatible SFP-GE-BX120D 1000BASE-BX BIDI SFP TX1550nm/RX1490nm 120km SMF LC DOM Optical Transceiver Module
direcXource's SFP-GE-BX120D optical transceiver is a single fiber bidirection 1000Mbps Small Form-factor Pluggable SFP BIDI module for use in 1000BASE Ethernet. SFP BX120D provides 1Gb/s throughput up to 120km over single-mode fiber (SMF) using 1550nm in transmitter side and 1490nm in receiver side. This transceiver is fully compliant with SFP Multi-Source Agreement (MSA), IEEE 802.3 1000BASE-BX120 and SERDES standard. Its electrical interface is MSA compliant 20-pin edge type connector and the optical interface is Simplex LC connector. The full-duplex SFP transceiver features highly reliable DFB transmitter and APD photo detector to offer high performance interconnection at 1 Gbps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our modules are factory pre-programmed for compatibility, perform identically to generic MSA transceivers.
Feature
- Hot pluggable SFP form factor
- Data rate up to 1000Mbps
- 1550nm DFB transmitter
- APD photo receiver
- Simplex LC optical connector
- Link distances up to SMF 120km
- Built-in digital diagnostic via 2-wire interface
- Single 3.3V power supply voltage
- Power consumption < 1W
- Ambient temperature range 0 to 70°C for commercial application
- Compliant with INF-8074i, SFF-8472
- Compliant with IEEE 802.3 1000BASE-BX120
- Compliant with RoHS, REACH, CE, FCC standards
Application
- Gigabit Ethernet
Specification
Part Number | SFP-GE-BX120D | Form Factor | SFP |
Max Data Rate | 1000Mbps | Max Distance | 120km (74.6 miles) |
Wavelength | TX1550nm/RX1490nm | Connector | Simplex LC |
DDM/DOM | Support | Media | SMF |
Transmitter Type | DFB | Receiver Type | APD |
Transmitter Power | 0 to 5dBm | Receiver Sensitivity | < -31dBm |
Extinction Ratio | 9dB | Receiver Overload | -8dBm |
Modulation Format | NRZ | Power Budget | 31dB |
Power Consumption | 1W | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
