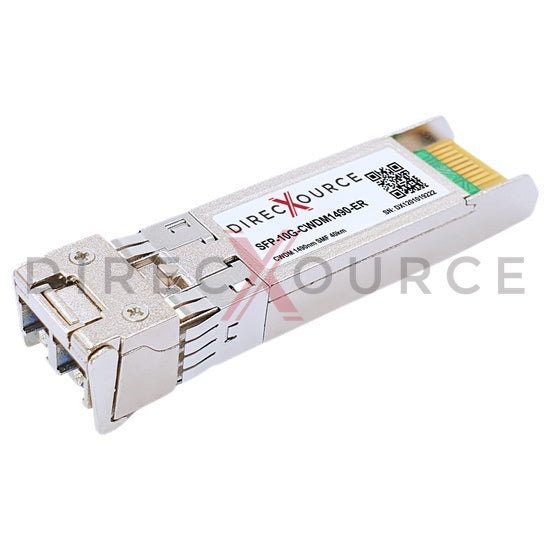

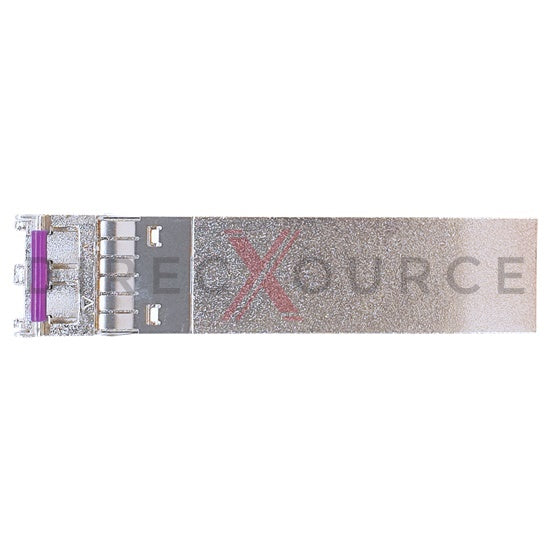

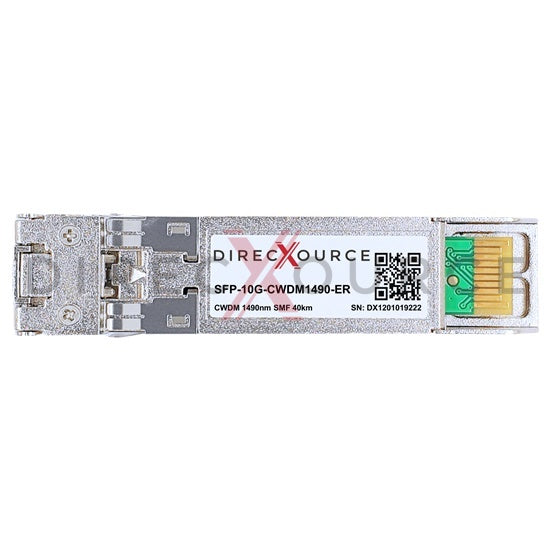

Generic Compatible SFP-10G-CWDM1490-ER 10GBASE-CWDM SFP+ 1490nm 40km SMF LC DOM Optical Transceiver Module
direcXource's SFP-10G-CWDM1490-ER optical transceiver is a dual fiber 10.3Gbps Small Form-factor Pluggable SFP+ CWDM module for use in 10GBASE Ethernet. SFP+ CWDM1490-ER provides 10Gb/s throughput up to 40km over single-mode fiber (SMF) using 1490nm wavelength. This transceiver is fully compliant with SFP+ Multi-Source Agreement (MSA), IEEE 802.3 10GBASE-CWDM and SFI standard. Its electrical interface is MSA compliant 20-pin edge type connector and the optical interface is Duplex LC connector. The full-duplex SFP+ transceiver features highly reliable CWDM EML transmitter and PIN photo detector to offer high performance interconnection at 10 Gbps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our modules are factory pre-programmed for compatibility, perform identically to generic MSA transceivers.
Feature
- Hot pluggable SFP+ form factor
- Data rate up to 10.3Gbps
- 1490nm CWDM EML transmitter
- PIN photo receiver
- Duplex LC optical connector
- Link distances up to SMF 40km
- Built-in digital diagnostic via 2-wire interface
- Single 3.3V power supply voltage
- Power consumption < 1.5W
- Ambient temperature range 0 to 70°C for commercial application
- Compliant with SFF-8431, SFF-8432, SFF-8419, SFF-8472
- Compliant with IEEE 802.3 10GBASE-CWDM
- Compliant with RoHS, REACH, CE, FCC standards
Application
- 10G Ethernet
- 10G Fibre Channel
- 10G CPRI
- 10G CWDM Network
- 10G SONET/SDH
Specification
Part Number | SFP-10G-CWDM1490-ER | Form Factor | SFP+ |
Max Data Rate | 10.3Gbps | Max Distance | 40km (24.9 miles) |
Wavelength | 1490nm | Connector | Duplex LC |
DDM/DOM | Support | Media | SMF |
Transmitter Type | CWDM EML | Receiver Type | PIN |
Transmitter Power | -1 to 4dBm | Receiver Sensitivity | < -16dBm |
Extinction Ratio | 8.2dB | Receiver Overload | 0.5dBm |
Transmit and Dispersion Penalty | 2dB | Power Budget | 15dB |
OE Packaging | Box Packaging | Modulation Format | NRZ |
Power Consumption | 1.5W | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
