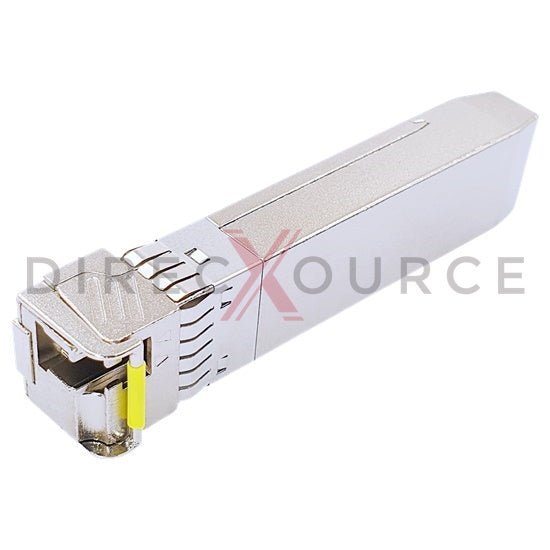

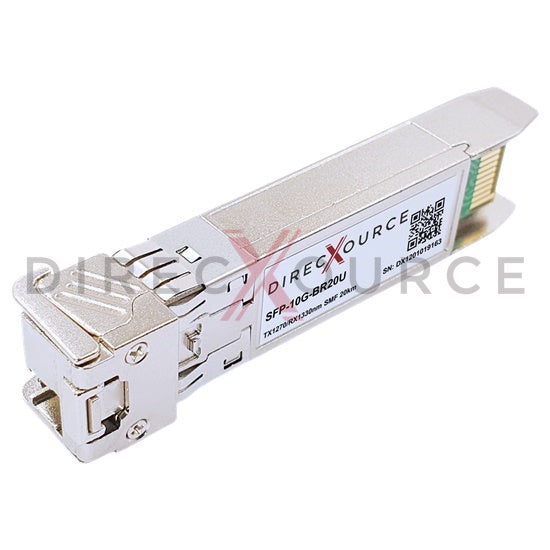

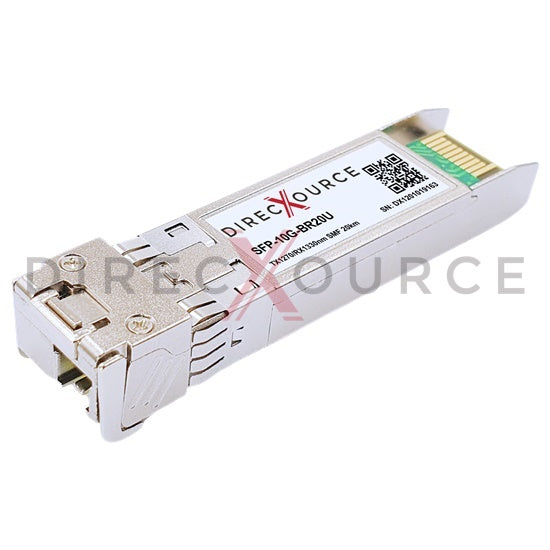

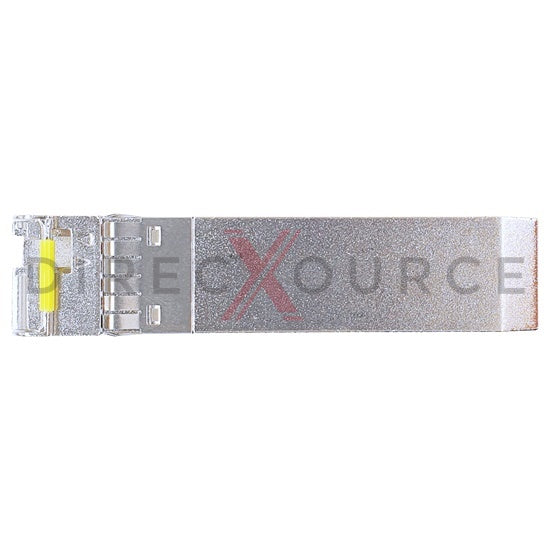

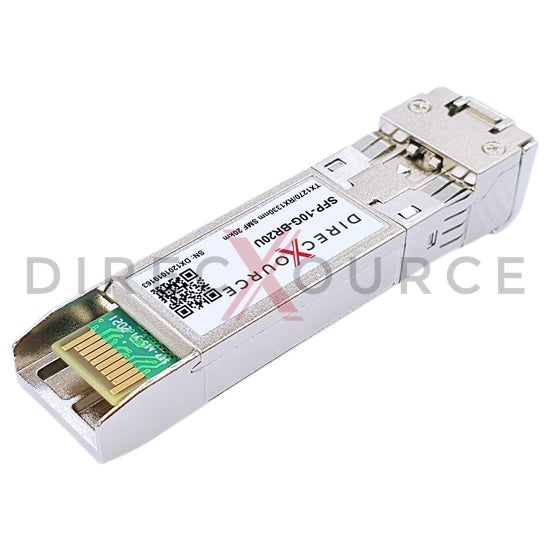

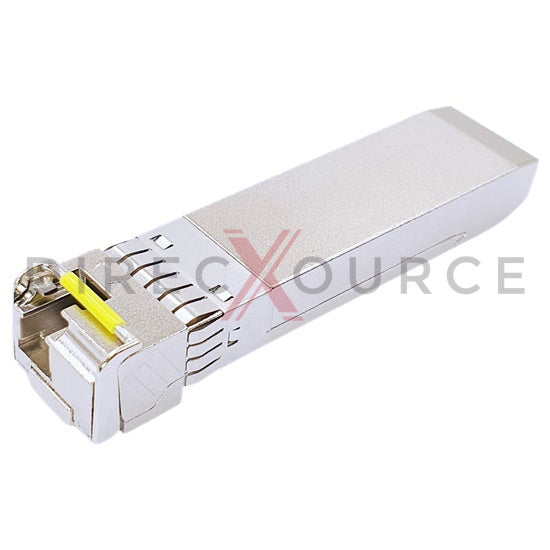

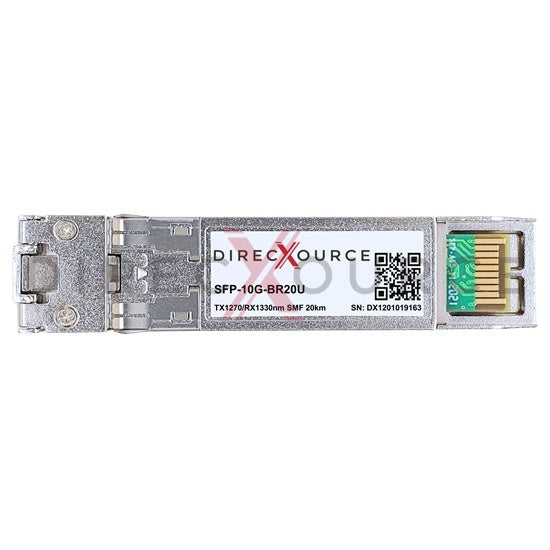

Generic Compatible SFP-10G-BR20U 10GBASE-BR BIDI SFP+ TX1270nm/RX1330nm 20km SMF LC DOM Optical Transceiver Module
direcXource's SFP-10G-BR20U optical transceiver is a single fiber bidirection 10.3Gbps Small Form-factor Pluggable SFP+ BIDI module for use in 10GBASE Ethernet. SFP+ BR20U provides 10Gb/s throughput up to 20km over single-mode fiber (SMF) using 1270nm in transmitter side and 1330nm in receiver side. This transceiver is fully compliant with SFP+ Multi-Source Agreement (MSA), IEEE 802.3 10GBASE-BR20 and SFI standard. Its electrical interface is MSA compliant 20-pin edge type connector and the optical interface is Simplex LC connector. The full-duplex SFP+ transceiver features highly reliable DFB transmitter and PIN photo detector to offer high performance interconnection at 10 Gbps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our modules are factory pre-programmed for compatibility, perform identically to generic MSA transceivers.
Feature
- Hot pluggable SFP+ form factor
- Data rate up to 10.3Gbps
- 1270nm DFB transmitter
- PIN photo receiver
- Simplex LC optical connector
- Link distances up to SMF 20km
- Built-in digital diagnostic via 2-wire interface
- Single 3.3V power supply voltage
- Power consumption < 1.5W
- Ambient temperature range 0 to 70°C for commercial application
- Compliant with SFF-8431, SFF-8432, SFF-8419, SFF-8472
- Compliant with IEEE 802.3 10GBASE-BR20
- Compliant with RoHS, REACH, CE, FCC standards
Application
- 10G Ethernet
- 10G Fibre Channel
- 10G CPRI
- 10G SONET/SDH
Specification
Part Number | SFP-10G-BR20U | Form Factor | SFP+ |
Max Data Rate | 10.3Gbps | Max Distance | 20km (12.4 miles) |
Wavelength | TX1270nm/RX1330nm | Connector | Simplex LC |
DDM/DOM | Support | Media | SMF |
Transmitter Type | DFB | Receiver Type | PIN |
Transmitter Power | -6 to 3dBm | Receiver Sensitivity | < -14.4dBm |
Extinction Ratio | 3.5dB | Receiver Overload | 0.5dBm |
Transmit and Dispersion Penalty | 3.2dB | Power Budget | 8.4dB |
OE Packaging | Coaxial Packaging | Modulation Format | NRZ |
Power Consumption | 1.5W | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
