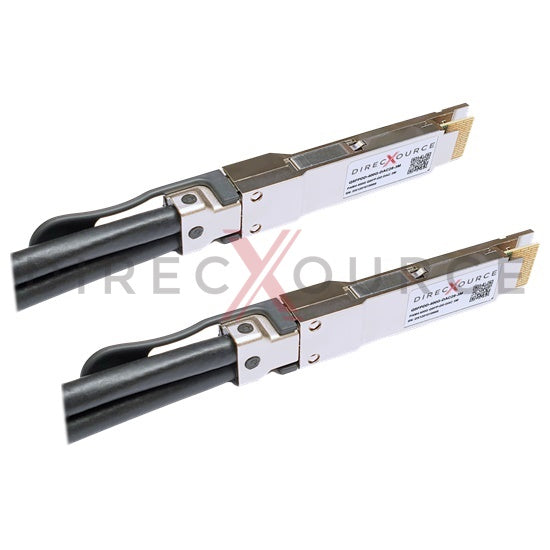

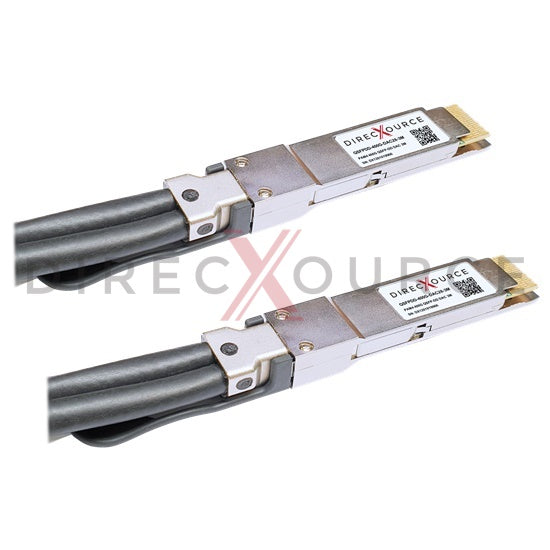

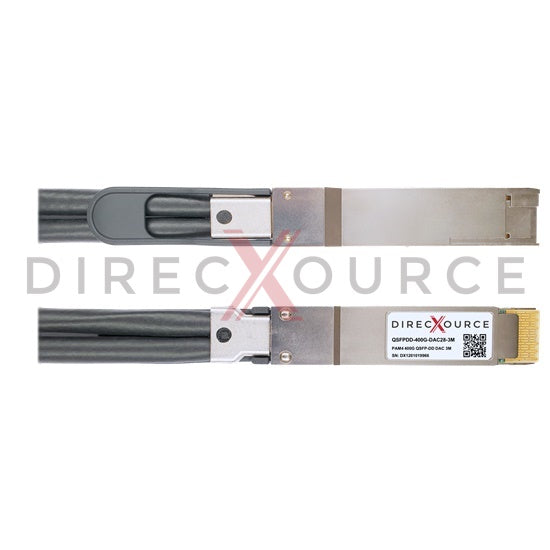

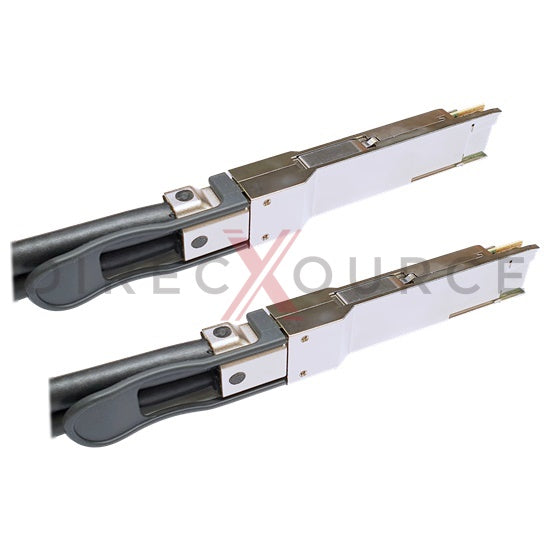

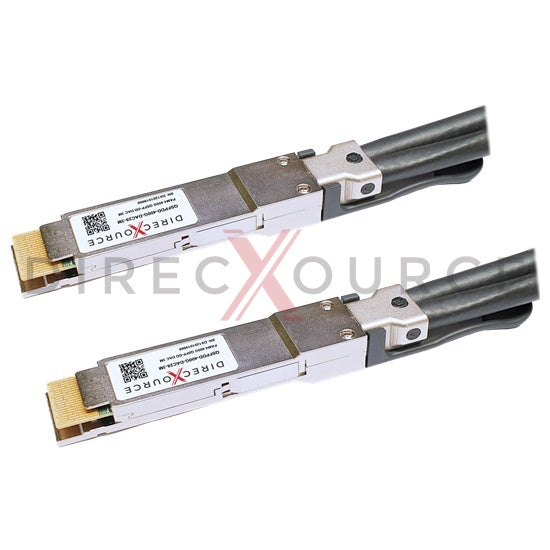

3m (9.84ft) Generic Compatible QSFPDD-400G-DAC28-3M 400G QSFP-DD PAM4 Passive Direct Attach Twinax Copper Cable
direcXource's QSFPDD-400G-DAC28-3M DAC is a passive 400Gbps QSFP-DD to QSFP-DD direct attach cable for use in 400GBASE Ethernet. QSFP-DD DAC provides 400Gb/s throughput for 3m interconnection with high speed twin-axial copper cable. Standard length options cover from 0.5 meters to 3 meters. The QSFP-DD DAC cable implements 8 independent 50 Gbps PAM4 transmit and receive signal channels in each differential pair for an aggregate 400 Gbps data rate. It also supports 8 channels 25 Gbps NRZ signals for 200 Gbps interconnection. This DAC is fully compliant with QSFP-DD Multi-Source Agreement (MSA), IEEE 802.3cd 400GBASE-CR8 and 400GAUI-8 standard. The twin-axial copper cable's wire gauge is 28AWG and pre-terminated with MSA compliant 76-pin edge type connectors. MSA memory map are accessible via 2-wire Interface (TWI/I2C). Our DACs are factory pre-programmed for compatibility, perform identically to generic MSA direct attach cables.
Feature
- Hot Pluggable QSFP-DD to QSFP-DD Topology
- Aggregate data rate up to 400Gbps
- Pre-terminated 28AWG twin-axial copper cable
- 8x 53.125Gbps PAM4 retimed 400GUAI-8 electrical interface
- Minimum bending radius 55mm
- MSA memory accessible via 2-wire interface
- Single 3.3V power supply voltage
- Extremely low power consumption near 0W
- Ambient temperature range 0 to 70°C for commercial application
- Compliant with QSFP-DD MSA
- Compliant with IEEE 802.3cd 400GBASE-CR8
- Compliant with IEEE 802.3bj 200GBASE-CR8
- Compliant with RoHS, REACH, CE, FCC standards
Application
- 400G Ethernet
- Data Center
Specification
Part Number | QSFPDD-400G-DAC28-3M | Topology | QSFP-DD to QSFP-DD |
Max Data Rate | 400Gbps | Cable Length | 3m (9.84ft) |
Cable Type | Twinax | Wire Gauge | 28AWG |
Jacket Meterial | OFNR (PVC) | Minimum Bend Radius | 55mm |
Host FEC | Support | Modulation Format | PAM4 |
Power Consumption | 0W | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
