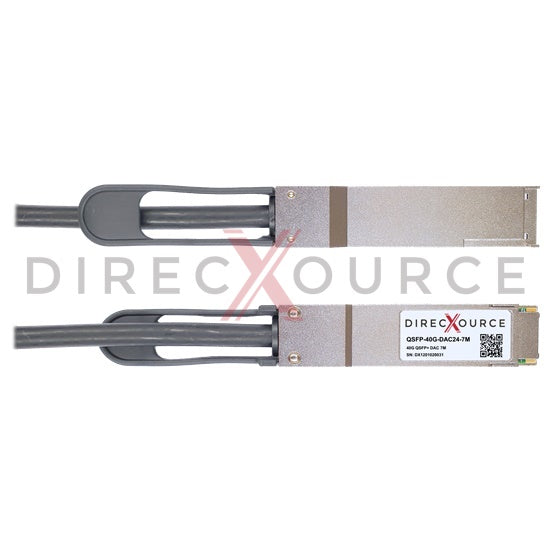

7m (22.97ft) Generic Compatible QSFP-40G-DAC24-7M 40G QSFP+ Passive Direct Attach Twinax Copper Cable
direcXource's QSFP-40G-DAC24-7M DAC is a passive 40Gbps QSFP+ to QSFP+ direct attach cable for use in 40GBASE Ethernet. QSFP+ DAC provides 40Gb/s throughput for 7m interconnection with high speed twin-axial copper cable. Standard length options cover from 0.5 meters to 7 meters. The QSFP+ DAC cable implements 4 independent 10 Gbps NRZ transmit and receive signal channels in each differential pair for an aggregate 40 Gbps data rate. This DAC is fully compliant with QSFP+ Multi-Source Agreement (MSA), IEEE 802.3ba 40GBASE-CR4 and XLPPI standard. The twin-axial copper cable's wire gauge is 24AWG and pre-terminated with MSA compliant 38-pin edge type connectors. MSA memory map are accessible via 2-wire Interface (TWI/I2C). Our DACs are factory pre-programmed for compatibility, perform identically to generic MSA direct attach cables.
Feature
- Hot Pluggable QSFP+ to QSFP+ Topology
- Aggregate data rate up to 40Gbps
- Pre-terminated 24AWG twin-axial copper cable
- 4x 10.3125Gbps XLPPI electrical interface
- Minimum bending radius 47.5mm
- MSA memory accessible via 2-wire interface
- Single 3.3V power supply voltage
- Extremely low power consumption near 0W
- Ambient temperature range 0 to 70°C for commercial application
- Compliant with SFF-8436, SFF-8635, SFF-8661, SFF-8679, SFF-8636
- Compliant with IEEE 802.3ba 40GBASE-CR4
- Compliant with RoHS, REACH, CE, FCC standards
Application
- 40G Ethernet
- Data Center
Specification
Part Number | QSFP-40G-DAC24-7M | Topology | QSFP+ to QSFP+ |
Max Data Rate | 40Gbps | Cable Length | 7m (22.97ft) |
Cable Type | Twinax | Wire Gauge | 24AWG |
Jacket Meterial | OFNR (PVC) | Minimum Bend Radius | 47.5mm |
Power Consumption | 0W | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
