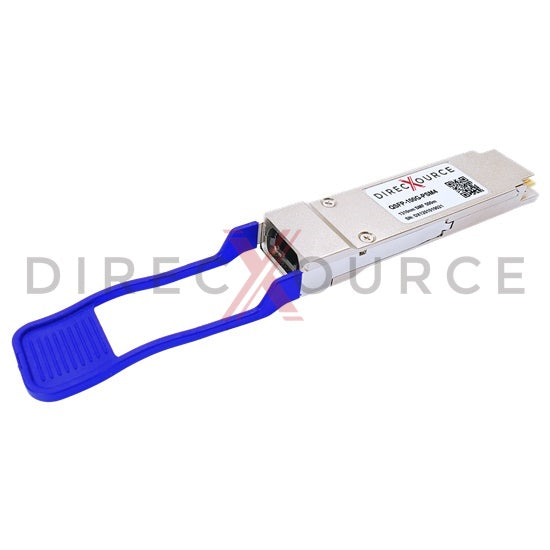

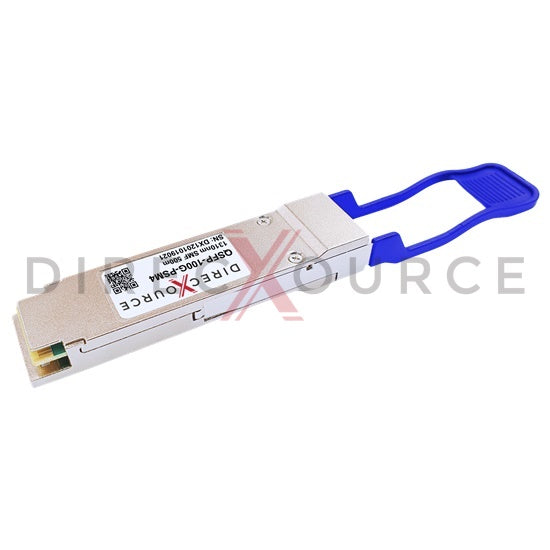

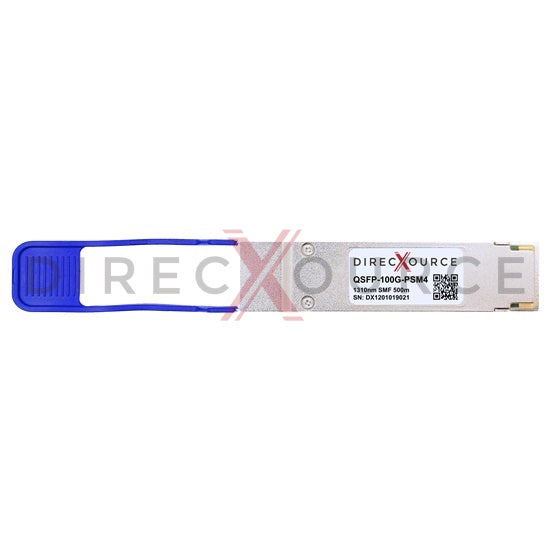

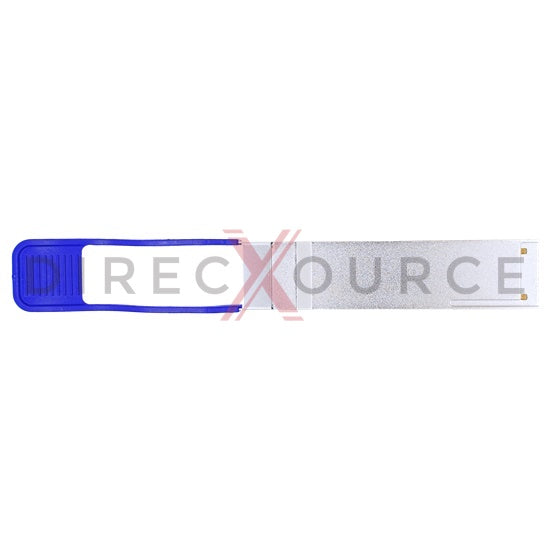

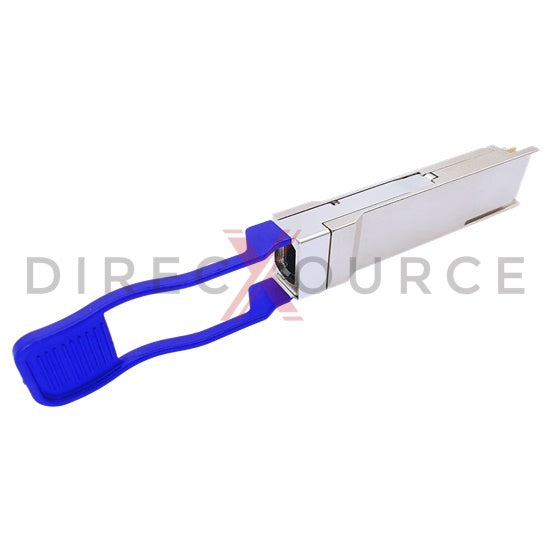

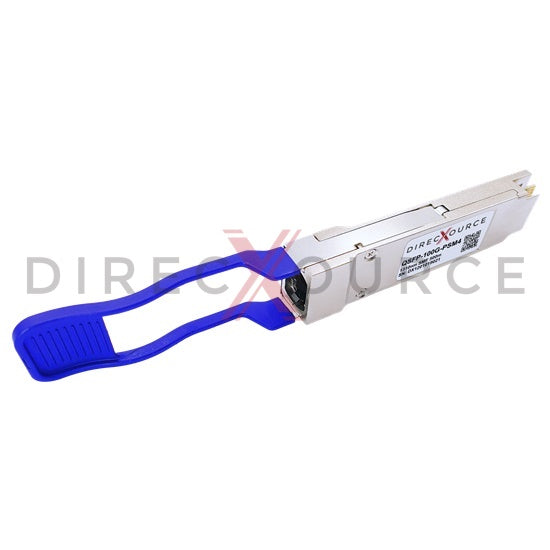

Generic Compatible QSFP-100G-PSM4 100GBASE-PSM4 QSFP28 1310nm 500m SMF MTP/MPO-12 DOM Optical Transceiver Module


direcXource's QSFP-100G-PSM4 optical transceiver is a parallel 103.1Gbps Quad Small Form-factor Pluggable QSFP28 module for use in 100GBASE Ethernet. QSFP28 PSM4 provides 100Gb/s throughput up to 500 meters over single-mode fiber (SMF) with host FEC using 1310nm wavelength. This transceiver is fully compliant with QSFP28 Multi-Source Agreement (MSA), IEEE 802.3 100GBASE-PSM4 and CAUI-4 standard. Its electrical interface is MSA compliant 38-pin edge type connector and the optical interface is MTP/MPO-12 APC connector. The full-duplex QSFP28 transceiver implements 4 independent 25.78125 Gbps transmit and receive channels in each fiber for an aggregate 100 Gbps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our modules are factory pre-programmed for compatibility, perform identically to generic MSA transceivers.


Feature

  • Hot pluggable QSFP28 form factor
  • Aggregate data rate up to 103.1Gbps
  • 4 channels 1310nm DML transmitter
  • 4 channels PIN photo receiver
  • MTP/MPO-12 APC optical connector
  • Link distances up to SMF 500m with host FEC
  • 4x 25.78125Gbps NRZ retimed CUAI-4 electrical interface
  • Built-in digital diagnostic via 2-wire interface
  • Single 3.3V power supply voltage
  • Power consumption < 3.5W
  • Ambient temperature range 0 to 70°C for commercial application
  • Compliant with SFF-8665, SFF-8661, SFF-8679, SFF-8636
  • Compliant with IEEE 802.3 100GBASE-PSM4
  • Compliant with RoHS, REACH, CE, FCC standards

Application

  • 100G Ethernet
  • Data Center

Specification

Part Number QSFP-100G-PSM4 Form Factor QSFP28
Max Data Rate 103.1Gbps Max Distance 500m (1640ft)
Wavelength 1310nm Connector MTP/MPO-12 APC
DDM/DOM Support Media SMF
Transmitter Type 4x DML Receiver Type PIN
Transmitter Power -9.4 to 2dBm Receiver Sensitivity < -12.6dBm
Extinction Ratio 3.5dB Receiver Overload 3.5dBm
Transmit and Dispersion Penalty 2.9dB Power Budget 3.2dB
OE Packaging COB Packaging Signal Conditioner Retimer for TX and RX
Modulation Format NRZ Host FEC Support
Power Consumption 3.5W Commercial Temperature Range 0 to 70°C (32 to 158°F)
