0.5m (1.64ft) Generic Compatible QSFP-100G-AOC-0M5 100G QSFP28 Active Optical Cable

Original price $585.00
Current price $351.00
SKU

0.5m (1.64ft) Generic Compatible QSFP-100G-AOC-0M5 100G QSFP28 Active Optical Cable

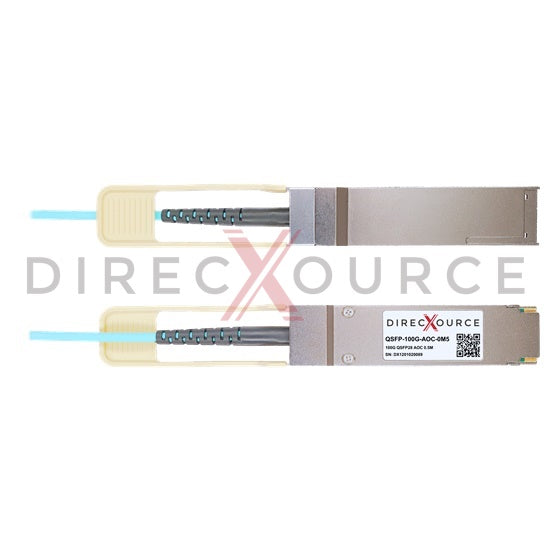

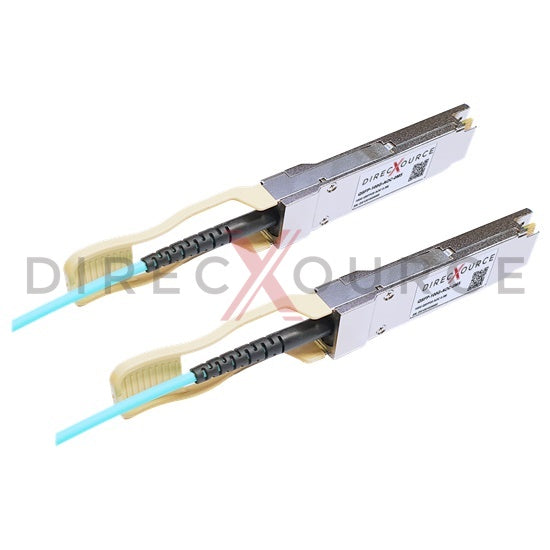

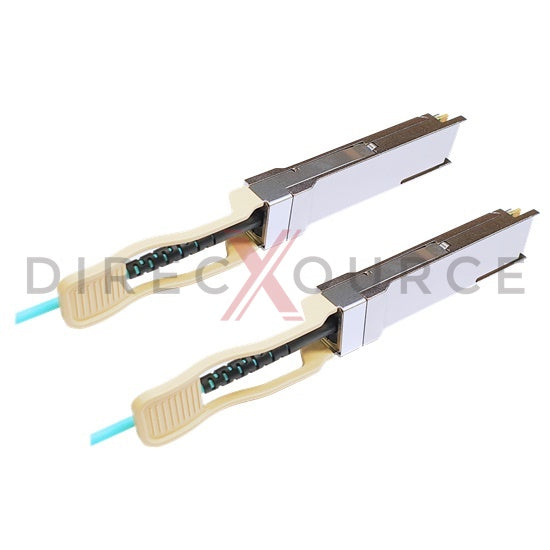

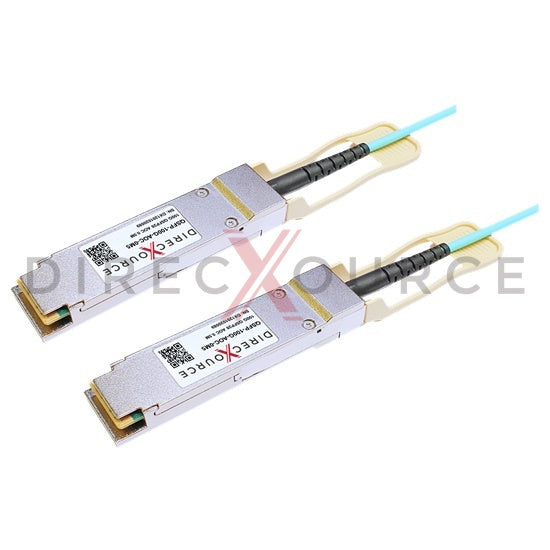

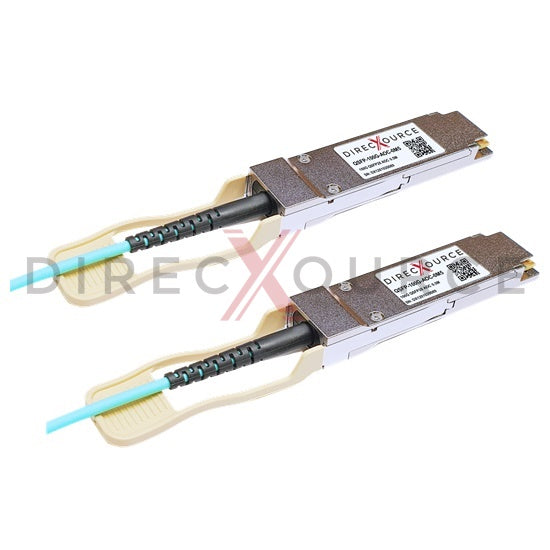

direcXource's QSFP-100G-AOC-0M5 AOC is a 100Gbps QSFP28 to QSFP28 active optical cable for use in 100GBASE Ethernet. QSFP28 AOC provides 100Gb/s throughput for 0.5m interconnection with laser-optimized multi-mode fiber optical cable. Standard length options cover from 0.5 meters to 30 meters. The QSFP28 AOC cable implements 4 independent 25 Gbps NRZ transmit and receive signal channels in each fiber for an aggregate 100 Gbps data rate. This AOC is fully compliant with QSFP28 Multi-Source Agreement (MSA), IEEE 802.3bj 100GBASE-CR4 and CAUI-4 standard. The active optical cable is pre-terminated with MSA compliant 38-pin edge type connectors. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our AOCs are factory pre-programmed for compatibility, perform identically to generic MSA direct attach cables.


Feature

  • Hot Pluggable QSFP28 to QSFP28 Topology
  • Aggregate data rate up to 100Gbps
  • Pre-terminated Multi-mode fiber cable
  • 4x 25.78125Gbps NRZ retimed CUAI-4 electrical interface
  • Minimum bending radius 7.5mm
  • Built-in digital diagnostic via 2-wire interface
  • Single 3.3V power supply voltage
  • Power consumption < 3.5W
  • Ambient temperature range 0 to 70°C for commercial application
  • Compliant with SFF-8665, SFF-8661, SFF-8679, SFF-8636
  • Compliant with IEEE 802.3bj 100GBASE-CR4
  • Compliant with RoHS, REACH, CE, FCC standards

Application

  • 100G Ethernet
  • Data Center

Specification

Part Number QSFP-100G-AOC-0M5 Topology QSFP28 to QSFP28
Max Data Rate 100Gbps Cable Length 0.5m (1.64ft)
Cable Type OM3 Multi Mode Fiber Jacket Meterial OFNP
Minimum Bend Radius 7.5mm Signal Conditioner Retimer for TX and RX
Modulation Format NRZ Host FEC Support
Power Consumption 3.5W Commercial Temperature Range 0 to 70°C (32 to 158°F)
