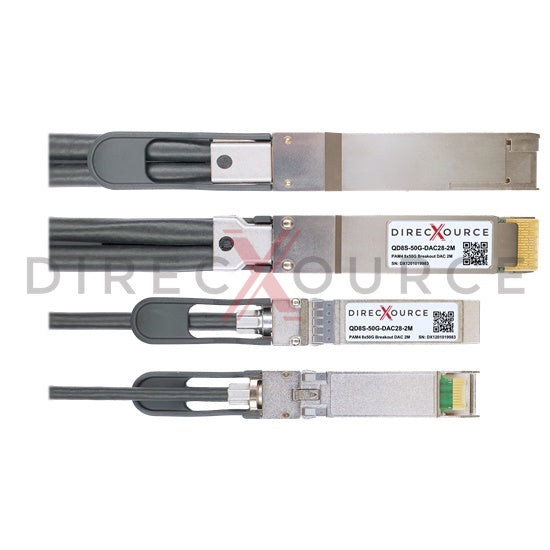

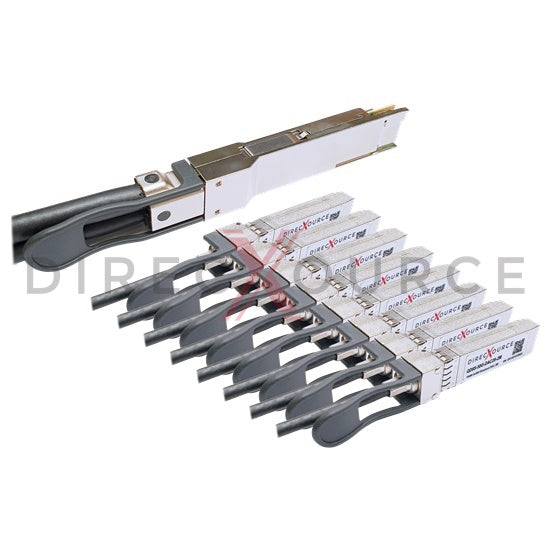

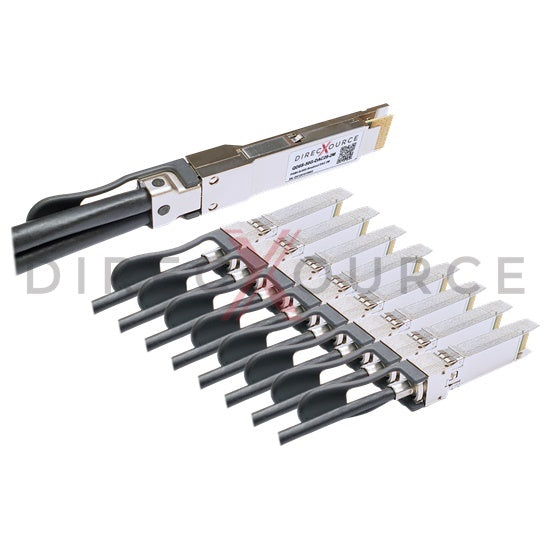

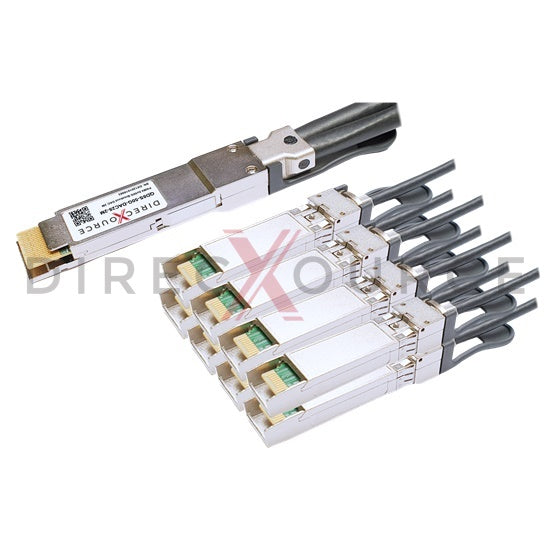

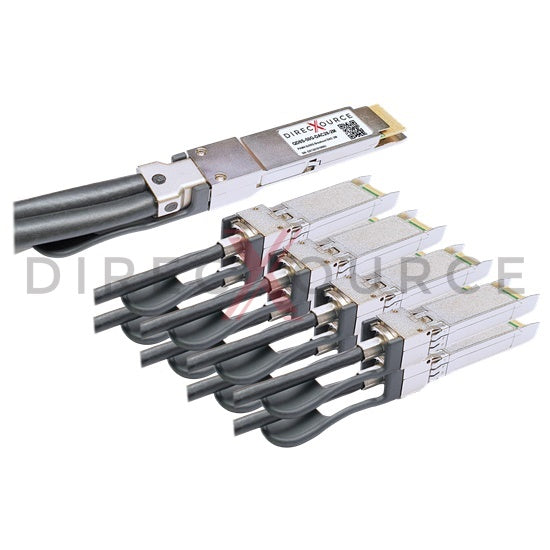

2m (6.56ft) Generic Compatible QD8S-50G-DAC28-2M 400G QSFP-DD to 8x50G SFP56 PAM4 Passive Direct Attach Twinax Breakout Copper Cable
direcXource's QD8S-50G-DAC28-2M DAC is a passive 8x 50Gbps QSFP-DD to 8 SFP56 direct attach breakout cable for use in 100GBASE Ethernet. QSFP-DD breakout DAC provides 8x 50Gb/s throughput for 2m interconnection with high speed twin-axial copper cable. Standard length options cover from 1 meter to 2.5 meters. The breakout DAC cable splits 8x 50 Gbps PAM4 signals from QSFP-DD into SFP56. It also supports 8x 25 Gbps NRZ fanout application. This DAC is fully compliant with QSFP-DD Multi-Source Agreement (MSA), IEEE 802.3cd 50GBASE-CR and 50GAUI-1 standard. The twin-axial copper cable's wire gauge is 28AWG and pre-terminated with MSA compliant 76-pin edge type connectors. MSA memory map are accessible via 2-wire Interface (TWI/I2C). Our breakout DACs are factory pre-programmed for compatibility, perform identically to generic MSA direct attach cables.
Feature
- Hot Pluggable QSFP-DD to 8 SFP56 Topology
- Split 400Gbps into 8 channels of 50Gbps
- Pre-terminated 28AWG twin-axial copper cable
- 8x 53.125Gbps PAM4 retimed 400GUAI-8/50GAUI electrical interface
- Minimum bending radius 39.5mm
- MSA memory accessible via 2-wire interface
- Single 3.3V power supply voltage
- Extremely low power consumption near 0W
- Ambient temperature range 0 to 70°C for commercial application
- Compliant with QSFP-DD MSA, SFF-8402, SFF-8432, SFF-8419, SFF-8472
- Compliant with IEEE 802.3cd 50GBASE-CR
- Compliant with RoHS, REACH, CE, FCC standards
Application
- 50G Ethernet
- Data Center
Specification
Part Number | QD8S-50G-DAC28-2M | Topology | QSFP-DD to 8 SFP56 |
Max Data Rate | 8x 50Gbps | Cable Length | 2m (6.56ft) |
Cable Type | Twinax | Wire Gauge | 28AWG |
Jacket Meterial | OFNR (PVC) | Minimum Bend Radius | 39.5mm |
Host FEC | Support | Modulation Format | PAM4 |
Power Consumption | 0W | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
