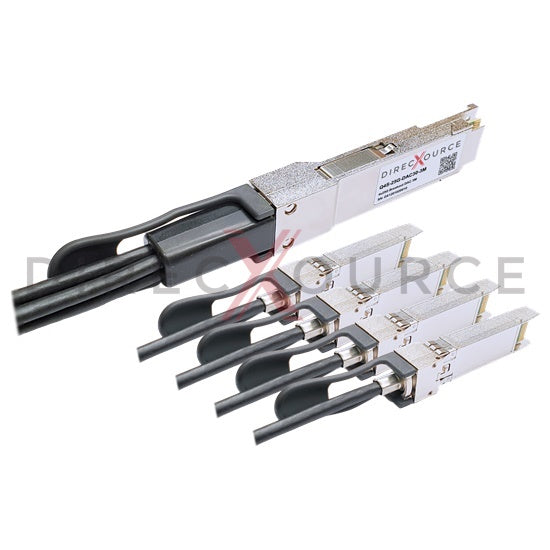

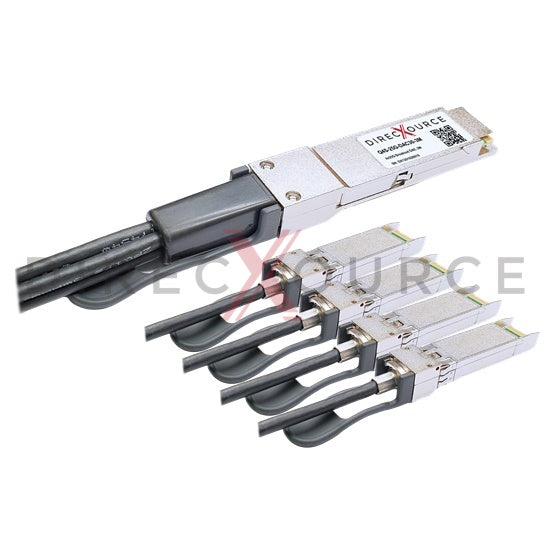

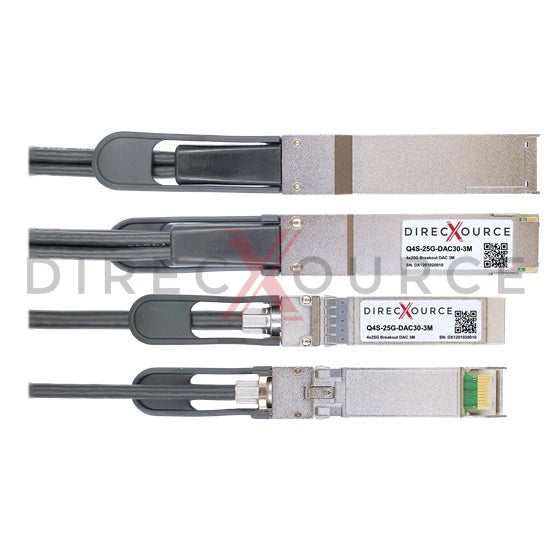

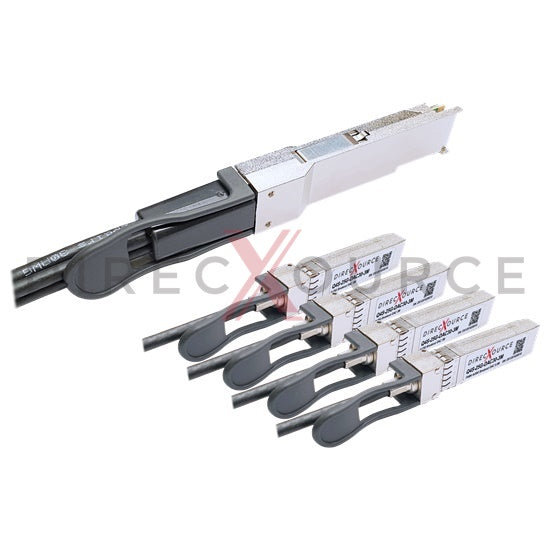

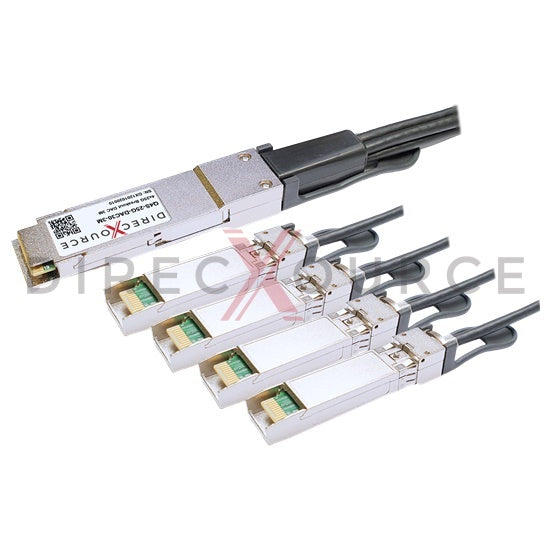

3m (9.84ft) Generic Compatible Q4S-25G-DAC30-3M 100G QSFP28 to 4x25G SFP28 Passive Direct Attach Twinax Breakout Copper Cable
direcXource's Q4S-25G-DAC30-3M DAC is a passive 4x 25Gbps QSFP28 to 4 SFP28 direct attach breakout cable for use in 25GBASE Ethernet. QSFP28 breakout DAC provides 4x 25Gb/s throughput for 3m interconnection with high speed twin-axial copper cable. Standard length options cover from 0.5 meters to 5 meters. The breakout DAC cable splits 4x 25 Gbps NRZ signals from QSFP28 into SFP28. This DAC is fully compliant with QSFP28 Multi-Source Agreement (MSA), IEEE 802.3by 25GBASE-CR and 25GAUI standard. The twin-axial copper cable's wire gauge is 30AWG and pre-terminated with MSA compliant 38-pin and 20-pin edge type connectors. MSA memory map are accessible via 2-wire Interface (TWI/I2C). Our breakout DACs are factory pre-programmed for compatibility, perform identically to generic MSA direct attach cables.
Feature
- Hot Pluggable QSFP28 to 4 SFP28 Topology
- Split 100Gbps into 4 channels of 25Gbps
- Pre-terminated 30AWG twin-axial copper cable
- 4x 25.78125Gbps NRZ retimed CUAI-4/25GAUI electrical interface
- Minimum bending radius 25mm
- MSA memory accessible via 2-wire interface
- Single 3.3V power supply voltage
- Extremely low power consumption near 0W
- Ambient temperature range 0 to 70°C for commercial application
- Compliant with SFF-8665, SFF-8661, SFF-8679, SFF-8636, SFF-8402, SFF-8432, SFF-8419, SFF-8472
- Compliant with IEEE 802.3by 25GBASE-CR
- Compliant with RoHS, REACH, CE, FCC standards
Application
- 25G Ethernet
- Data Center
Specification
Part Number | Q4S-25G-DAC30-3M | Topology | QSFP28 to 4 SFP28 |
Max Data Rate | 4x 25Gbps | Cable Length | 3m (9.84ft) |
Cable Type | Twinax | Wire Gauge | 30AWG |
Jacket Meterial | OFNR (PVC) | Minimum Bend Radius | 25mm |
Host FEC | Support | Modulation Format | NRZ |
Power Consumption | 0W | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
