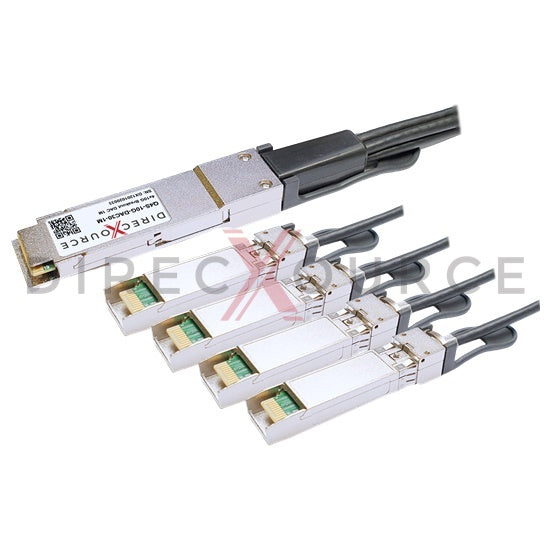

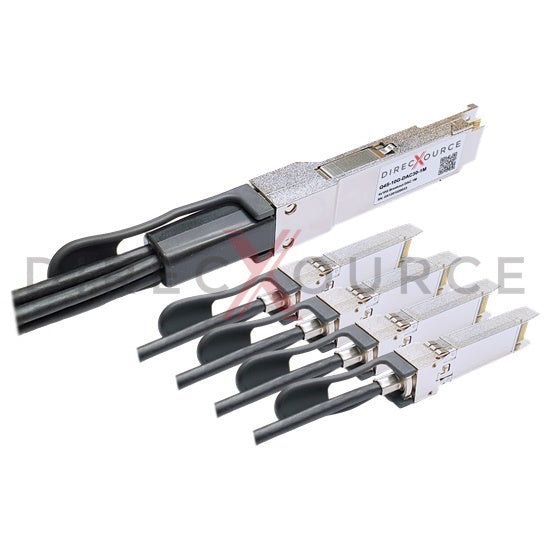

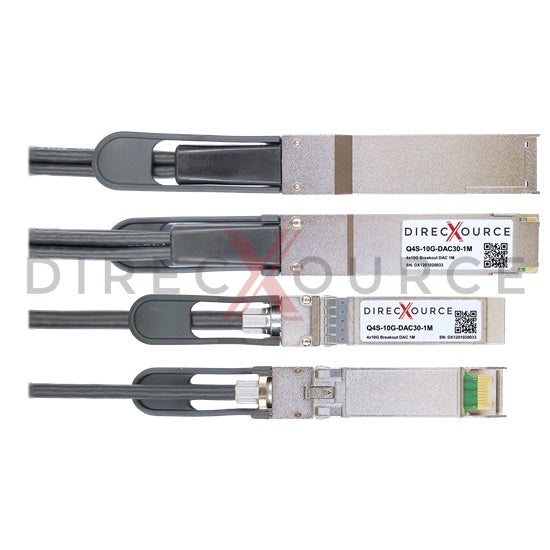

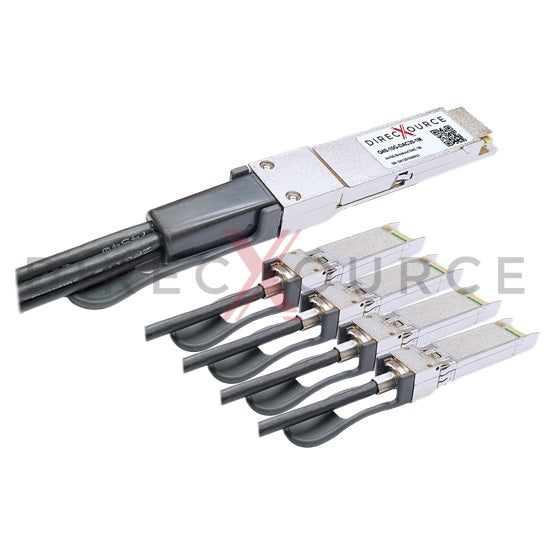

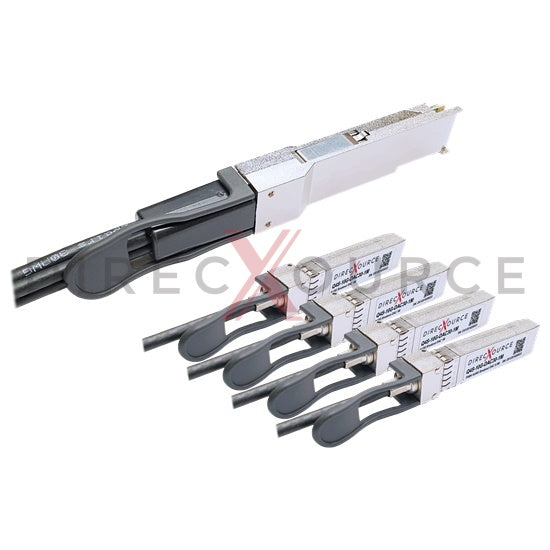

1m (3.28ft) Generic Compatible Q4S-10G-DAC30-1M 40G QSFP+ to 4x10G SFP+ Passive Direct Attach Twinax Breakout Copper Cable

Original price $69.00
Current price $41.00
SKU

1m (3.28ft) Generic Compatible Q4S-10G-DAC30-1M 40G QSFP+ to 4x10G SFP+ Passive Direct Attach Twinax Breakout Copper Cable


direcXource's Q4S-10G-DAC30-1M DAC is a passive 4x 10Gbps QSFP+ to 4 SFP+ direct attach breakout cable for use in 10GBASE Ethernet. QSFP+ breakout DAC provides 4x 10Gb/s throughput for 1m interconnection with high speed twin-axial copper cable. Standard length options cover from 0.5 meters to 7 meters. The breakout DAC cable splits 4x 10 Gbps NRZ signals from QSFP+ into SFP+. This DAC is fully compliant with QSFP+ Multi-Source Agreement (MSA), IEEE 802.3ae 10GBASE-CR and SFI standard. The twin-axial copper cable's wire gauge is 30AWG and pre-terminated with MSA compliant 38-pin and 20-pin edge type connectors. MSA memory map are accessible via 2-wire Interface (TWI/I2C). Our breakout DACs are factory pre-programmed for compatibility, perform identically to generic MSA direct attach cables.


Feature

  • Hot Pluggable QSFP+ to 4 SFP+ Topology
  • Split 40Gbps into 4 channels of 10Gbps
  • Pre-terminated 30AWG twin-axial copper cable
  • 4x 10.3125Gbps XLPPI/SFI electrical interface
  • Minimum bending radius 21mm
  • MSA memory accessible via 2-wire interface
  • Single 3.3V power supply voltage
  • Extremely low power consumption near 0W
  • Ambient temperature range 0 to 70°C for commercial application
  • Compliant with SFF-8436, SFF-8635, SFF-8636, SFF-8431, SFF-8432, SFF-8431, SFF-8432, SFF-8419, SFF-8472
  • Compliant with IEEE 802.3ae 10GBASE-CR
  • Compliant with RoHS, REACH, CE, FCC standards

Application

  • 10G Ethernet
  • Data Center

Specification

Part Number Q4S-10G-DAC30-1M Topology QSFP+ to 4 SFP+
Max Data Rate 4x 10Gbps Cable Length 1m (3.28ft)
Cable Type Twinax Wire Gauge 30AWG
Jacket Meterial OFNR (PVC) Minimum Bend Radius 21mm
Power Consumption 0W Commercial Temperature Range 0 to 70°C (32 to 158°F)
