25m (82.02ft) Generic Compatible Q4S-10G-AOC-25M 40G QSFP+ to 4x10G SFP+ Breakout Active Optical Cable

Original price $262.00
Current price $157.00
SKU

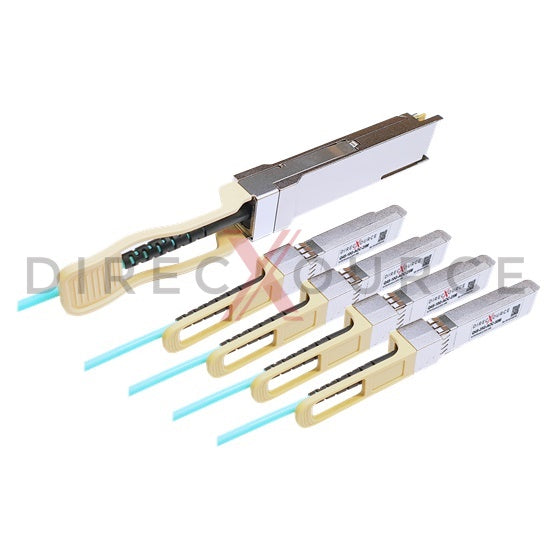

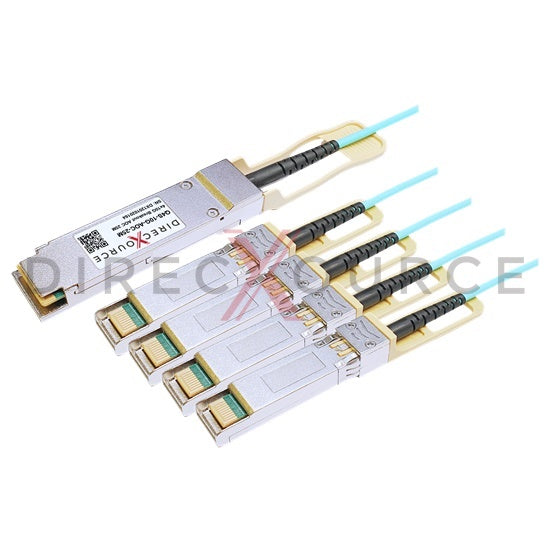

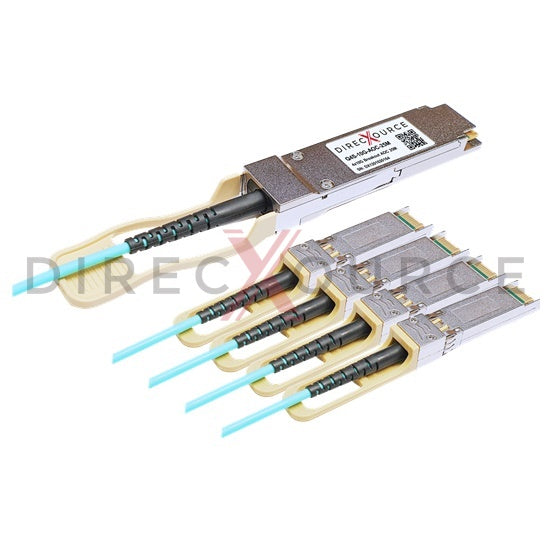

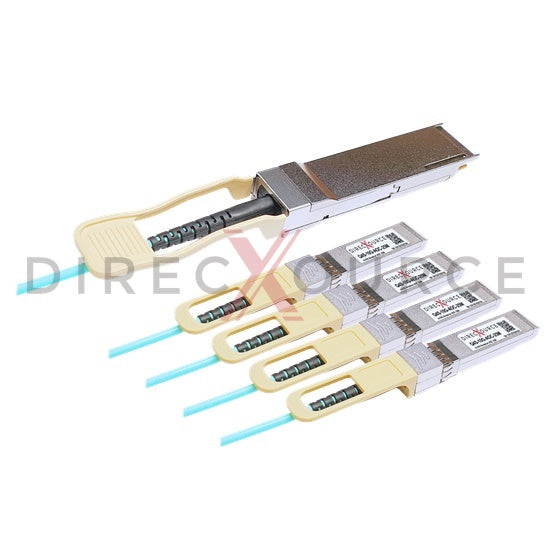

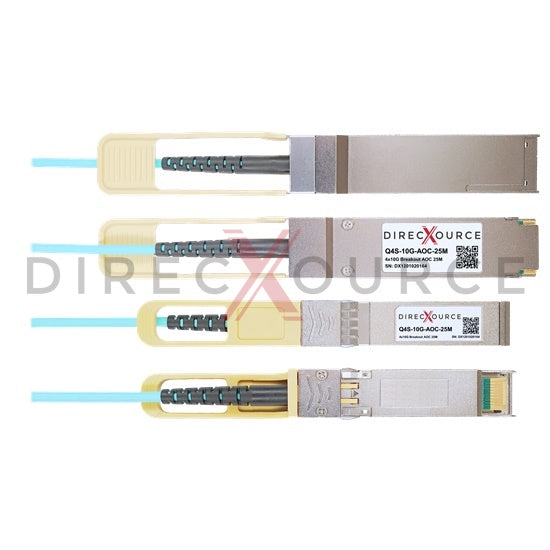

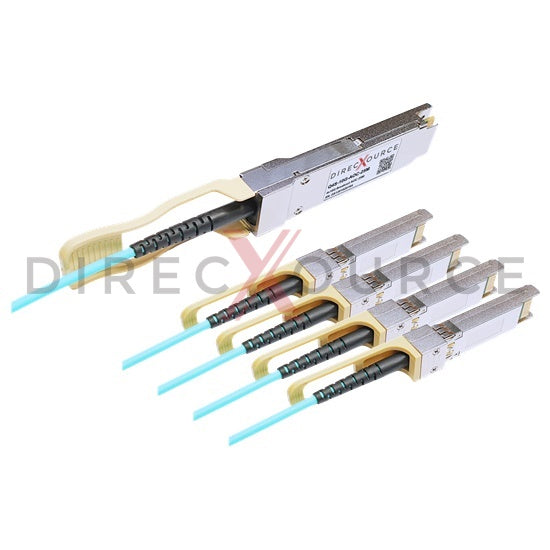

25m (82.02ft) Generic Compatible Q4S-10G-AOC-25M 40G QSFP+ to 4x10G SFP+ Breakout Active Optical Cable


direcXource's Q4S-10G-AOC-25M AOC is a 4x 10Gbps QSFP+ to 4 SFP+ active optical breakout cable for use in 10GBASE Ethernet. QSFP+ breakout AOC provides 10Gb/s throughput for 25m interconnection with laser-optimized multi-mode fiber optical cable. Standard length options cover from 1 meter to 30 meters. The breakout AOC cable splits 4x 10 Gbps NRZ signals from QSFP+ into SFP+. This AOC is fully compliant with QSFP+ Multi-Source Agreement (MSA), IEEE 802.3ae 10GBASE-CR and SFI standard. The active optical cable is pre-terminated with MSA compliant 38-pin and 20-pin edge type connectors. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our breakout AOCs are factory pre-programmed for compatibility, perform identically to generic MSA direct attach cables.


Feature

  • Hot Pluggable QSFP+ to 4 SFP+ Topology
  • Split 40Gbps into 4 channels of 10Gbps
  • Pre-terminated Multi-mode fiber cable
  • 4x 10.3125Gbps XLPPI/SFI electrical interface
  • Minimum bending radius 7.5mm
  • Built-in digital diagnostic via 2-wire interface
  • Single 3.3V power supply voltage
  • Power consumption < 1W/1W
  • Ambient temperature range 0 to 70°C for commercial application
  • Compliant with SFF-8436, SFF-8635, SFF-8661, SFF-8679, SFF-8636, SFF-8431, SFF-8432, SFF-8419, SFF-8472
  • Compliant with IEEE 802.3ae 10GBASE-CR
  • Compliant with RoHS, REACH, CE, FCC standards

Application

  • 10G Ethernet
  • Data Center

Specification

Part Number Q4S-10G-AOC-25M Topology QSFP+ to 4 SFP+
Max Data Rate 4x 10Gbps Cable Length 25m (82.02ft)
Cable Type OM3 Multi Mode Fiber Jacket Meterial OFNP
Minimum Bend Radius 7.5mm Signal Conditioner None
Power Consumption 1W/1W Commercial Temperature Range 0 to 70°C (32 to 158°F)
