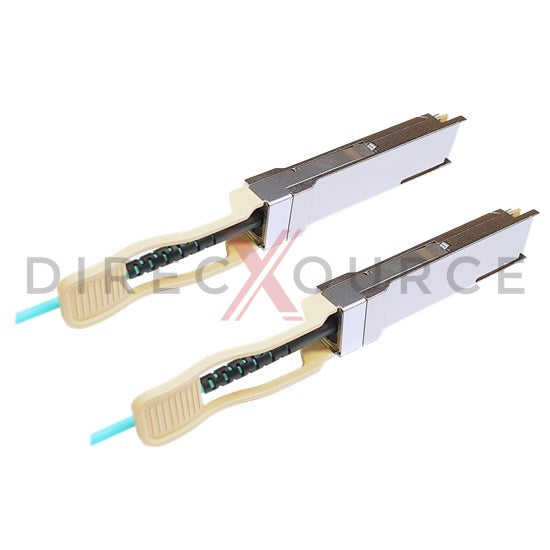

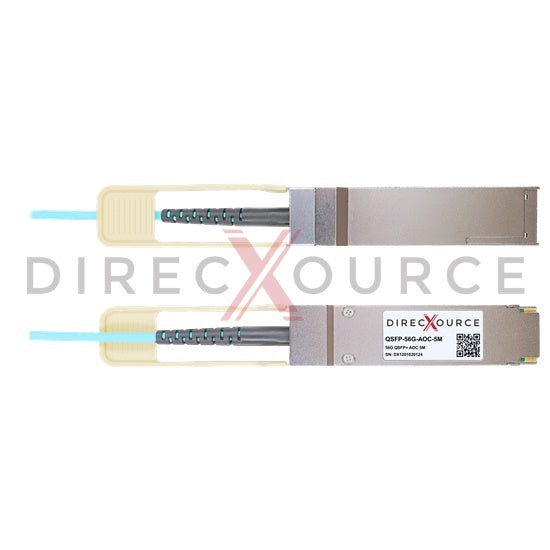

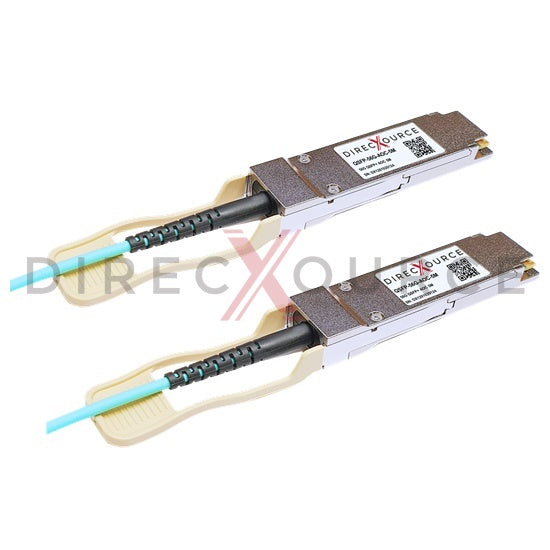

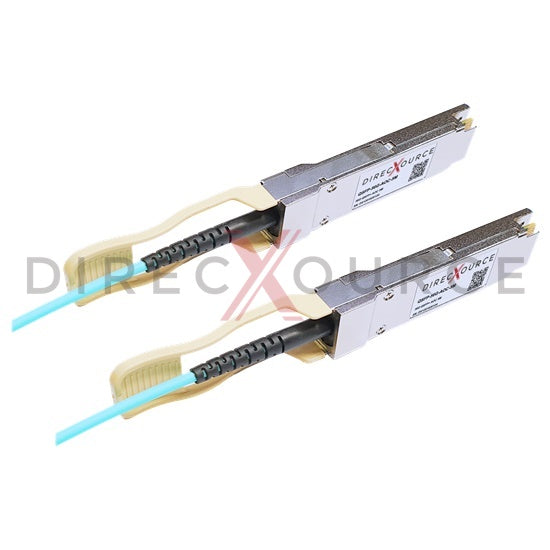

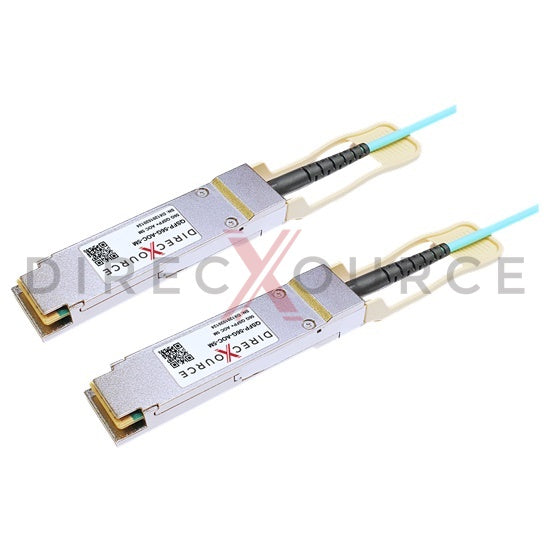

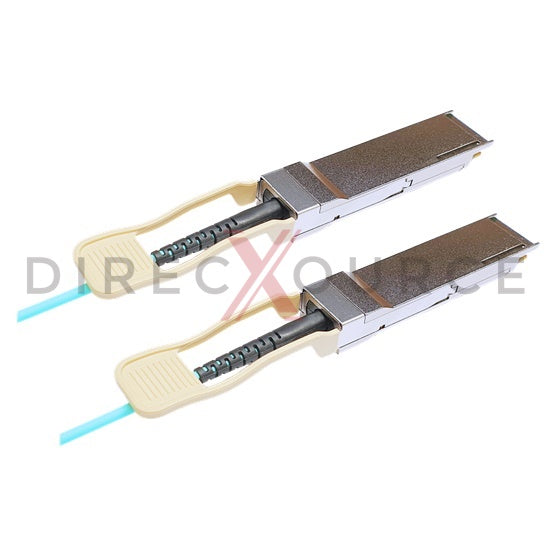

5m (16.4ft) Mellanox MC220731V-005 Compatible 56G QSFP+ Active Optical Cable

Mellanox MC220731V-005 compatible AOC is a 56Gbps QSFP+ to QSFP+ active optical cable for use in 56G InfiniBand. QSFP+ AOC provides 56Gb/s throughput for 5m interconnection with laser-optimized multi-mode fiber optical cable. Standard length options cover from 1 meter to 30 meters. The QSFP+ AOC cable implements 4 independent 14 Gbps NRZ transmit and receive signal channels in each fiber for an aggregate 56 Gbps data rate. This AOC is fully compliant with QSFP+ Multi-Source Agreement (MSA) and InfiniBand 4X FDR standard. The active optical cable is pre-terminated with MSA compliant 38-pin edge type connectors. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our AOCs are factory pre-programmed for compatibility, perform identically to original Mellanox MC220731V-005 direct attach cables.

Feature

  • Equivalent to Mellanox MC220731V-005 in function
  • Hot Pluggable QSFP+ to QSFP+ Topology
  • Aggregate data rate up to 56Gbps
  • Pre-terminated Multi-mode fiber cable
  • 4x 14.0625Gbps fourteen data rate NRZ electrical interface
  • Minimum bending radius 7.5mm
  • Built-in digital diagnostic via 2-wire interface
  • Single 3.3V power supply voltage
  • Power consumption < 1W
  • Ambient temperature range 0 to 70°C for commercial application
  • Compliant with SFF-8685, SFF-8661, SFF-8679, SFF-8636
  • Compliant with InfiniBand 4X FDR
  • Compliant with RoHS, REACH, CE, FCC standards

Application

  • 56G 4X FDR Infiniband

Specification

Mellanox Compatible P/N MC220731V-005 Topology QSFP+ to QSFP+
Max Data Rate 56Gbps Cable Length 5m (16.4ft)
Cable Type OM3 Multi Mode Fiber Jacket Meterial OFNP
Minimum Bend Radius 7.5mm Signal Conditioner None
Power Consumption 1W Commercial Temperature Range 0 to 70°C (32 to 158°F)
