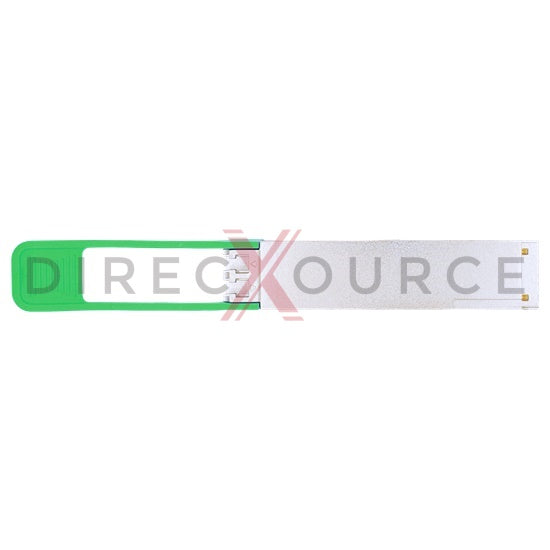

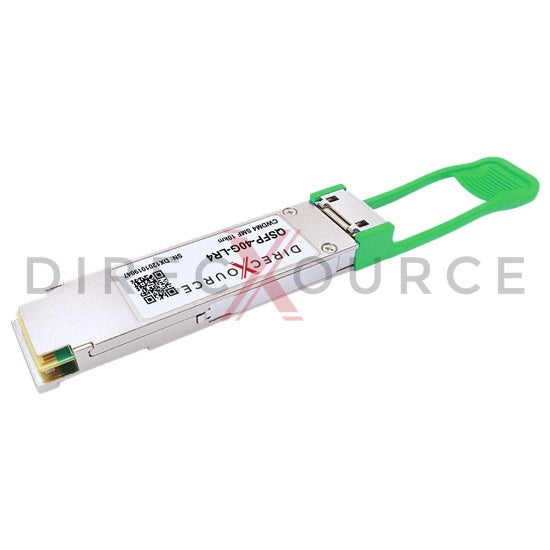

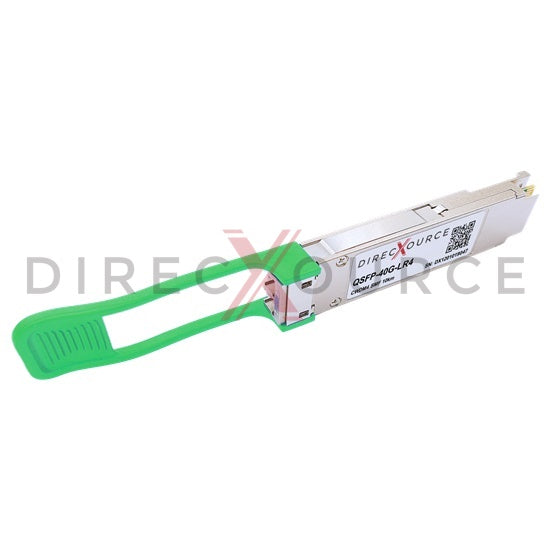

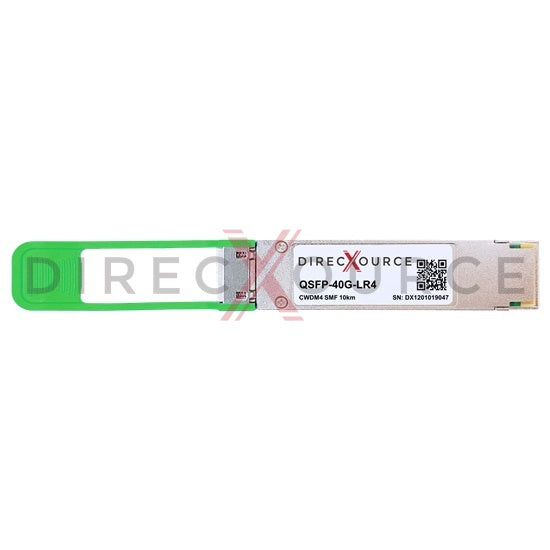

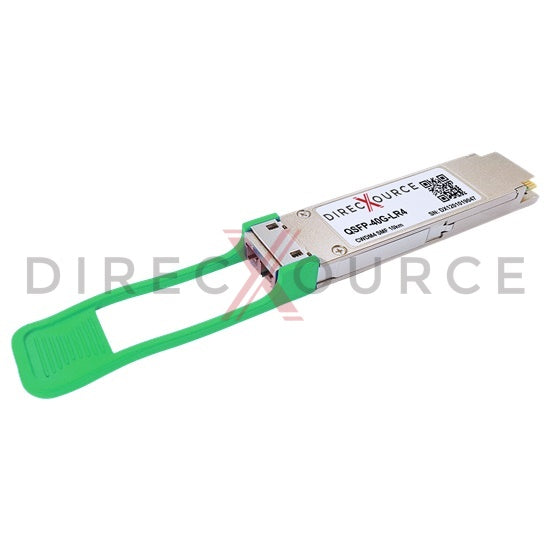

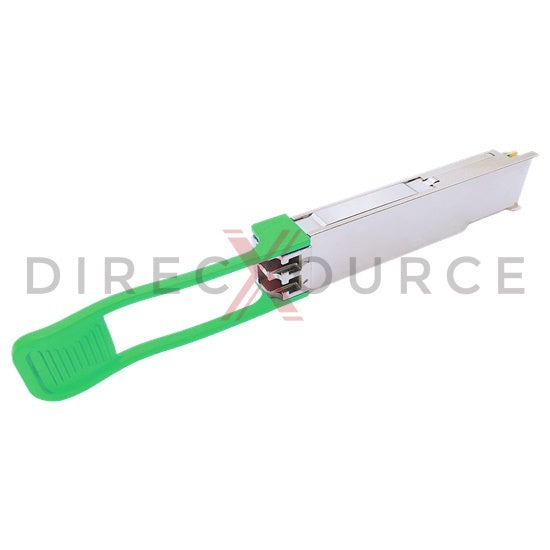

IBM Lenovo 00D6222 Compatible 40GBASE-LR4 QSFP+ 1310nm 10km SMF LC DOM Optical Transceiver Module

IBM Lenovo 00D6222 Compatible 40GBASE-LR4 QSFP+ 1310nm 10km SMF LC DOM Optical Transceiver Module

IBM Lenovo 00D6222 compatible optical transceiver is a parallel 41.2Gbps Quad Small Form-factor Pluggable QSFP+ module for use in 40GBASE Ethernet. QSFP+ LR4 provides 40Gb/s throughput up to 10km over single-mode fiber (SMF) using 1271nm, 1291nm, 1311nm, 1331nm wavelength. This transceiver is fully compliant with QSFP+ Multi-Source Agreement (MSA), IEEE 802.3ba 40GBASE-LR4 and XLPPI standard. Its electrical interface is MSA compliant 38-pin edge type connector and the optical interface is Duplex LC connector. The full-duplex QSFP+ transceiver implements 4 independent 10.3125 Gbps transmit and receive channels in each wavelength for an aggregate 40 Gbps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our modules are factory pre-programmed for compatibility, perform identically to original IBM Lenovo 00D6222 transceivers.

Feature

• Equivalent to IBM Lenovo 00D6222 in function
• Hot pluggable QSFP+ form factor
• Aggregate data rate up to 41.2Gbps
• 4 channels 1310nm CWDM DML transmitter
• 4 channels PIN photo receiver
• Duplex LC optical connector
• Link distances up to SMF 10km
• 4x 10.3125Gbps XLPPI electrical interface
• Built-in digital diagnostic via 2-wire interface
• Single 3.3V power supply voltage
• Power consumption < 3.5W
• Ambient temperature range 0 to 70°C for commercial application
• Compliant with SFF-8436, SFF-8635, SFF-8661, SFF-8679, SFF-8636
• Compliant with IEEE 802.3ba 40GBASE-LR4
• Compliant with RoHS, REACH, CE, FCC standards

Application

• 40G Ethernet
• Data Center
• OTU3

Specification
