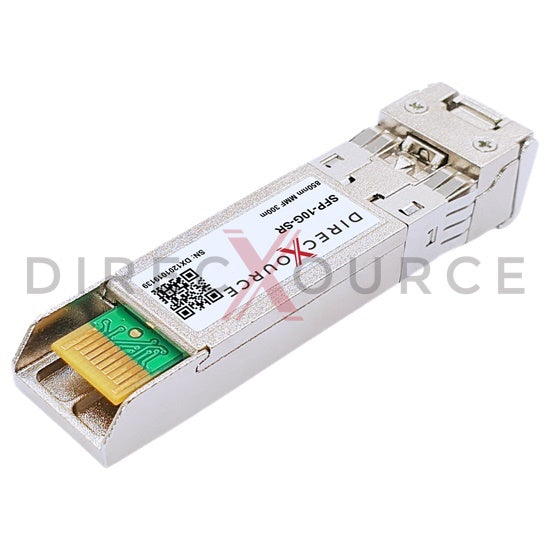

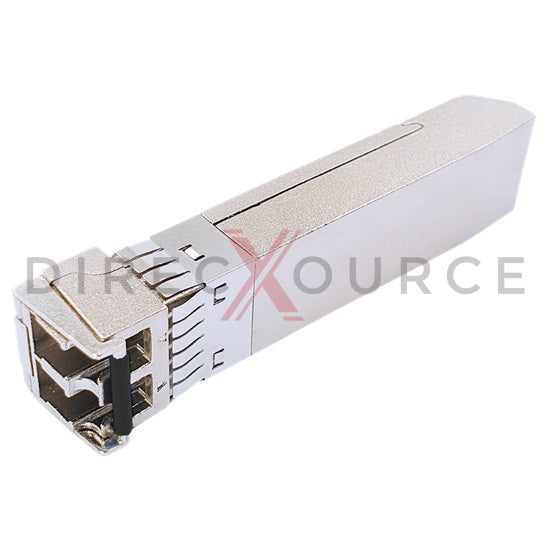

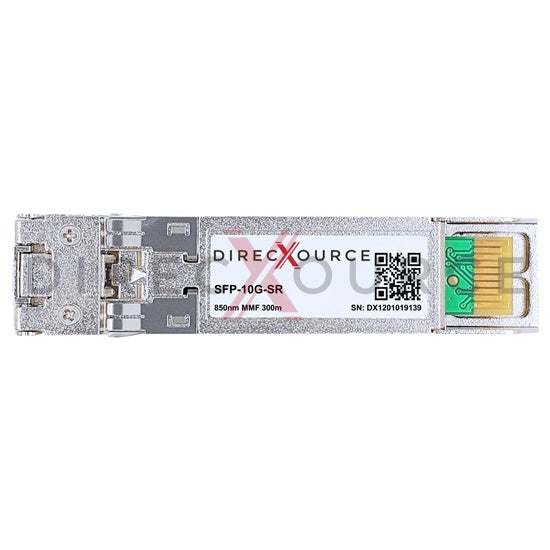

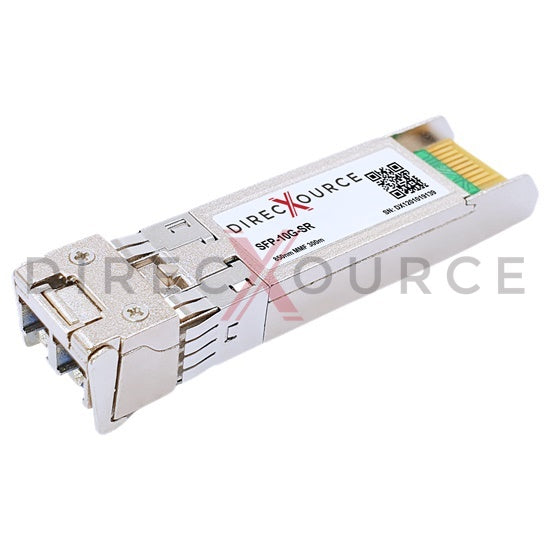

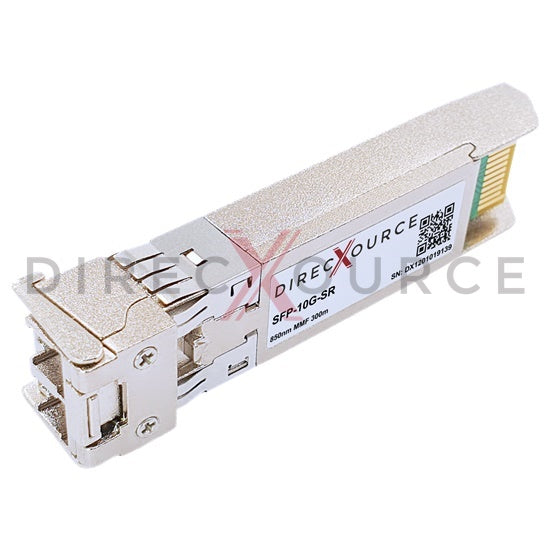

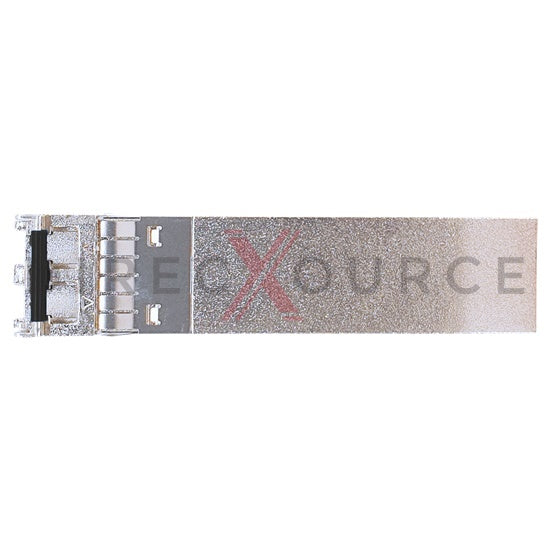

IBM BNT BN-CKM-SP-SR Compatible 10GBASE-SR SFP+ 850nm 300m MMF LC DOM Optical Transceiver Module


IBM BNT BN-CKM-SP-SR compatible optical transceiver is a dual fiber 10.3Gbps Small Form-factor Pluggable SFP+ module for use in 10GBASE Ethernet. SFP+ SR provides 10Gb/s throughput up to 300 meters over OM3 or 82 meters over OM2 multi-mode fiber (MMF) using 850nm wavelength. This transceiver is fully compliant with SFP+ Multi-Source Agreement (MSA), IEEE 802.3ae 10GBASE-SR and SFI standard. Its electrical interface is MSA compliant 20-pin edge type connector and the optical interface is Duplex LC connector. The full-duplex SFP+ transceiver features highly reliable VCSEL transmitter and PIN photo detector to offer high performance interconnection at 10 Gbps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our modules are factory pre-programmed for compatibility, perform identically to original IBM BNT BN-CKM-SP-SR transceivers.


Feature

  • Equivalent to IBM BNT BN-CKM-SP-SR in function
  • Hot pluggable SFP+ form factor
  • Data rate up to 10.3Gbps
  • 850nm VCSEL transmitter
  • PIN photo receiver
  • Duplex LC optical connector
  • Link distances up to OM3 300m
  • Built-in digital diagnostic via 2-wire interface
  • Single 3.3V power supply voltage
  • Power consumption < 1W
  • Ambient temperature range 0 to 70°C for commercial application
  • Compliant with SFF-8431, SFF-8432, SFF-8419, SFF-8472
  • Compliant with IEEE 802.3ae 10GBASE-SR
  • Compliant with RoHS, REACH, CE, FCC standards

Application

  • 10G Ethernet
  • 10G Fibre Channel
  • 10G CPRI
  • 10G SONET/SDH

Specification

IBM BNT Compatible P/N BN-CKM-SP-SR Form Factor SFP+
Max Data Rate 10.3Gbps Max Distance 300m (984ft) @OM3
Wavelength 850nm Connector Duplex LC
DDM/DOM Support Media MMF
Transmitter Type VCSEL Receiver Type PIN
Transmitter Power -7.3 to -1dBm Receiver Sensitivity < -11.1dBm
Extinction Ratio 3dB Receiver Overload -1dBm
Transmit and Dispersion Penalty 3.9dB Power Budget 3.8dB
OE Packaging Coaxial Packaging Modulation Format NRZ
Power Consumption 1W Commercial Temperature Range 0 to 70°C (32 to 158°F)
