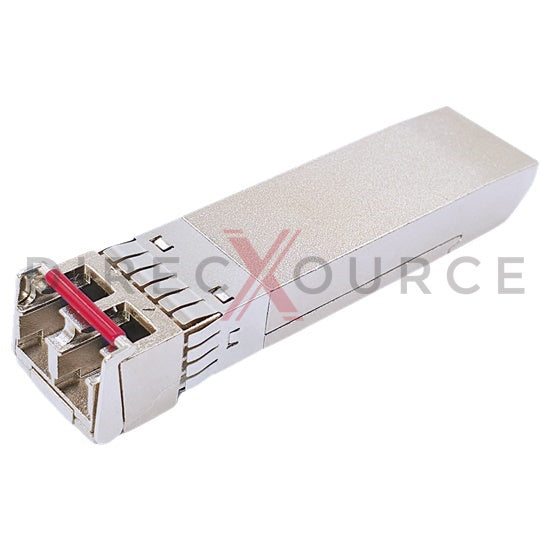

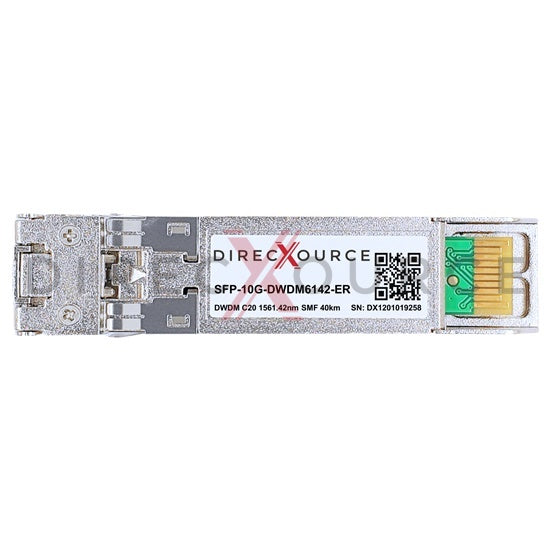

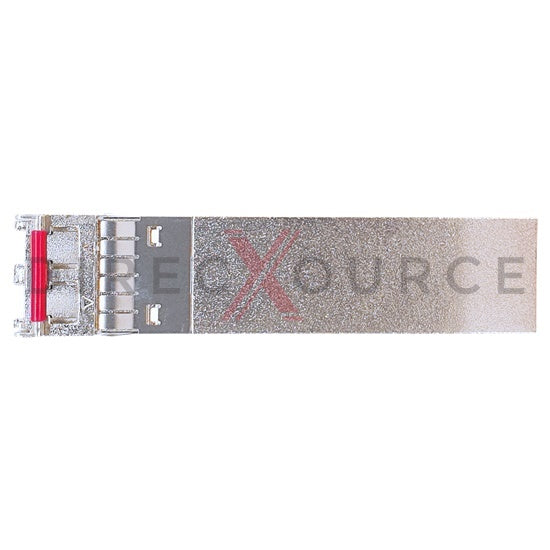

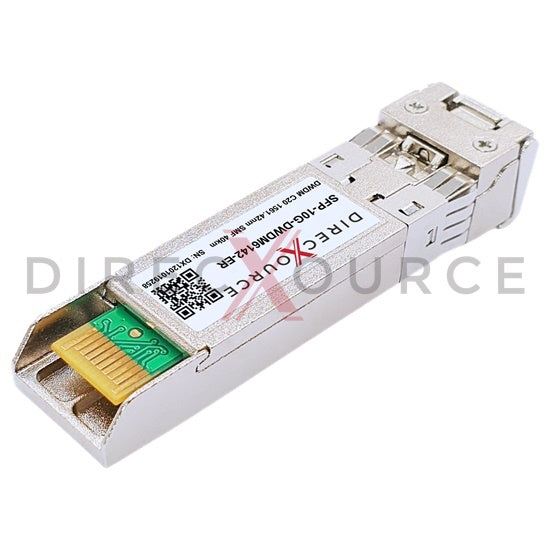

H3C DWDM-SFP10G-61.42-40 Compatible 10GBASE-DWDM SFP+ 100GHz C20 1561.42nm 40km SMF LC DOM Optical Transceiver Module
H3C DWDM-SFP10G-61.42-40 compatible optical transceiver is a dual fiber 10.3Gbps Small Form-factor Pluggable SFP+ DWDM module for use in 10GBASE Ethernet. SFP+ DWDM6142-ER provides 10Gb/s throughput up to 40km over single-mode fiber (SMF) using C20 1561.42nm wavelength. This transceiver is fully compliant with SFP+ Multi-Source Agreement (MSA), IEEE 802.3 10GBASE-DWDM and SFI standard. Its electrical interface is MSA compliant 20-pin edge type connector and the optical interface is Duplex LC connector. The full-duplex SFP+ transceiver features highly reliable DWDM EML transmitter and PIN photo detector to offer high performance interconnection at 10 Gbps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our modules are factory pre-programmed for compatibility, perform identically to original H3C DWDM-SFP10G-61.42-40 transceivers.
Feature
- Equivalent to H3C DWDM-SFP10G-61.42-40 in function
- Hot pluggable SFP+ form factor
- Data rate up to 10.3Gbps
- C20 1561.42nm DWDM EML transmitter
- PIN photo receiver
- Duplex LC optical connector
- Link distances up to SMF 40km
- Built-in digital diagnostic via 2-wire interface
- Single 3.3V power supply voltage
- Power consumption < 1.5W
- Ambient temperature range 0 to 70°C for commercial application
- Compliant with SFF-8431, SFF-8432, SFF-8419, SFF-8472
- Compliant with IEEE 802.3 10GBASE-DWDM
- Compliant with RoHS, REACH, CE, FCC standards
Application
- 10G Ethernet
- 10G Fibre Channel
- 10G SONET/SDH
- OTN G.709 OUT 1e/2/2e FEC bit rates
- CPRI option 2 through 8
Specification
H3C Compatible P/N | DWDM-SFP10G-61.42-40 | Form Factor | SFP+ |
Max Data Rate | 10.3Gbps | Max Distance | 40km (24.9 miles) |
Wavelength | 1561.42nm | Connector | Duplex LC |
DDM/DOM | Support | Media | SMF |
Transmitter Type | DWDM EML | Receiver Type | PIN |
Transmitter Power | -1 to 4dBm | Receiver Sensitivity | < -16dBm |
Extinction Ratio | 8.2dB | Receiver Overload | -1dBm |
Transmit and Dispersion Penalty | 2dB | Power Budget | 15dB |
OE Packaging | Box Packaging | Modulation Format | NRZ |
Power Consumption | 1.5W | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
