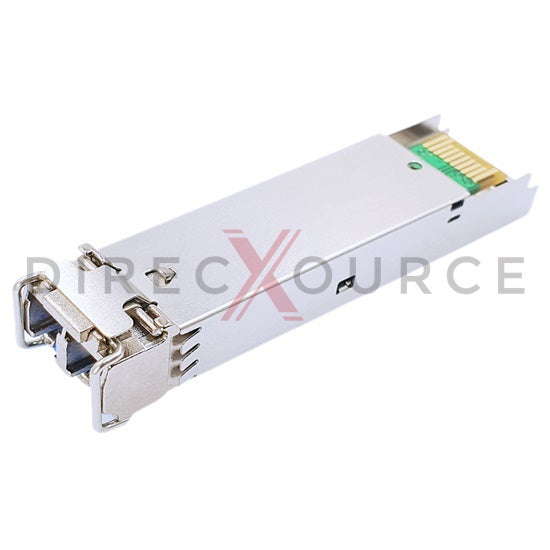

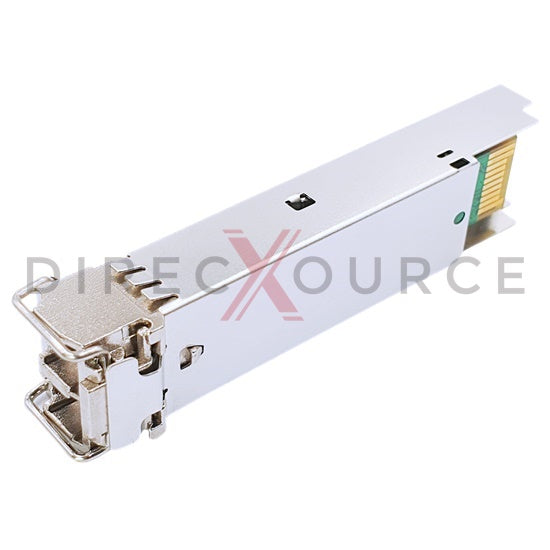

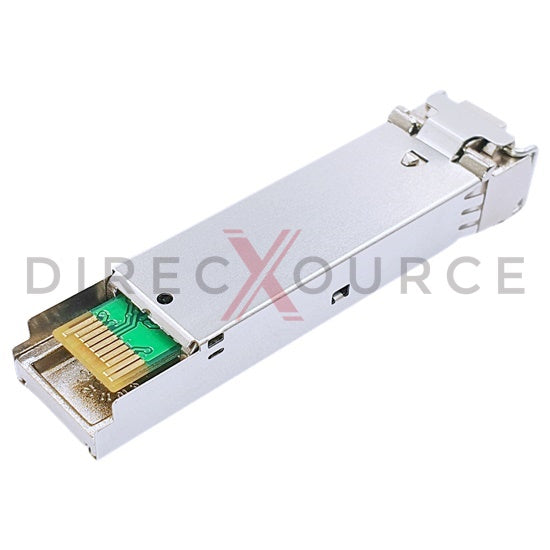

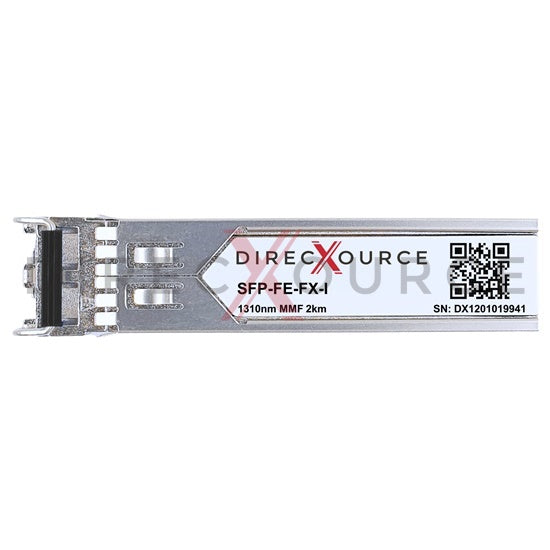

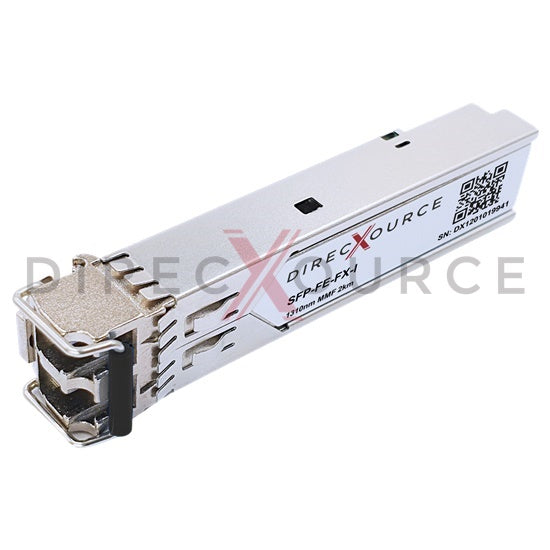

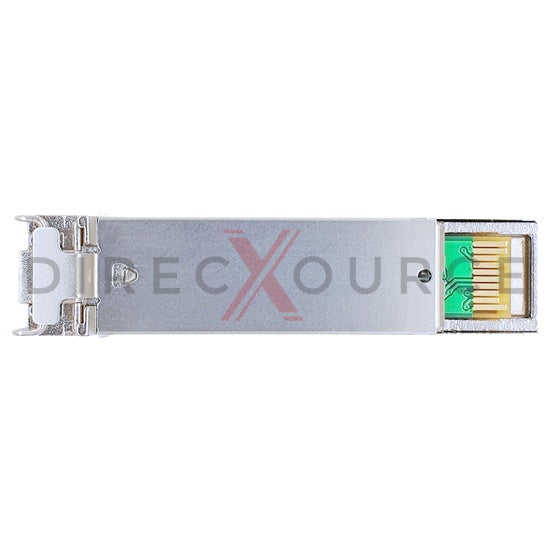

Foundry Networks 100FX Compatible Industrial 100BASE-FX SFP 1310nm 2km MMF LC DOM Optical Transceiver Module


Foundry Networks 100FX compatible optical transceiver is an industrial dual fiber 100Mbps Small Form-factor Pluggable SFP module for use in 100BASE Ethernet. SFP FX-I provides 100Mb/s throughput up to 2km over multi-mode fiber (MMF) using 1310nm wavelength. This transceiver is fully compliant with SFP Multi-Source Agreement (MSA), IEEE 802.3u 100BASE-FX and SERDES standard. Its electrical interface is MSA compliant 20-pin edge type connector and the optical interface is Duplex LC connector. The full-duplex SFP transceiver features highly reliable FP transmitter and PIN photo detector to offer high performance interconnection at 100M bps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our modules are factory pre-programmed for compatibility, perform identically to original Foundry Networks 100FX transceivers.


Feature

  • Equivalent to Foundry Networks 100FX in function
  • Hot pluggable SFP form factor
  • Data rate up to 100Mbps
  • 1310nm FP transmitter
  • PIN photo receiver
  • Duplex LC optical connector
  • Link distances up to MMF 2km
  • Built-in digital diagnostic via 2-wire interface
  • Single 3.3V power supply voltage
  • Power consumption < 0.6W
  • Ambient temperature range -40 to 85°C for industrial application
  • Compliant with INF-8074i, SFF-8472
  • Compliant with IEEE 802.3u 100BASE-FX
  • Compliant with RoHS, REACH, CE, FCC standards

Application

  • Fast Ethernet

Specification

Foundry Networks Compatible P/N 100FX Form Factor SFP
Max Data Rate 100Mbps Max Distance 2km (1.2 miles)
Wavelength 1310nm Connector Duplex LC
DDM/DOM Support Media MMF
Transmitter Type FP Receiver Type PIN
Transmitter Power -15 to -8dBm Receiver Sensitivity < -32dBm
Extinction Ratio 9dB Receiver Overload 0dBm
Modulation Format NRZ Power Budget 17dB
Power Consumption 0.6W Industrial Temperature Range -40 to 85°C (-40 to 185°F)
