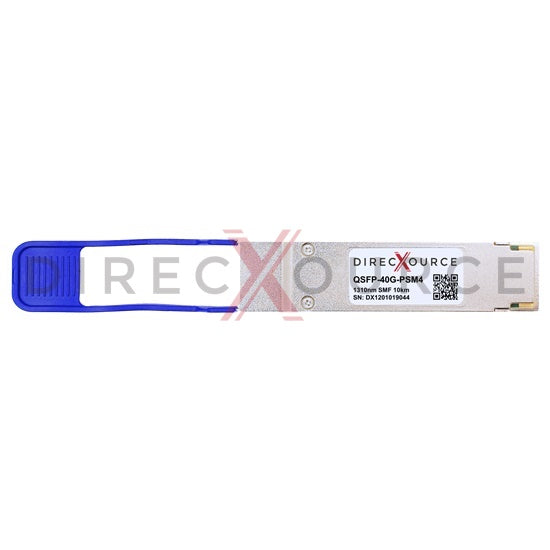

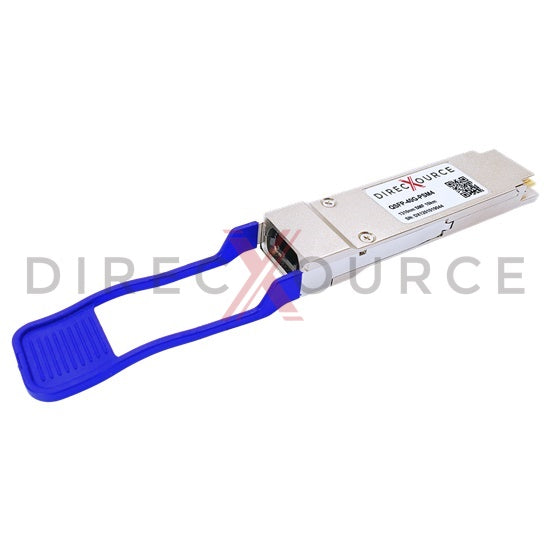

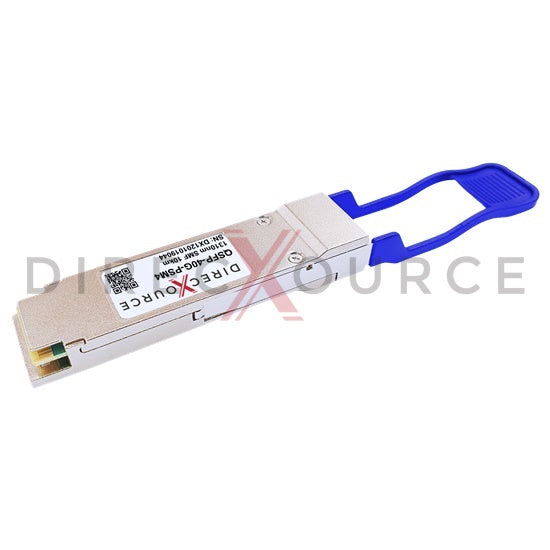

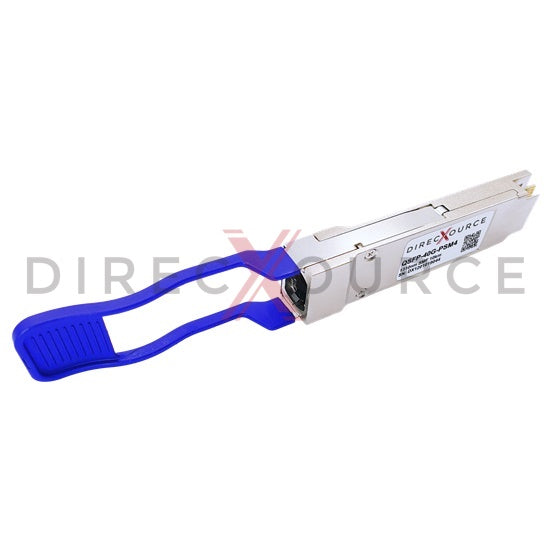

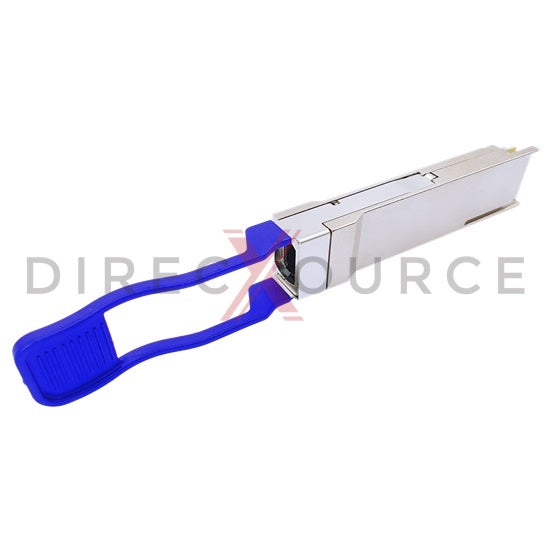

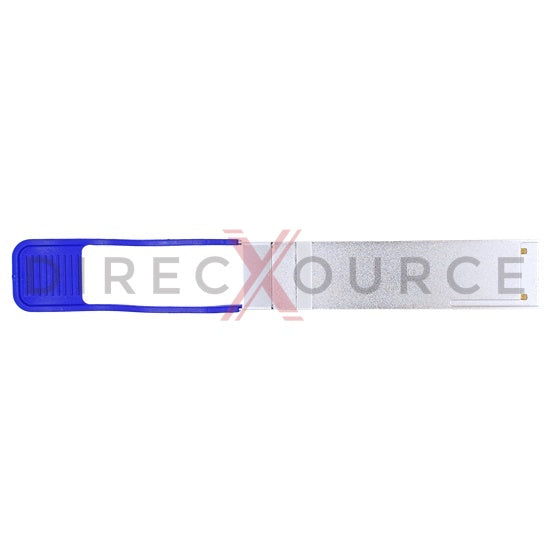

Fortinet FG-TRAN-QSFP+PLR Compatible 40GBASE-PSM4 QSFP+ 1310nm 10km SMF MTP/MPO-12 DOM Optical Transceiver Module


Fortinet FG-TRAN-QSFP+PLR compatible optical transceiver is a parallel 41.2Gbps Quad Small Form-factor Pluggable QSFP+ module for use in 40GBASE Ethernet. QSFP+ PSM4 provides 40Gb/s throughput up to 10km over single-mode fiber (SMF) using 1310nm wavelength. This transceiver is fully compliant with QSFP+ Multi-Source Agreement (MSA), IEEE 802.3 40GBASE-PSM4 and XLPPI standard. Its electrical interface is MSA compliant 38-pin edge type connector and the optical interface is MTP/MPO-12 APC connector. The full-duplex QSFP+ transceiver implements 4 independent 10.3125 Gbps transmit and receive channels in each fiber for an aggregate 40 Gbps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our modules are factory pre-programmed for compatibility, perform identically to original Fortinet FG-TRAN-QSFP+PLR transceivers.


Feature

  • Equivalent to Fortinet FG-TRAN-QSFP+PLR in function
  • Hot pluggable QSFP+ form factor
  • Aggregate data rate up to 41.2Gbps
  • 4 channels 1310nm DML transmitter
  • 4 channels PIN photo receiver
  • MTP/MPO-12 APC optical connector
  • Link distances up to SMF 10km
  • 4x 10.3125Gbps XLPPI electrical interface
  • Built-in digital diagnostic via 2-wire interface
  • Single 3.3V power supply voltage
  • Power consumption < 2.5W
  • Ambient temperature range 0 to 70°C for commercial application
  • Compliant with SFF-8436, SFF-8635, SFF-8661, SFF-8679, SFF-8636
  • Compliant with IEEE 802.3 40GBASE-PSM4
  • Compliant with RoHS, REACH, CE, FCC standards

Application

  • 40G Ethernet
  • Data Center
  • OTU3

Specification

Fortinet Compatible P/N FG-TRAN-QSFP+PLR Form Factor QSFP+
Max Data Rate 41.2Gbps Max Distance 10km (6.2 miles)
Wavelength 1310nm Connector MTP/MPO-12 APC
DDM/DOM Support Media SMF
Transmitter Type 4x DML Receiver Type PIN
Transmitter Power -6 to -1dBm Receiver Sensitivity < -14.4dBm
Extinction Ratio 6dB Receiver Overload 1dBm
Transmit and Dispersion Penalty 2.6dB Power Budget 8.4dB
OE Packaging Box Packaging Modulation Format NRZ
Power Consumption 2.5W Commercial Temperature Range 0 to 70°C (32 to 158°F)
