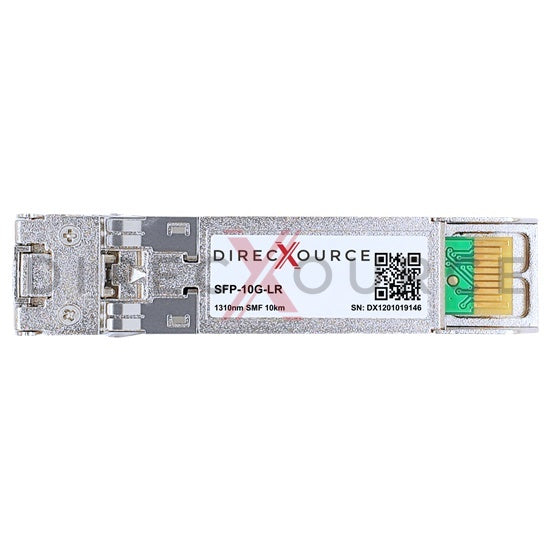

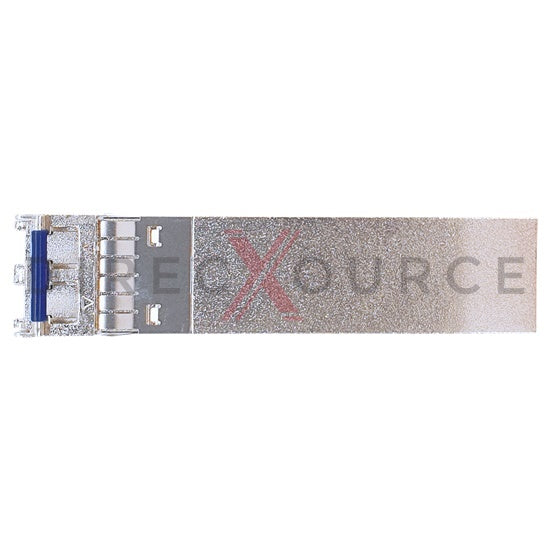

F5 Networks F5-UPG-SFP+LR-R Compatible 10GBASE-LR SFP+ 1310nm 10km SMF LC DOM Optical Transceiver Module

Original price $42.00
Current price $25.00
SKU

F5 Networks F5-UPG-SFP+LR-R Compatible 10GBASE-LR SFP+ 1310nm 10km SMF LC DOM Optical Transceiver Module


F5 Networks F5-UPG-SFP+LR-R compatible optical transceiver is a dual fiber 10.3Gbps Small Form-factor Pluggable SFP+ module for use in 10GBASE Ethernet. SFP+ LR provides 10Gb/s throughput up to 10km over single-mode fiber (SMF) using 1310nm wavelength. This transceiver is fully compliant with SFP+ Multi-Source Agreement (MSA), IEEE 802.3ae 10GBASE-LR and SFI standard. Its electrical interface is MSA compliant 20-pin edge type connector and the optical interface is Duplex LC connector. The full-duplex SFP+ transceiver features highly reliable DFB transmitter and PIN photo detector to offer high performance interconnection at 10 Gbps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our modules are factory pre-programmed for compatibility, perform identically to original F5 Networks F5-UPG-SFP+LR-R transceivers.


Feature

  • Equivalent to F5 Networks F5-UPG-SFP+LR-R in function
  • Hot pluggable SFP+ form factor
  • Data rate up to 10.3Gbps
  • 1310nm DFB transmitter
  • PIN photo receiver
  • Duplex LC optical connector
  • Link distances up to SMF 10km
  • Built-in digital diagnostic via 2-wire interface
  • Single 3.3V power supply voltage
  • Power consumption < 1W
  • Ambient temperature range 0 to 70°C for commercial application
  • Compliant with SFF-8431, SFF-8432, SFF-8419, SFF-8472
  • Compliant with IEEE 802.3ae 10GBASE-LR
  • Compliant with RoHS, REACH, CE, FCC standards

Application

  • 10G Ethernet
  • 10G Fibre Channel
  • 10G CPRI
  • 10G SONET/SDH

Specification

F5 Networks Compatible P/N F5-UPG-SFP+LR-R Form Factor SFP+
Max Data Rate 10.3Gbps Max Distance 10km (6.2 miles)
Wavelength 1310nm Connector Duplex LC
DDM/DOM Support Media SMF
Transmitter Type DFB Receiver Type PIN
Transmitter Power -8.2 to 0.5dBm Receiver Sensitivity < -14.4dBm
Extinction Ratio 3.5dB Receiver Overload 0.5dBm
Transmit and Dispersion Penalty 3.2dB Power Budget 6.2dB
OE Packaging Coaxial Packaging Modulation Format NRZ
Power Consumption 1W Commercial Temperature Range 0 to 70°C (32 to 158°F)
