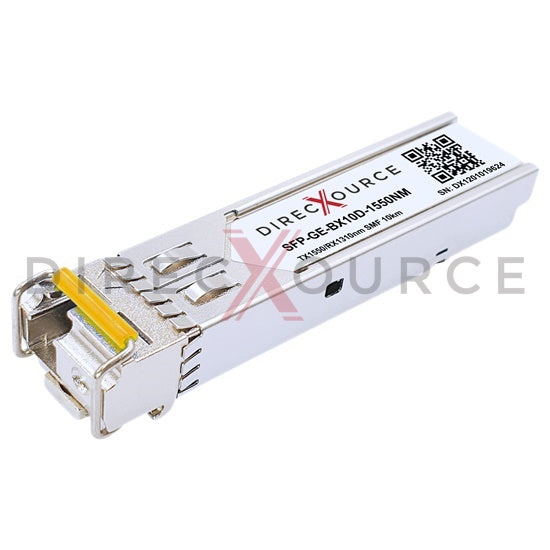

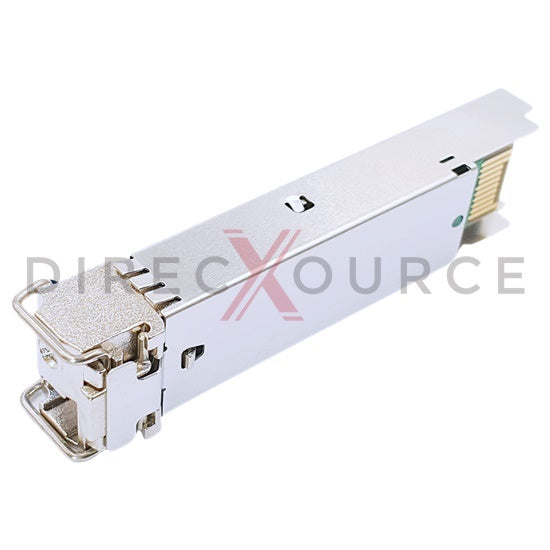

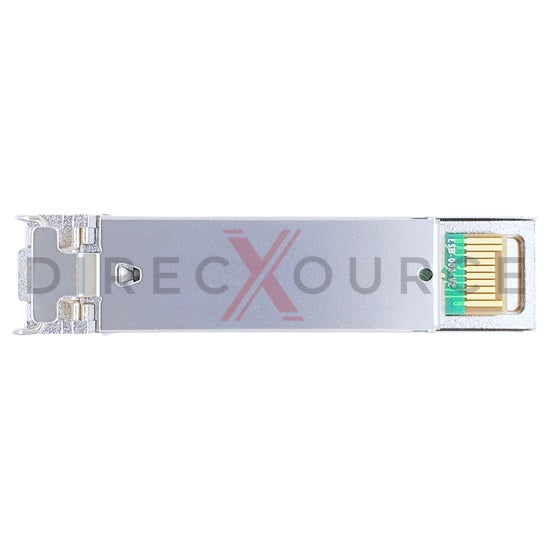

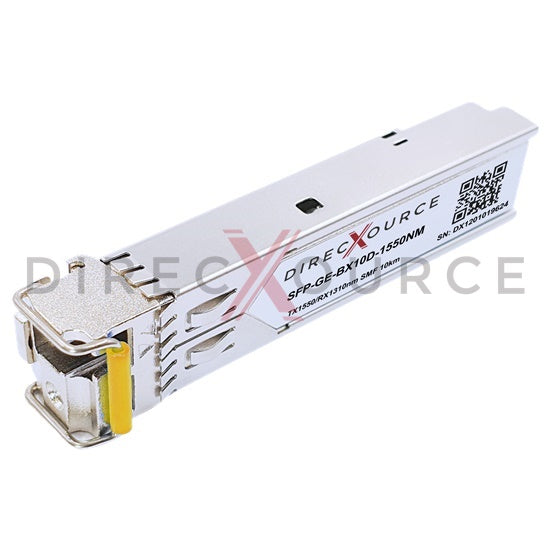

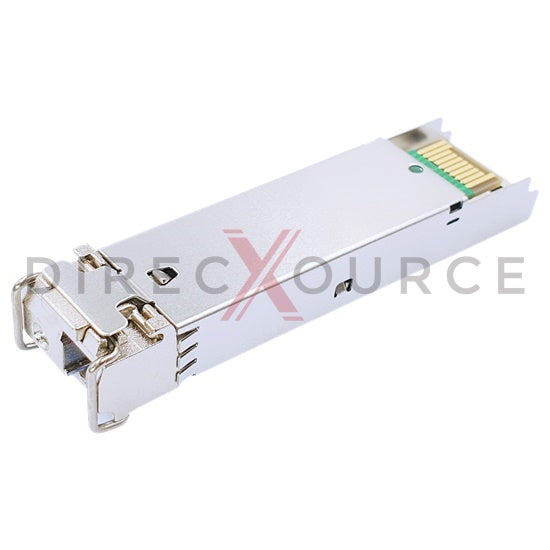

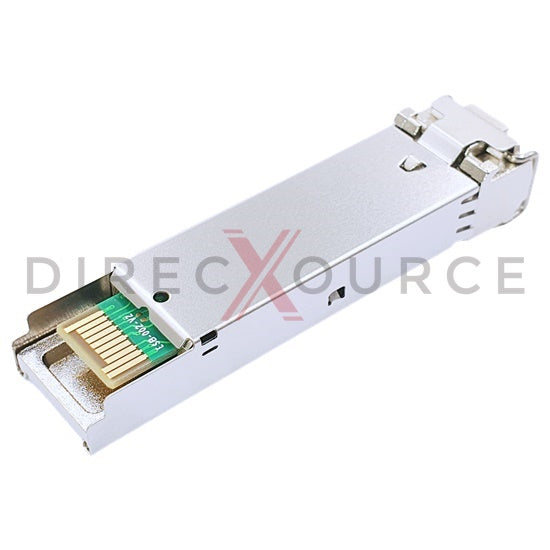

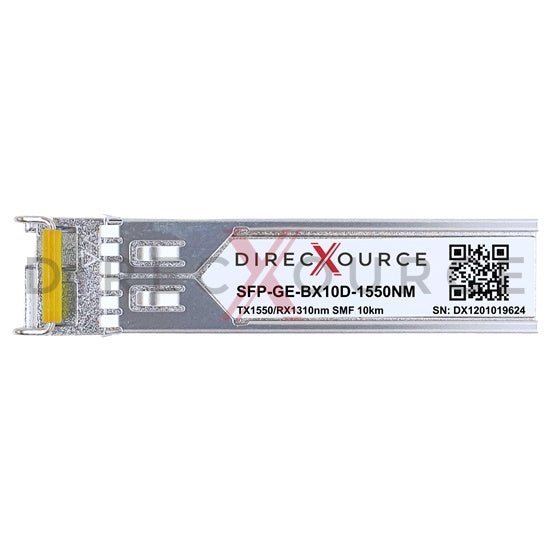

Extreme Networks MGBIC-BX10-U-1550 Compatible 1000BASE-BX BIDI SFP TX1550nm/RX1310nm 10km SMF LC DOM Optical Transceiver Module


Extreme Networks MGBIC-BX10-U-1550 compatible optical transceiver is a single fiber bidirection 1000Mbps Small Form-factor Pluggable SFP BIDI module for use in 1000BASE Ethernet. SFP BX10D-1550NM provides 1Gb/s throughput up to 10km over single-mode fiber (SMF) using 1550nm in transmitter side and 1310nm in receiver side. This transceiver is fully compliant with SFP Multi-Source Agreement (MSA), IEEE 802.3 1000BASE-BX10 and SERDES standard. Its electrical interface is MSA compliant 20-pin edge type connector and the optical interface is Simplex LC connector. The full-duplex SFP transceiver features highly reliable DFB transmitter and PIN photo detector to offer high performance interconnection at 1 Gbps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our modules are factory pre-programmed for compatibility, perform identically to original Extreme Networks MGBIC-BX10-U-1550 transceivers.


Feature

  • Equivalent to Extreme Networks MGBIC-BX10-U-1550 in function
  • Hot pluggable SFP form factor
  • Data rate up to 1000Mbps
  • 1550nm DFB transmitter
  • PIN photo receiver
  • Simplex LC optical connector
  • Link distances up to SMF 10km
  • Built-in digital diagnostic via 2-wire interface
  • Single 3.3V power supply voltage
  • Power consumption < 0.6W
  • Ambient temperature range 0 to 70°C for commercial application
  • Compliant with INF-8074i, SFF-8472
  • Compliant with IEEE 802.3 1000BASE-BX10
  • Compliant with RoHS, REACH, CE, FCC standards

Application

  • Gigabit Ethernet

Specification

Extreme Networks Compatible P/N MGBIC-BX10-U-1550 Form Factor SFP
Max Data Rate 1000Mbps Max Distance 10km (6.2 miles)
Wavelength TX1550nm/RX1310nm Connector Simplex LC
DDM/DOM Support Media SMF
Transmitter Type DFB Receiver Type PIN
Transmitter Power -9 to -3dBm Receiver Sensitivity < -23dBm
Extinction Ratio 9dB Receiver Overload -3dBm
Modulation Format NRZ Power Budget 14dB
Power Consumption 0.6W Commercial Temperature Range 0 to 70°C (32 to 158°F)
