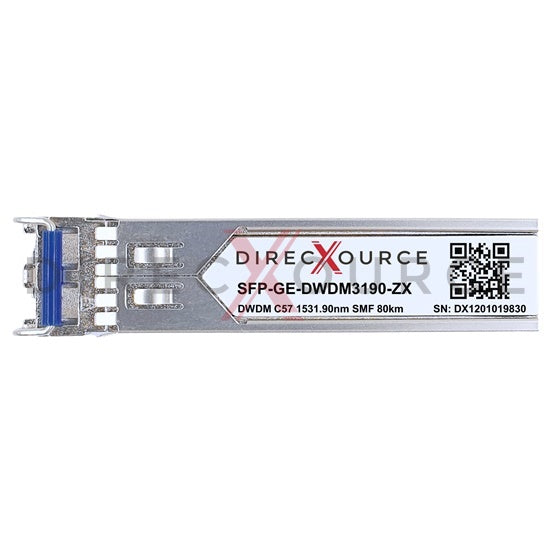

Extreme Networks DWDM-SFP1G-31.90-80 Compatible 1000BASE-DWDM SFP 100GHz C57 1531.90nm 80km SMF LC DOM Optical Transceiver Module

Original price $364.00
Current price $218.00
SKU

Compatible Brand Options

Extreme Networks Compatible 1G DWDM SFP Transceiver Series

Extreme Networks DWDM-SFP1G-31.90-80 Compatible 1000BASE-DWDM SFP 100GHz C57 1531.90nm 80km SMF LC DOM Optical Transceiver Module


Extreme Networks DWDM-SFP1G-31.90-80 compatible optical transceiver is a dual fiber 1000Mbps Small Form-factor Pluggable SFP DWDM module for use in 1000BASE Ethernet. SFP DWDM3190-ZX provides 1Gb/s throughput up to 80km over single-mode fiber (SMF) using 1531.90nm wavelength. This transceiver is fully compliant with SFP Multi-Source Agreement (MSA), IEEE 802.3 1000BASE-DWDM and SERDES standard. Its electrical interface is MSA compliant 20-pin edge type connector and the optical interface is Duplex LC connector. The full-duplex SFP transceiver features highly reliable DFB transmitter and PIN photo detector to offer high performance interconnection at 1 Gbps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our modules are factory pre-programmed for compatibility, perform identically to original Extreme Networks DWDM-SFP1G-31.90-80 transceivers.


Feature

  • Equivalent to Extreme Networks DWDM-SFP1G-31.90-80 in function
  • Hot pluggable SFP form factor
  • Data rate up to 1000Mbps
  • C57 1531.90nm DFB transmitter
  • PIN photo receiver
  • Duplex LC optical connector
  • Link distances up to SMF 80km
  • Built-in digital diagnostic via 2-wire interface
  • Single 3.3V power supply voltage
  • Power consumption < 1.5W
  • Ambient temperature range 0 to 70°C for commercial application
  • Compliant with INF-8074i, SFF-8472
  • Compliant with IEEE 802.3 1000BASE-DWDM
  • Compliant with RoHS, REACH, CE, FCC standards

Application

  • Gigabit Ethernet

Specification

Extreme Networks Compatible P/N DWDM-SFP1G-31.90-80 Form Factor SFP
Max Data Rate 1000Mbps Max Distance 80km (49.7 miles)
Wavelength 1531.90nm Connector Duplex LC
DDM/DOM Support Media SMF
Transmitter Type DFB Receiver Type PIN
Transmitter Power 0 to 5dBm Receiver Sensitivity < -24dBm
Extinction Ratio 8.2dB Receiver Overload -10dBm
Modulation Format NRZ Power Budget 24dB
Power Consumption 1.5W Commercial Temperature Range 0 to 70°C (32 to 158°F)
