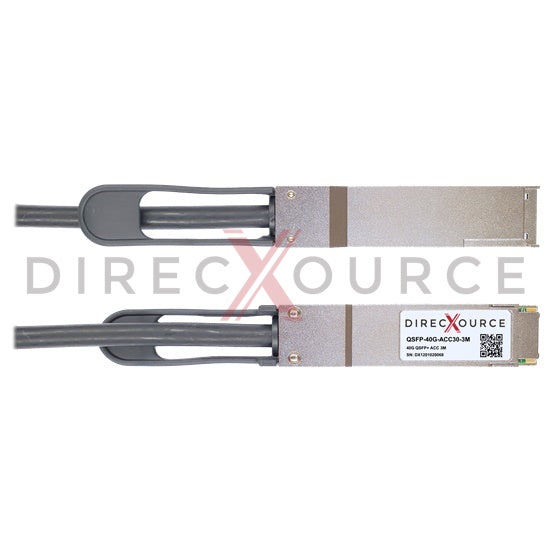

3m (9.84ft) Extreme Networks 40GB-AC03-QSFP Compatible 40G QSFP+ Active Direct Attach Twinax Copper Cable
Extreme Networks 40GB-AC03-QSFP compatible DAC is an active 40Gbps QSFP+ to QSFP+ direct attach cable for use in 40GBASE Ethernet. QSFP+ active DAC provides 40Gb/s throughput for 3m interconnection with high speed twin-axial copper cable. Standard length options cover from 1 meter to 10 meters. This DAC is fully compliant with QSFP+ Multi-Source Agreement (MSA), IEEE 802.3ba 40GBASE-CR4 and XLPPI standard. The twin-axial copper cable's wire gauge is 30AWG and pre-terminated with MSA compliant 38-pin edge type connectors. MSA memory map are accessible via 2-wire Interface (TWI/I2C). Our active DACs are factory pre-programmed for compatibility, perform identically to original Extreme Networks 40GB-AC03-QSFP direct attach cables.
Feature
- Equivalent to Extreme Networks 40GB-AC03-QSFP in function
- Hot Pluggable QSFP+ to QSFP+ Topology
- Aggregate data rate up to 40Gbps
- Pre-terminated 30AWG twin-axial copper cable
- 4x 10.3125Gbps XLPPI electrical interface
- Minimum bending radius 33mm
- MSA memory accessible via 2-wire interface
- Single 3.3V power supply voltage
- Power consumption < 1.5W
- Ambient temperature range 0 to 70°C for commercial application
- Compliant with SFF-8436, SFF-8635, SFF-8661, SFF-8679, SFF-8636
- Compliant with IEEE 802.3ba 40GBASE-CR4
- Compliant with RoHS, REACH, CE, FCC standards
Application
- 40G Ethernet
- Data Center
Specification
Extreme Networks Compatible P/N | 40GB-AC03-QSFP | Topology | QSFP+ to QSFP+ |
Max Data Rate | 40Gbps | Cable Length | 3m (9.84ft) |
Cable Type | Twinax | Wire Gauge | 30AWG |
Jacket Meterial | OFNR (PVC) | Minimum Bend Radius | 33mm |
Signal Conditioner | Redriver for TX and RX | Modulation Format | NRZ |
Power Consumption | 1.5W | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
