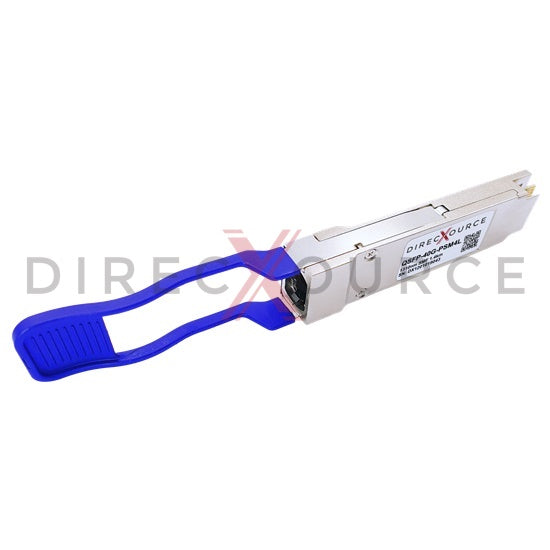

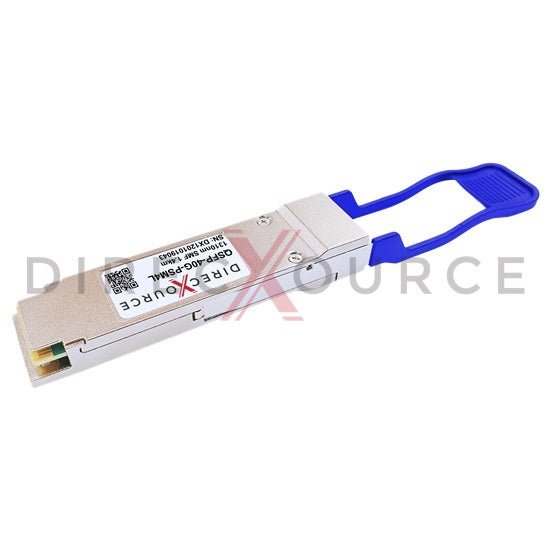

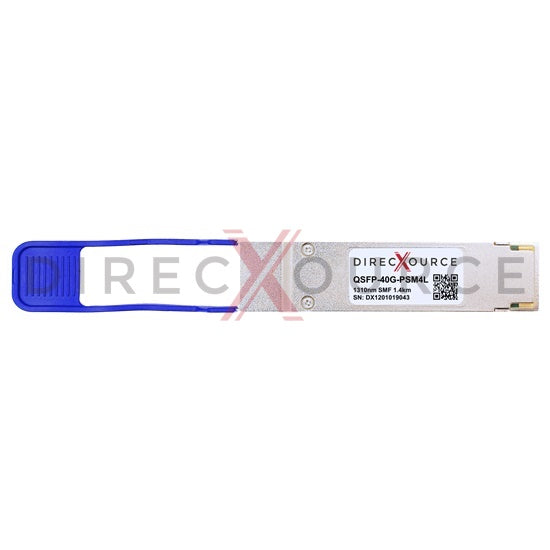

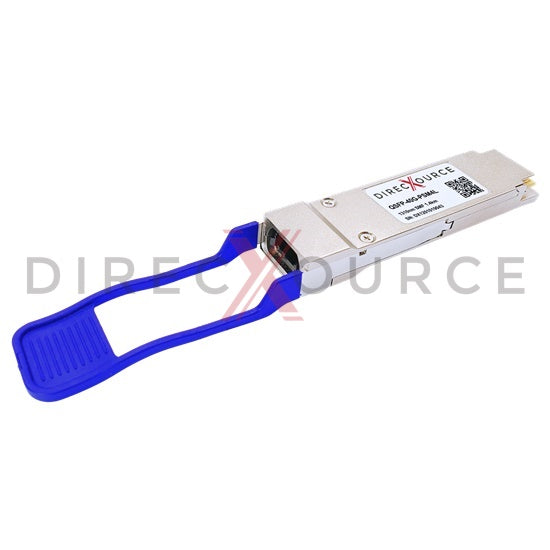

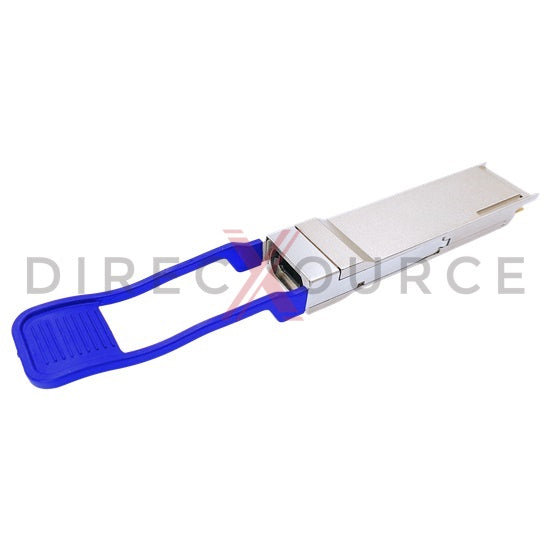

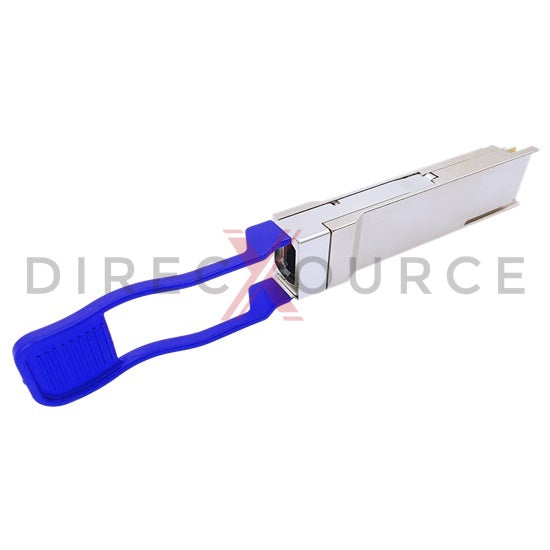

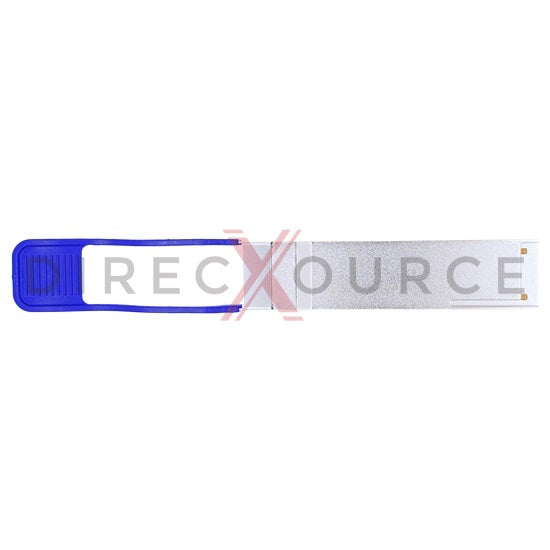

Extreme Networks 40G-QSFP-PLRL4 Compatible 40GBASE-PSM4L QSFP+ 1310nm 1.4km SMF MTP/MPO-12 DOM Optical Transceiver Module
Extreme Networks 40G-QSFP-PLRL4 compatible optical transceiver is a parallel 41.2Gbps Quad Small Form-factor Pluggable QSFP+ module for use in 40GBASE Ethernet. QSFP+ PSM4L provides 40Gb/s throughput up to 1.4km over single-mode fiber (SMF) using 1310nm wavelength. This transceiver is fully compliant with QSFP+ Multi-Source Agreement (MSA), IEEE 802.3 40GBASE-PSM4 and XLPPI standard. Its electrical interface is MSA compliant 38-pin edge type connector and the optical interface is MTP/MPO-12 APC connector. The full-duplex QSFP+ transceiver implements 4 independent 10.3125 Gbps transmit and receive channels in each fiber for an aggregate 40 Gbps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our modules are factory pre-programmed for compatibility, perform identically to original Extreme Networks 40G-QSFP-PLRL4 transceivers.
Feature
- Equivalent to Extreme Networks 40G-QSFP-PLRL4 in function
- Hot pluggable QSFP+ form factor
- Aggregate data rate up to 41.2Gbps
- 4 channels 1310nm DML transmitter
- 4 channels PIN photo receiver
- MTP/MPO-12 APC optical connector
- Link distances up to SMF 1.4km
- 4x 10.3125Gbps XLPPI electrical interface
- Built-in digital diagnostic via 2-wire interface
- Single 3.3V power supply voltage
- Power consumption < 2.5W
- Ambient temperature range 0 to 70°C for commercial application
- Compliant with SFF-8436, SFF-8635, SFF-8661, SFF-8679, SFF-8636
- Compliant with IEEE 802.3 40GBASE-PSM4
- Compliant with RoHS, REACH, CE, FCC standards
Application
- 40G Ethernet
- Data Center
- OTU3
Specification
Extreme Networks Compatible P/N | 40G-QSFP-PLRL4 | Form Factor | QSFP+ |
Max Data Rate | 41.2Gbps | Max Distance | 1.4km (0.9 miles) |
Wavelength | 1310nm | Connector | MTP/MPO-12 APC |
DDM/DOM | Support | Media | SMF |
Transmitter Type | 4x DML | Receiver Type | PIN |
Transmitter Power | -9.4 to 0.5dBm | Receiver Sensitivity | < -14.4dBm |
Extinction Ratio | 3.5dB | Receiver Overload | 1dBm |
Transmit and Dispersion Penalty | 3.5dB | Power Budget | 5dB |
OE Packaging | Box Packaging | Modulation Format | NRZ |
Power Consumption | 2.5W | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
