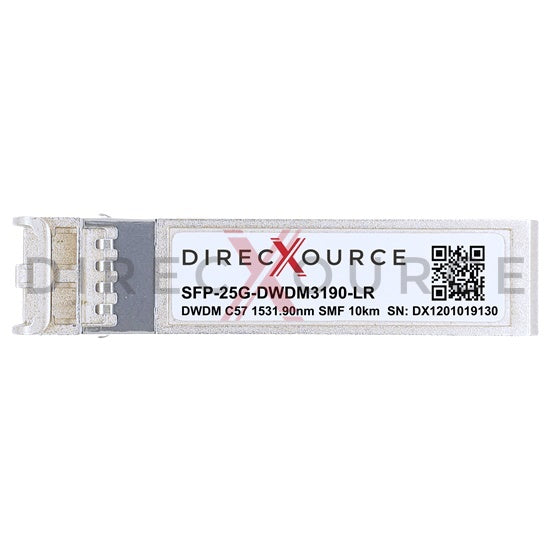

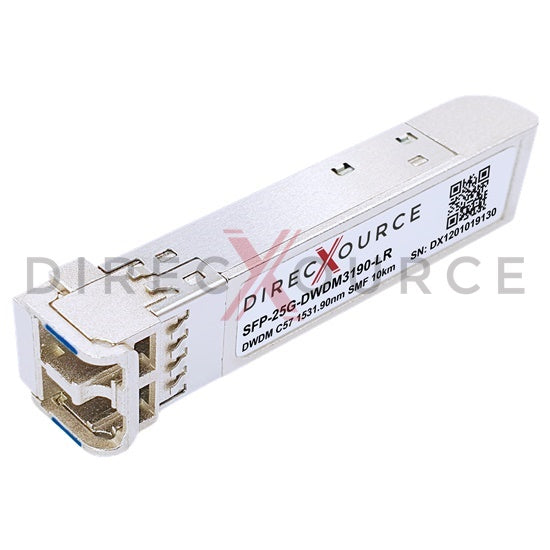

Dell DWDM-SFP25G-31.90 Compatible 25GBASE-DWDM SFP28 100GHz C57 1531.90nm 10km SMF LC DOM Optical Transceiver Module

Dell DWDM-SFP25G-31.90 Compatible 25GBASE-DWDM SFP28 100GHz C57 1531.90nm 10km SMF LC DOM Optical Transceiver Module

Dell DWDM-SFP25G-31.90 compatible optical transceiver is a dual fiber 25.8Gbps Small Form-factor Pluggable SFP28 DWDM module for use in 25GBASE Ethernet. SFP28 DWDM3190-LR provides 25Gb/s throughput up to 10km over single-mode fiber (SMF) with host FEC using C57 1531.90nm wavelength. This transceiver is fully compliant with SFP28 Multi-Source Agreement (MSA), IEEE 802.3 25GBASE-DWDM and 25GAUI standard. Its electrical interface is MSA compliant 20-pin edge type connector and the optical interface is Duplex LC connector. The full-duplex SFP28 transceiver features highly reliable DWDM EML transmitter and PIN photo detector to offer high performance interconnection at 25 Gbps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our modules are factory pre-programmed for compatibility, perform identically to original Dell DWDM-SFP25G-31.90 transceivers.

Feature

• Equivalent to Dell DWDM-SFP25G-31.90 in function
• Hot pluggable SFP28 form factor
• Data rate up to 25.8Gbps
• C57 1531.90nm DWDM EML transmitter
• PIN photo receiver
• Duplex LC optical connector
• Link distances up to SMF 10km with host FEC
• Internal CDR on both Transmitter and Receiver channels
• Built-in digital diagnostic via 2-wire interface
• Single 3.3V power supply voltage
• Power consumption < 2W
• Ambient temperature range 0 to 70°C for commercial application
• Compliant with SFF-8402, SFF-8432, SFF-8419, SFF-8472
• Compliant with IEEE 802.3 25GBASE-DWDM
• Compliant with RoHS, REACH, CE, FCC standards

Application

• 25G Ethernet
• Data Center

Specification
