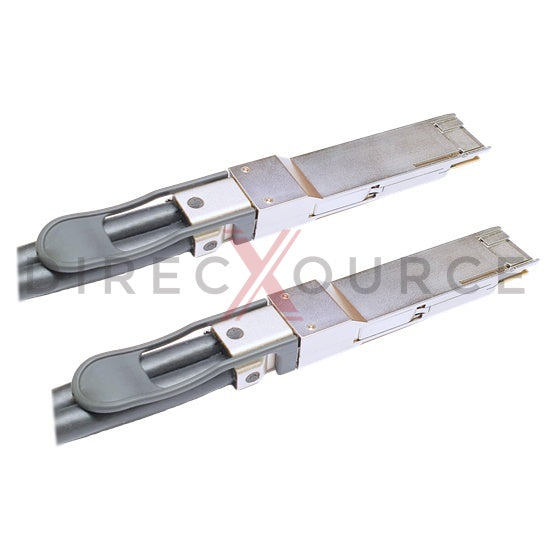

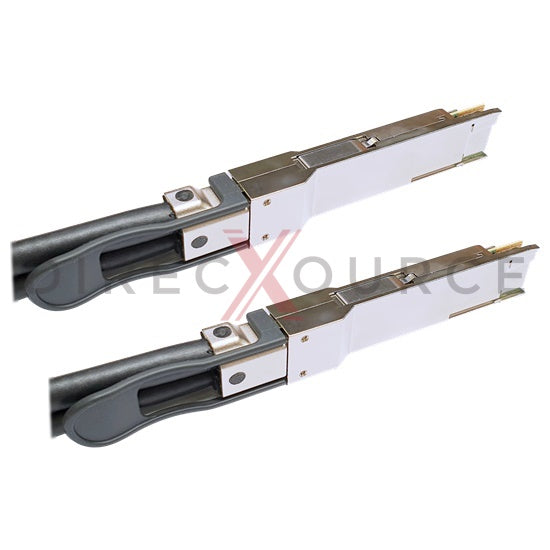

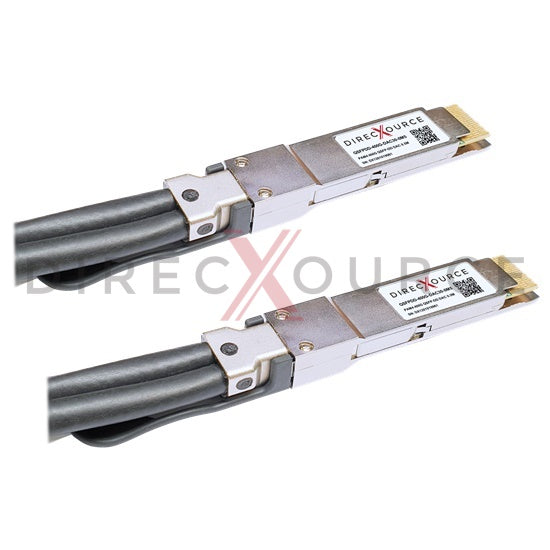

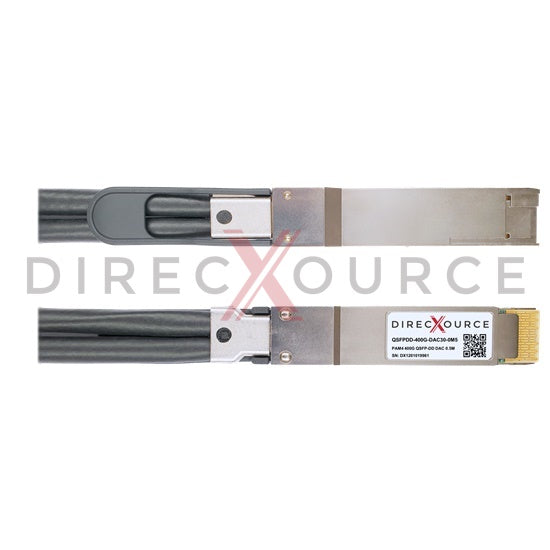

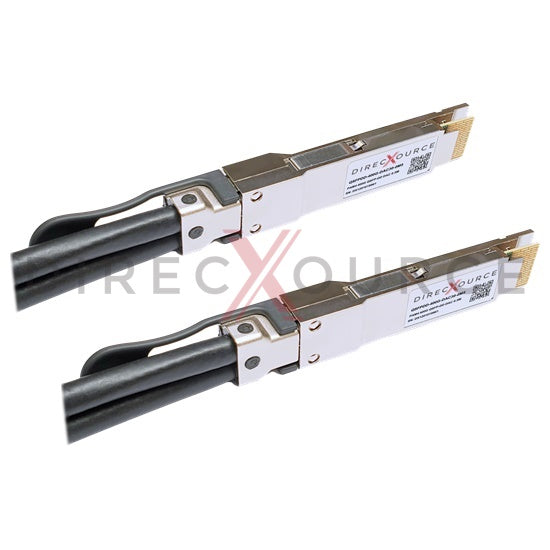

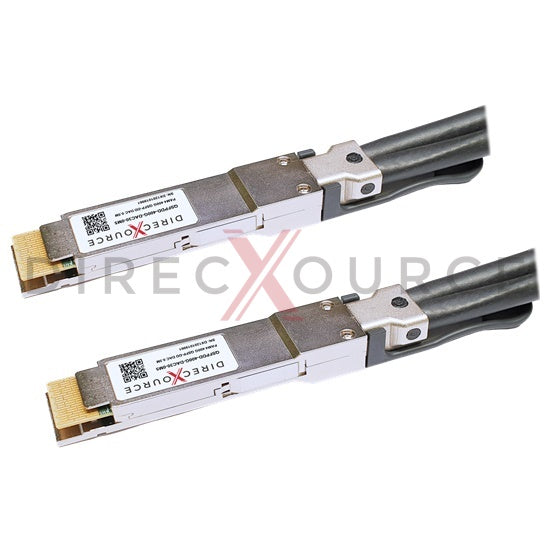

0.5m (1.64ft) Dell DAC-Q56DD-400G-0.5M Compatible 400G QSFP-DD PAM4 Passive Direct Attach Twinax Copper Cable

Original price $205.00
Current price $123.00
SKU

0.5m (1.64ft) Dell DAC-Q56DD-400G-0.5M Compatible 400G QSFP-DD PAM4 Passive Direct Attach Twinax Copper Cable


Dell DAC-Q56DD-400G-0.5M compatible DAC is a passive 400Gbps QSFP-DD to QSFP-DD direct attach cable for use in 400GBASE Ethernet. QSFP-DD DAC provides 400Gb/s throughput for 0.5m interconnection with high speed twin-axial copper cable. Standard length options cover from 0.5 meters to 3 meters. The QSFP-DD DAC cable implements 8 independent 50 Gbps PAM4 transmit and receive signal channels in each differential pair for an aggregate 400 Gbps data rate. It also supports 8 channels 25 Gbps NRZ signals for 200 Gbps interconnection. This DAC is fully compliant with QSFP-DD Multi-Source Agreement (MSA), IEEE 802.3cd 400GBASE-CR8 and 400GAUI-8 standard. The twin-axial copper cable's wire gauge is 30AWG and pre-terminated with MSA compliant 76-pin edge type connectors. MSA memory map are accessible via 2-wire Interface (TWI/I2C). Our DACs are factory pre-programmed for compatibility, perform identically to original Dell DAC-Q56DD-400G-0.5M direct attach cables.


Feature

  • Equivalent to Dell DAC-Q56DD-400G-0.5M in function
  • Hot Pluggable QSFP-DD to QSFP-DD Topology
  • Aggregate data rate up to 400Gbps
  • Pre-terminated 30AWG twin-axial copper cable
  • 8x 53.125Gbps PAM4 retimed 400GUAI-8 electrical interface
  • Minimum bending radius 33.5mm
  • MSA memory accessible via 2-wire interface
  • Single 3.3V power supply voltage
  • Extremely low power consumption near 0W
  • Ambient temperature range 0 to 70°C for commercial application
  • Compliant with QSFP-DD MSA
  • Compliant with IEEE 802.3cd 400GBASE-CR8
  • Compliant with IEEE 802.3bj 200GBASE-CR8
  • Compliant with RoHS, REACH, CE, FCC standards

Application

  • 400G Ethernet
  • Data Center

Specification

Dell Compatible P/N DAC-Q56DD-400G-0.5M Topology QSFP-DD to QSFP-DD
Max Data Rate 400Gbps Cable Length 0.5m (1.64ft)
Cable Type Twinax Wire Gauge 30AWG
Jacket Meterial OFNR (PVC) Minimum Bend Radius 33.5mm
Host FEC Support Modulation Format PAM4
Power Consumption 0W Commercial Temperature Range 0 to 70°C (32 to 158°F)
