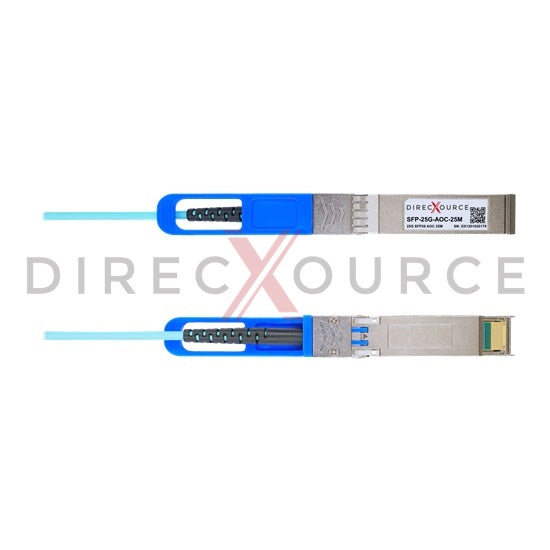

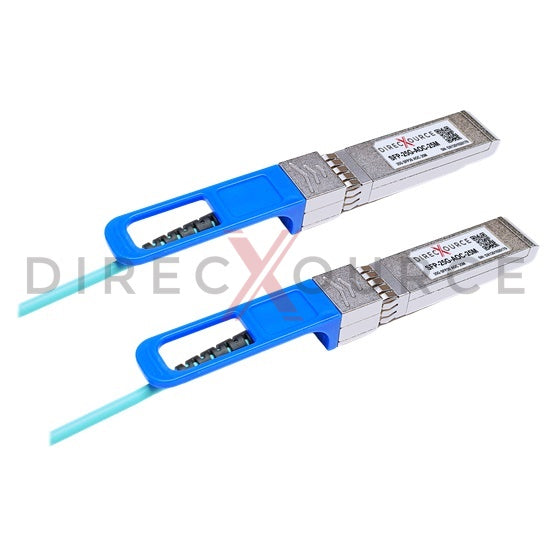

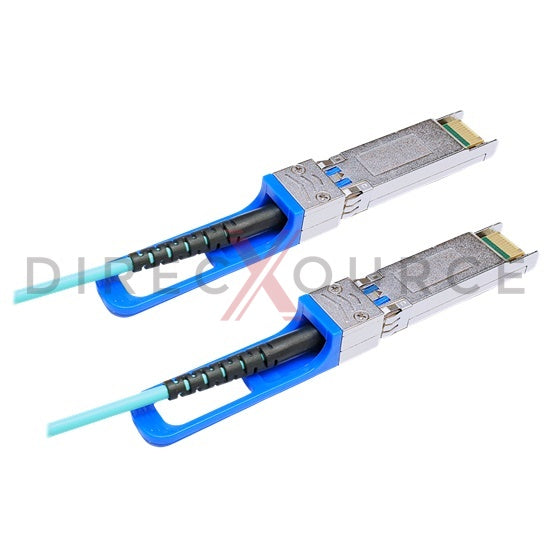

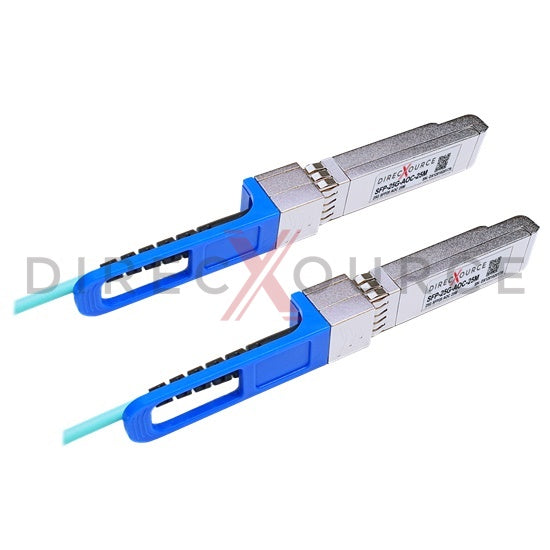

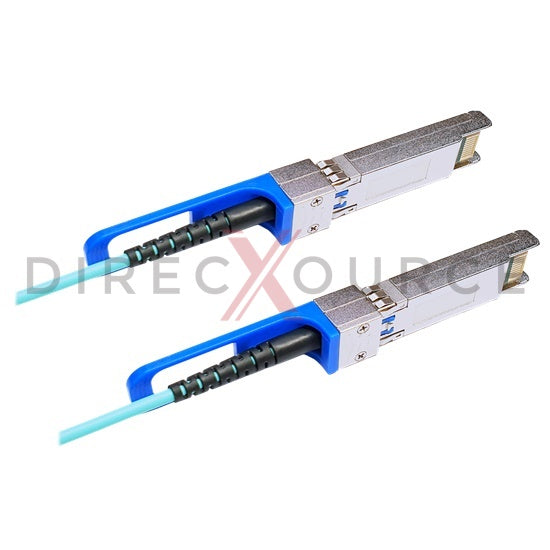

25m (82.02ft) Dell CBL-25GSFP28-AOC-25M Compatible 25G SFP28 Active Optical Cable

Original price $152.00
Current price $91.00
SKU

25m (82.02ft) Dell CBL-25GSFP28-AOC-25M Compatible 25G SFP28 Active Optical Cable


Dell CBL-25GSFP28-AOC-25M compatible AOC is a 25Gbps SFP28 to SFP28 active optical cable for use in 25GBASE Ethernet. SFP28 AOC provides 25Gb/s throughput for 25m interconnection with laser-optimized multi-mode fiber optical cable. Standard length options cover from 1 meter to 30 meters. This AOC is fully compliant with SFP28 Multi-Source Agreement (MSA), IEEE 802.3by 25GBASE-CR and 25GAUI standard. The active optical cable is pre-terminated with MSA compliant 20-pin edge type connectors. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our AOCs are factory pre-programmed for compatibility, perform identically to original Dell CBL-25GSFP28-AOC-25M direct attach cables.


Feature

  • Equivalent to Dell CBL-25GSFP28-AOC-25M in function
  • Hot Pluggable SFP28 to SFP28 Topology
  • Data rate up to 25.8Gbps
  • Pre-terminated Multi-mode fiber cable
  • 25.78125Gbps NRZ retimed 25GUAI electrical interface
  • Minimum bending radius 7.5mm
  • Built-in digital diagnostic via 2-wire interface
  • Single 3.3V power supply voltage
  • Power consumption < 1W
  • Ambient temperature range 0 to 70°C for commercial application
  • Compliant with SFF-8402, SFF-8432, SFF-8419, SFF-8472
  • Compliant with IEEE 802.3by 25GBASE-CR
  • Compliant with RoHS, REACH, CE, FCC standards

Application

  • 25G Ethernet
  • Data Center

Specification

Dell Compatible P/N CBL-25GSFP28-AOC-25M Topology SFP28 to SFP28
Max Data Rate 25Gbps Cable Length 25m (82.02ft)
Cable Type OM3 Multi Mode Fiber Jacket Meterial OFNP
Minimum Bend Radius 7.5mm Signal Conditioner Retimer for TX and RX
Modulation Format NRZ Host FEC Support
Power Consumption 1W Commercial Temperature Range 0 to 70°C (32 to 158°F)
