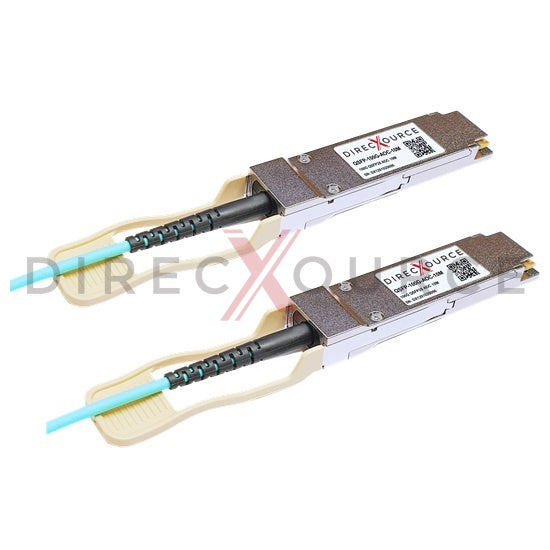

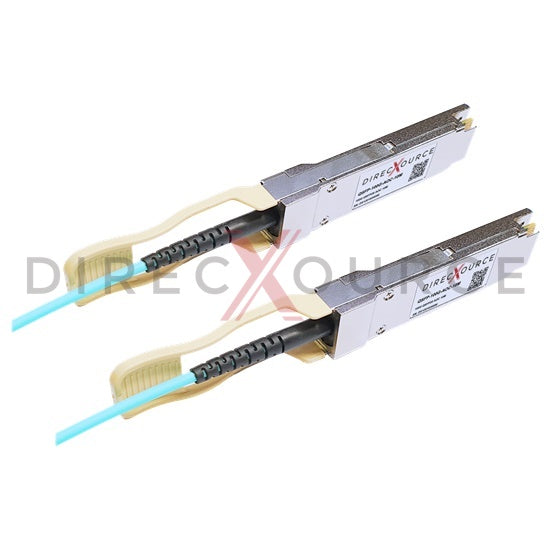

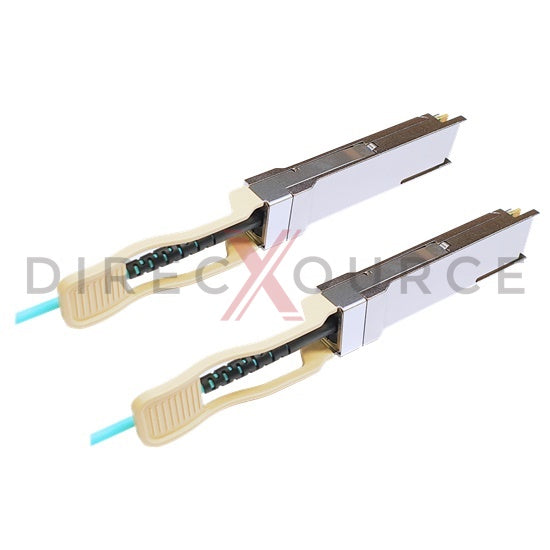

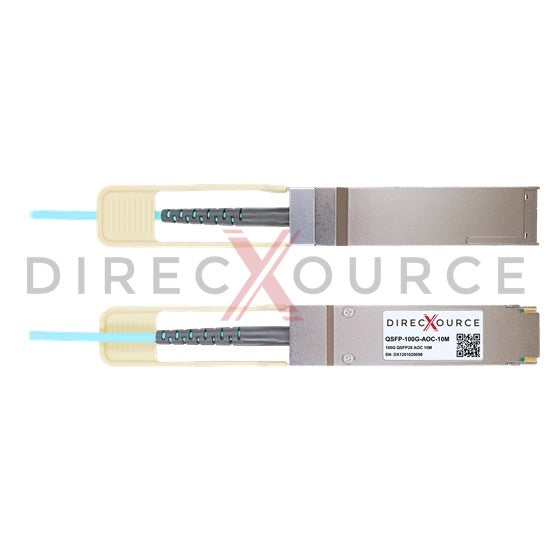

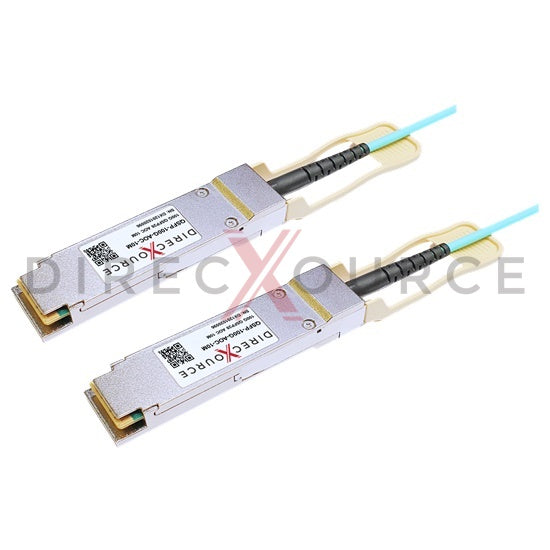

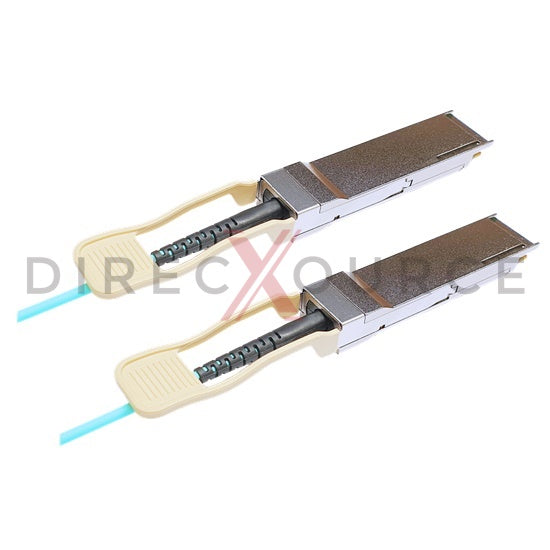

10m (32.81ft) Dell AOC-QSFP28-100G-10M Compatible 100G QSFP28 Active Optical Cable

10m (32.81ft) Dell AOC-QSFP28-100G-10M Compatible 100G QSFP28 Active Optical Cable

Dell AOC-QSFP28-100G-10M compatible AOC is a 100Gbps QSFP28 to QSFP28 active optical cable for use in 100GBASE Ethernet. QSFP28 AOC provides 100Gb/s throughput for 10m interconnection with laser-optimized multi-mode fiber optical cable. Standard length options cover from 0.5 meters to 30 meters. The QSFP28 AOC cable implements 4 independent 25 Gbps NRZ transmit and receive signal channels in each fiber for an aggregate 100 Gbps data rate. This AOC is fully compliant with QSFP28 Multi-Source Agreement (MSA), IEEE 802.3bj 100GBASE-CR4 and CAUI-4 standard. The active optical cable is pre-terminated with MSA compliant 38-pin edge type connectors. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our AOCs are factory pre-programmed for compatibility, perform identically to original Dell AOC-QSFP28-100G-10M direct attach cables.

Feature

• Equivalent to Dell AOC-QSFP28-100G-10M in function
• Hot Pluggable QSFP28 to QSFP28 Topology
• Aggregate data rate up to 100Gbps
• Pre-terminated Multi-mode fiber cable
• 4x 25.78125Gbps NRZ retimed CUAI-4 electrical interface
• Minimum bending radius 7.5mm
• Built-in digital diagnostic via 2-wire interface
• Single 3.3V power supply voltage
• Power consumption < 3.5W
• Ambient temperature range 0 to 70°C for commercial application
• Compliant with SFF-8665, SFF-8661, SFF-8679, SFF-8636
• Compliant with IEEE 802.3bj 100GBASE-CR4
• Compliant with RoHS, REACH, CE, FCC standards

Application

• 100G Ethernet
• Data Center

Specification
