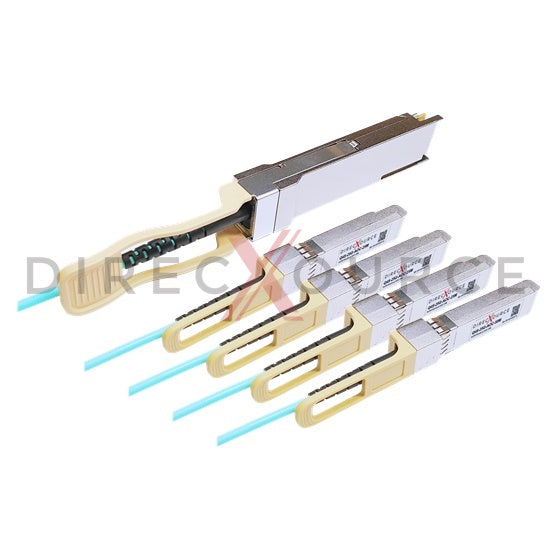

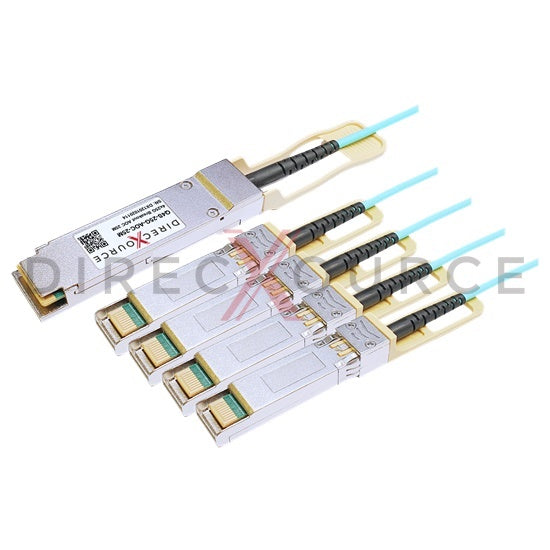

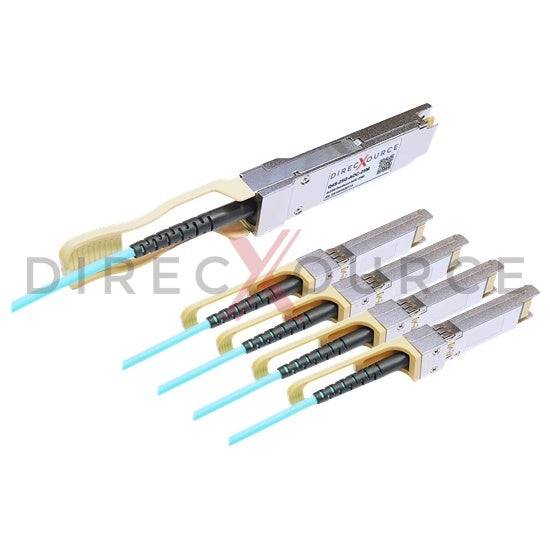

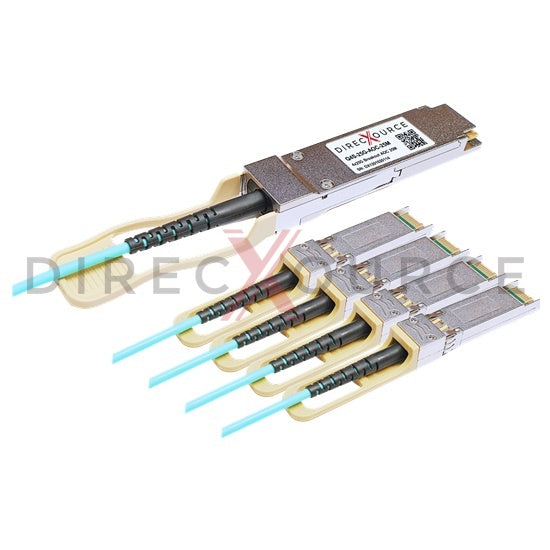

25m (82.02ft) Dell AOC-Q28-4SFP28-25G-25M Compatible 100G QSFP28 to 4x25G SFP28 Breakout Active Optical Cable

25m (82.02ft) Dell AOC-Q28-4SFP28-25G-25M Compatible 100G QSFP28 to 4x25G SFP28 Breakout Active Optical Cable

Dell AOC-Q28-4SFP28-25G-25M compatible AOC is a 4x 25Gbps QSFP28 to 4 SFP28 active optical breakout cable for use in 25GBASE Ethernet. QSFP28 breakout AOC provides 4x 25Gb/s throughput for 25m interconnection with laser-optimized multi-mode fiber optical cable. Standard length options cover from 1 meter to 30 meters. The breakout AOC cable splits 4x 25 Gbps NRZ signals from QSFP28 into SFP28. This AOC is fully compliant with QSFP28 Multi-Source Agreement (MSA), IEEE 802.3by 25GBASE-CR and 25GAUI standard. The active optical cable is pre-terminated with MSA compliant 38-pin and 20-pin edge type connectors. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our breakout AOCs are factory pre-programmed for compatibility, perform identically to original Dell AOC-Q28-4SFP28-25G-25M direct attach cables.

Feature

• Equivalent to Dell AOC-Q28-4SFP28-25G-25M in function
• Hot Pluggable QSFP28 to 4 SFP28 Topology
• Split 100Gbps into 4 channels of 25Gbps
• Pre-terminated Multi-mode fiber cable
• 4x 25.78125Gbps NRZ retimed CUAI-4/25GAUI electrical interface
• Minimum bending radius 7.5mm
• Built-in digital diagnostic via 2-wire interface
• Single 3.3V power supply voltage
• Power consumption < 3.5W/1W
• Ambient temperature range 0 to 70°C for commercial application
• Compliant with SFF-8665, SFF-8661, SFF-8679, SFF-8636, SFF-8402, SFF-8432, SFF-8419, SFF-8472
• Compliant with IEEE 802.3by 25GBASE-CR
• Compliant with RoHS, REACH, CE, FCC standards

Application

• 25G Ethernet
• Data Center

Specification
