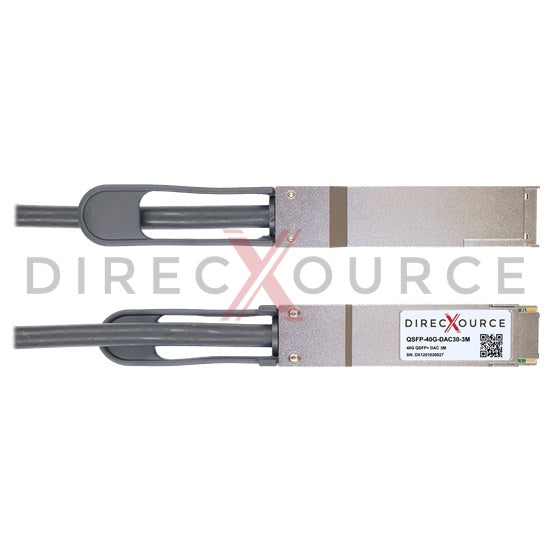

3m (9.84ft) Cisco QSFP-H40G-CU3M Compatible 40G QSFP+ Passive Direct Attach Twinax Copper Cable

Original price $57.00
Current price $34.00
SKU

3m (9.84ft) Cisco QSFP-H40G-CU3M Compatible 40G QSFP+ Passive Direct Attach Twinax Copper Cable


Cisco QSFP-H40G-CU3M compatible DAC is a passive 40Gbps QSFP+ to QSFP+ direct attach cable for use in 40GBASE Ethernet. QSFP+ DAC provides 40Gb/s throughput for 3m interconnection with high speed twin-axial copper cable. Standard length options cover from 0.5 meters to 7 meters. The QSFP+ DAC cable implements 4 independent 10 Gbps NRZ transmit and receive signal channels in each differential pair for an aggregate 40 Gbps data rate. This DAC is fully compliant with QSFP+ Multi-Source Agreement (MSA), IEEE 802.3ba 40GBASE-CR4 and XLPPI standard. The twin-axial copper cable's wire gauge is 30AWG and pre-terminated with MSA compliant 38-pin edge type connectors. MSA memory map are accessible via 2-wire Interface (TWI/I2C). Our DACs are factory pre-programmed for compatibility, perform identically to original Cisco QSFP-H40G-CU3M direct attach cables.


Feature

  • Equivalent to Cisco QSFP-H40G-CU3M in function
  • Hot Pluggable QSFP+ to QSFP+ Topology
  • Aggregate data rate up to 40Gbps
  • Pre-terminated 30AWG twin-axial copper cable
  • 4x 10.3125Gbps XLPPI electrical interface
  • Minimum bending radius 35mm
  • MSA memory accessible via 2-wire interface
  • Single 3.3V power supply voltage
  • Extremely low power consumption near 0W
  • Ambient temperature range 0 to 70°C for commercial application
  • Compliant with SFF-8436, SFF-8635, SFF-8661, SFF-8679, SFF-8636
  • Compliant with IEEE 802.3ba 40GBASE-CR4
  • Compliant with RoHS, REACH, CE, FCC standards

Application

  • 40G Ethernet
  • Data Center

Specification

Cisco Compatible P/N QSFP-H40G-CU3M Topology QSFP+ to QSFP+
Max Data Rate 40Gbps Cable Length 3m (9.84ft)
Cable Type Twinax Wire Gauge 30AWG
Jacket Meterial OFNR (PVC) Minimum Bend Radius 35mm
Power Consumption 0W Commercial Temperature Range 0 to 70°C (32 to 158°F)
