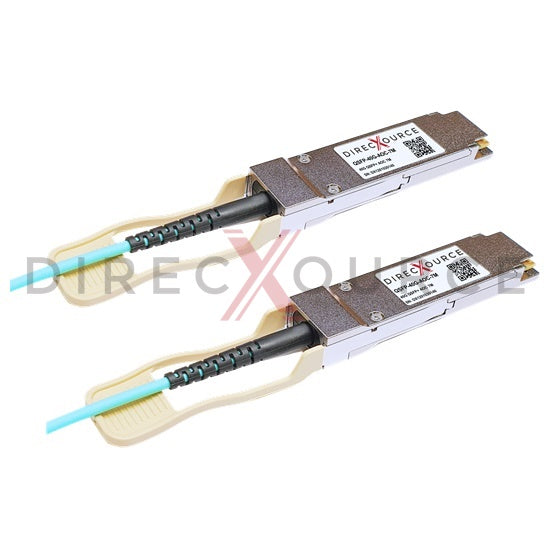

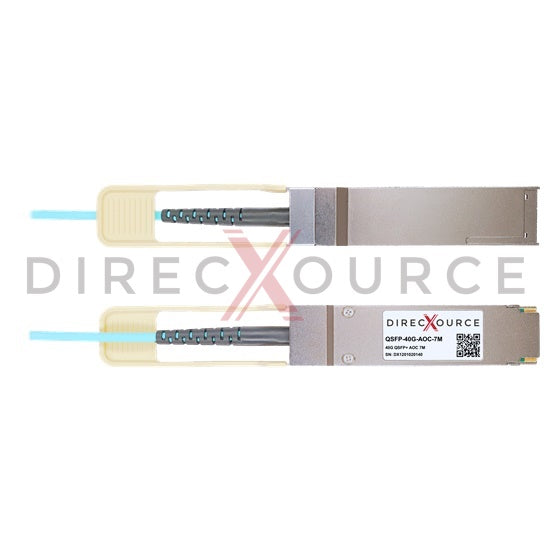

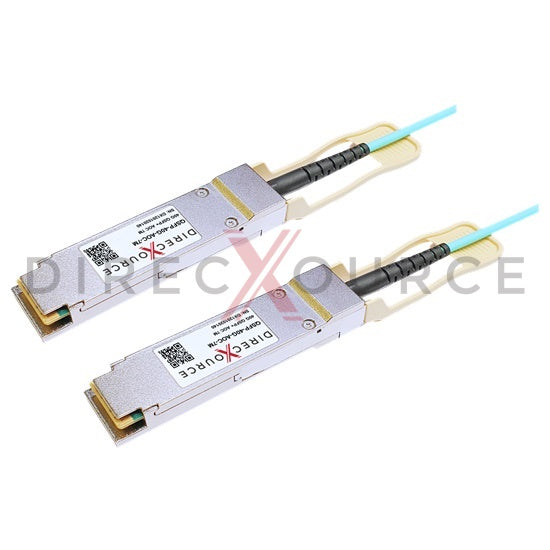

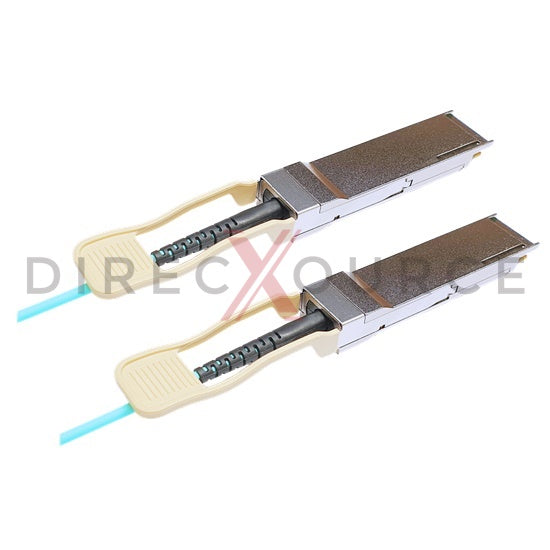

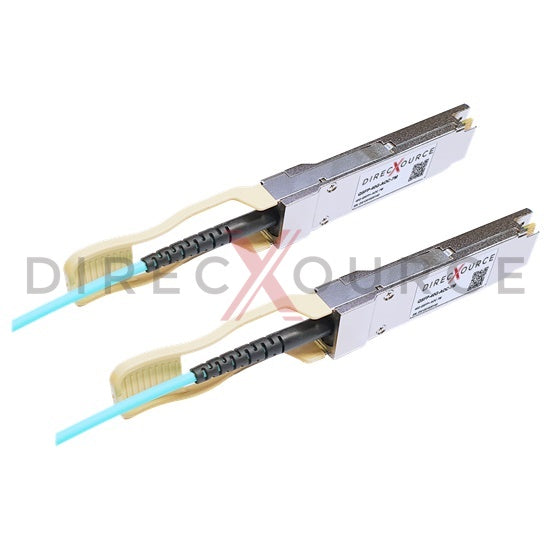

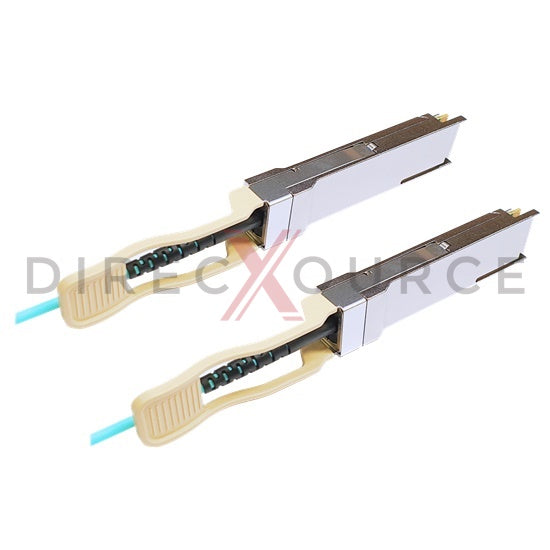

7m (22.97ft) Cisco QSFP-H40G-AOC7M Compatible 40G QSFP+ Active Optical Cable

Original price $190.00
Current price $114.00
SKU

7m (22.97ft) Cisco QSFP-H40G-AOC7M Compatible 40G QSFP+ Active Optical Cable


Cisco QSFP-H40G-AOC7M compatible AOC is a 40Gbps QSFP+ to QSFP+ active optical cable for use in 40GBASE Ethernet. QSFP+ AOC provides 40Gb/s throughput for 7m interconnection with laser-optimized multi-mode fiber optical cable. Standard length options cover from 1 meter to 30 meters. The QSFP+ AOC cable implements 4 independent 10 Gbps NRZ transmit and receive signal channels in each fiber for an aggregate 40 Gbps data rate. This AOC is fully compliant with QSFP+ Multi-Source Agreement (MSA), IEEE 802.3ba 40GBASE-CR4 and XLPPI standard. The active optical cable is pre-terminated with MSA compliant 38-pin edge type connectors. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our AOCs are factory pre-programmed for compatibility, perform identically to original Cisco QSFP-H40G-AOC7M direct attach cables.


Feature

  • Equivalent to Cisco QSFP-H40G-AOC7M in function
  • Hot Pluggable QSFP+ to QSFP+ Topology
  • Aggregate data rate up to 40Gbps
  • Pre-terminated Multi-mode fiber cable
  • 4x 10.3125Gbps XLPPI electrical interface
  • Minimum bending radius 7.5mm
  • Built-in digital diagnostic via 2-wire interface
  • Single 3.3V power supply voltage
  • Power consumption < 1W
  • Ambient temperature range 0 to 70°C for commercial application
  • Compliant with SFF-8436, SFF-8635, SFF-8661, SFF-8679, SFF-8636
  • Compliant with IEEE 802.3ba 40GBASE-CR4
  • Compliant with RoHS, REACH, CE, FCC standards

Application

  • 40G Ethernet
  • Data Center

Specification

Cisco Compatible P/N QSFP-H40G-AOC7M Topology QSFP+ to QSFP+
Max Data Rate 40Gbps Cable Length 7m (22.97ft)
Cable Type OM3 Multi Mode Fiber Jacket Meterial OFNP
Minimum Bend Radius 7.5mm Signal Conditioner None
Power Consumption 1W Commercial Temperature Range 0 to 70°C (32 to 158°F)
