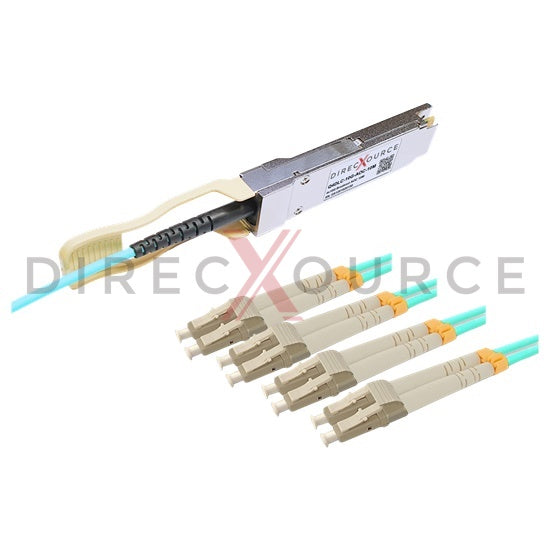

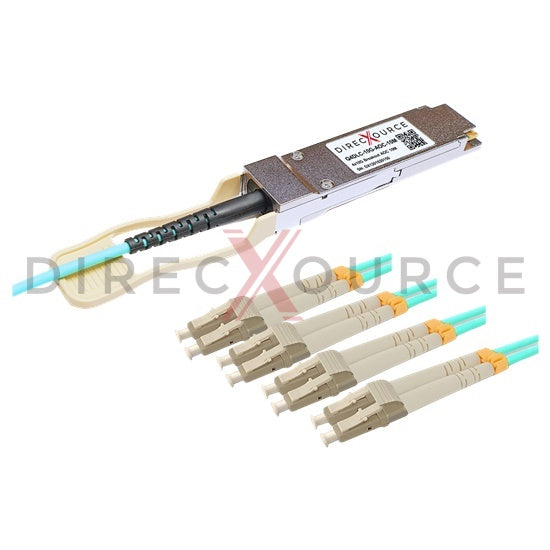

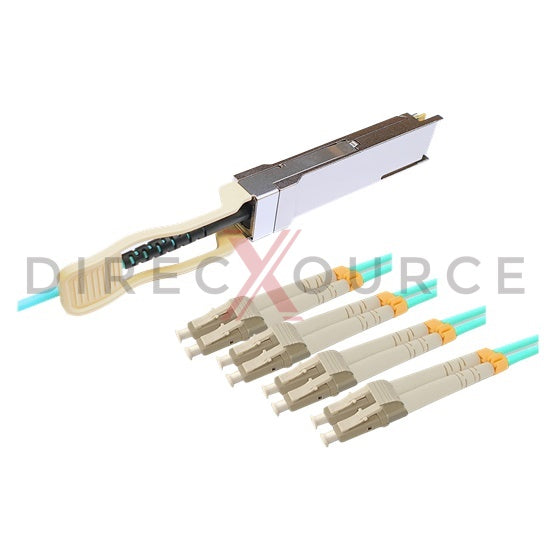

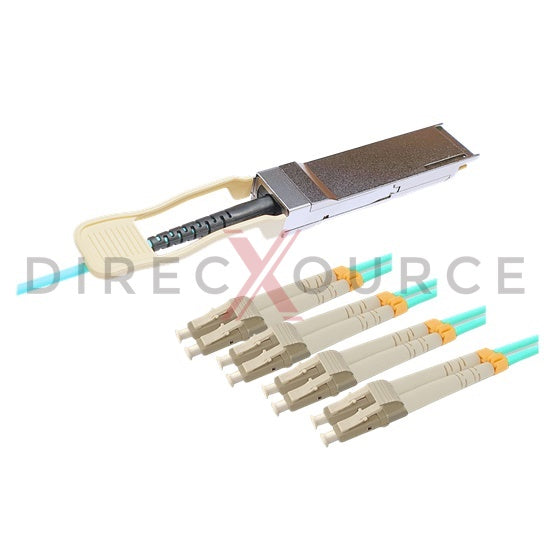

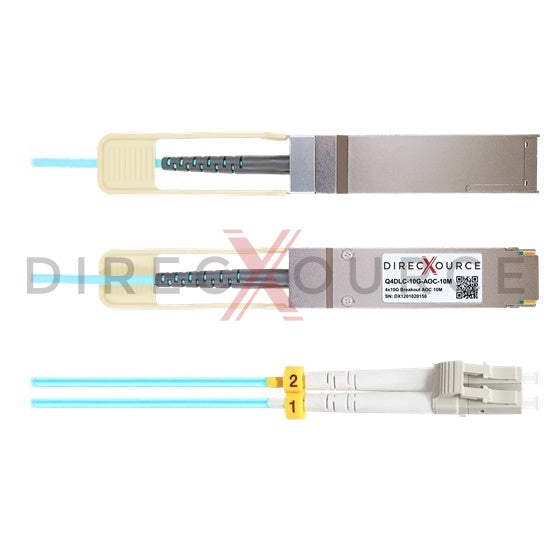

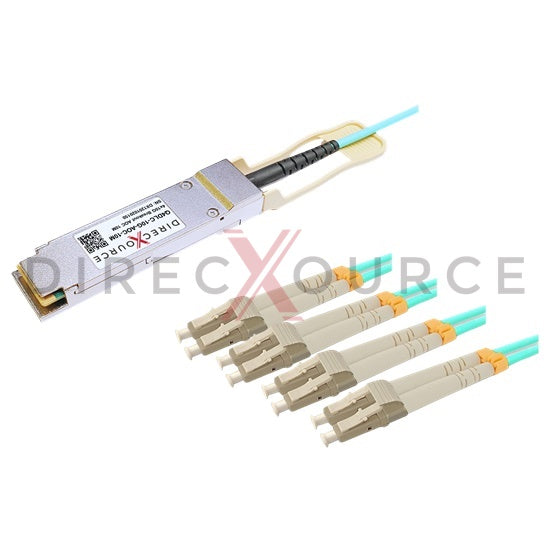

10m (32.81ft) Cisco QSFP-8LC-AOC10M Compatible 40G QSFP+ to 4x Duplex LC Breakout Active Optical Cable

Original price $252.00
Current price $151.00
SKU

10m (32.81ft) Cisco QSFP-8LC-AOC10M Compatible 40G QSFP+ to 4x Duplex LC Breakout Active Optical Cable


Cisco QSFP-8LC-AOC10M compatible AOC is a 4x 10Gbps QSFP+ to 4 Duplex LC active optical breakout cable for use in 10GBASE Ethernet. QSFP+ breakout AOC provides 10Gb/s throughput for 10m interconnection with laser-optimized multi-mode fiber optical cable. Standard length options cover from 5 meters to 30 meters. The breakout AOC cable splits 4x 10 Gbps NRZ signals from QSFP+ into duplex LC. This AOC is fully compliant with QSFP+ Multi-Source Agreement (MSA), IEEE 802.3ae 10GBASE-CR and XLPPI standard. The active optical cable is pre-terminated with MSA compliant 38-pin edge type connectors. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our breakout AOCs are factory pre-programmed for compatibility, perform identically to original Cisco QSFP-8LC-AOC10M direct attach cables.


Feature

  • Equivalent to Cisco QSFP-8LC-AOC10M in function
  • Hot Pluggable QSFP+ to 4 Duplex LC Topology
  • Split 40Gbps into 4 channels of 10Gbps
  • Pre-terminated Multi-mode fiber cable
  • 4x 10.3125Gbps XLPPI electrical interface
  • Minimum bending radius 7.5mm
  • Built-in digital diagnostic via 2-wire interface
  • Single 3.3V power supply voltage
  • Power consumption < 1W
  • Ambient temperature range 0 to 70°C for commercial application
  • Compliant with SFF-8436, SFF-8635, SFF-8661, SFF-8679, SFF-8636
  • Compliant with IEEE 802.3ae 10GBASE-CR
  • Compliant with RoHS, REACH, CE, FCC standards

Application

  • 10G Ethernet
  • Data Center

Specification

Cisco Compatible P/N QSFP-8LC-AOC10M Topology QSFP+ to 4 Duplex LC
Max Data Rate 4x 10Gbps Cable Length 10m (32.81ft)
Cable Type OM3 Multi Mode Fiber Jacket Meterial OFNP
Minimum Bend Radius 7.5mm Signal Conditioner None
Power Consumption 1W Commercial Temperature Range 0 to 70°C (32 to 158°F)
