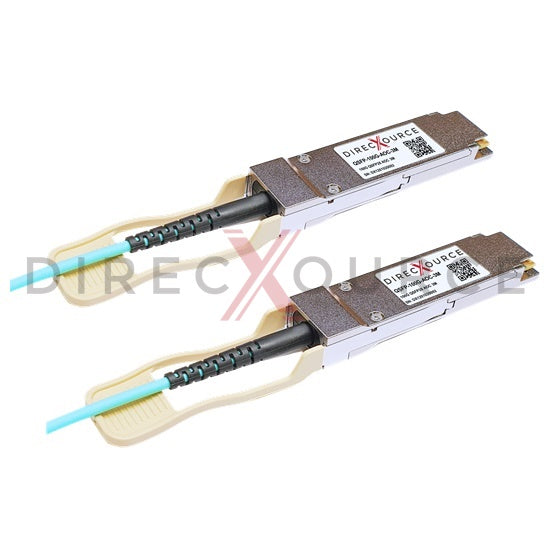

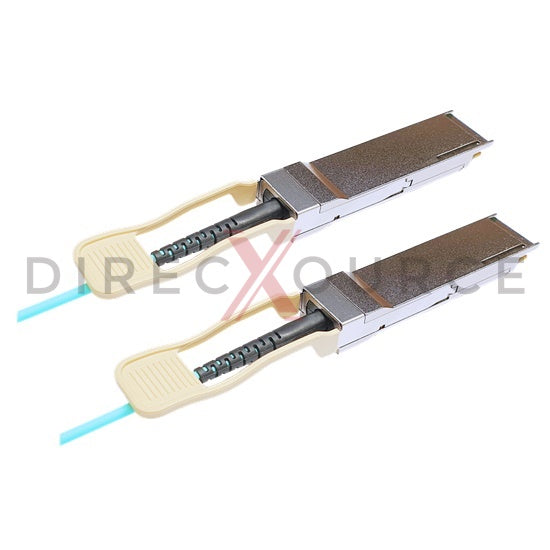

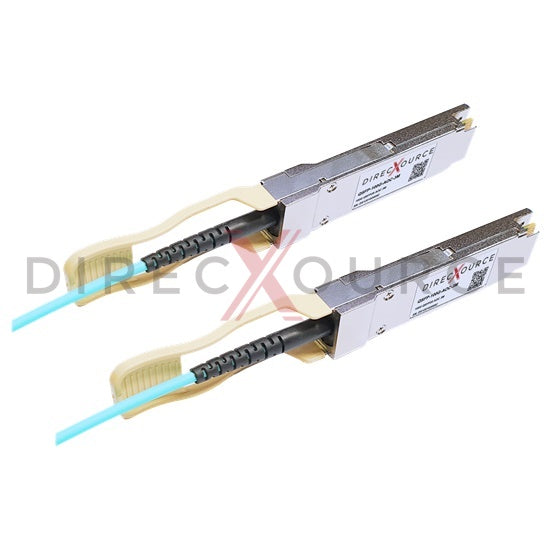

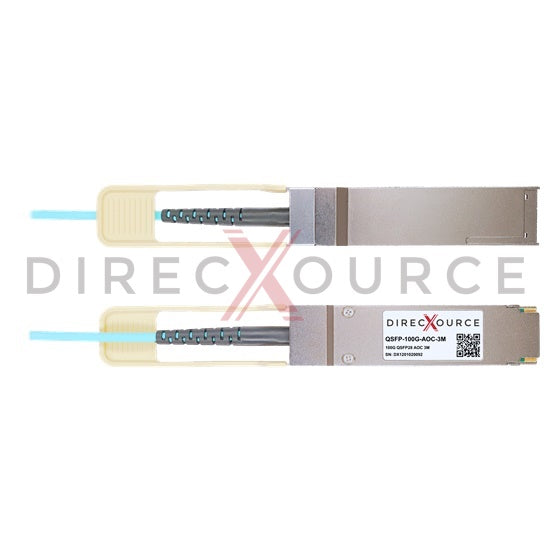

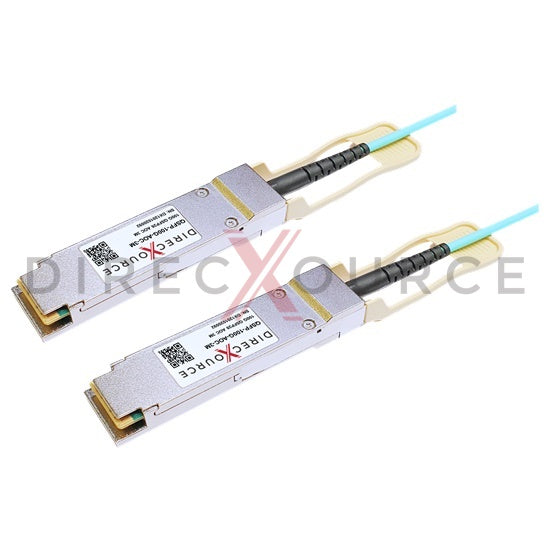

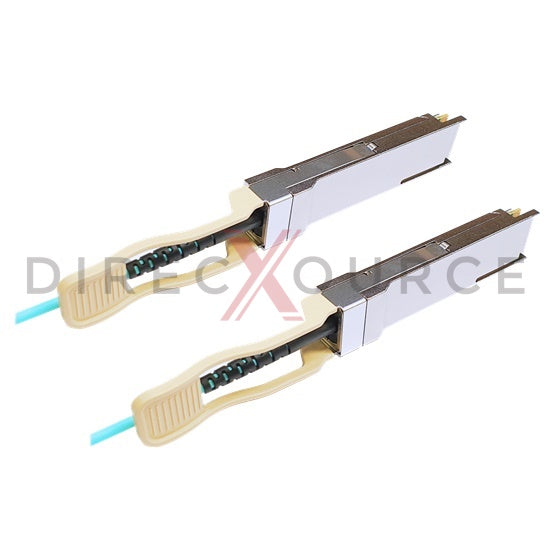

3m (9.84ft) Cisco QSFP-100G-AOC3M Compatible 100G QSFP28 Active Optical Cable
Cisco QSFP-100G-AOC3M compatible AOC is a 100Gbps QSFP28 to QSFP28 active optical cable for use in 100GBASE Ethernet. QSFP28 AOC provides 100Gb/s throughput for 3m interconnection with laser-optimized multi-mode fiber optical cable. Standard length options cover from 0.5 meters to 30 meters. The QSFP28 AOC cable implements 4 independent 25 Gbps NRZ transmit and receive signal channels in each fiber for an aggregate 100 Gbps data rate. This AOC is fully compliant with QSFP28 Multi-Source Agreement (MSA), IEEE 802.3bj 100GBASE-CR4 and CAUI-4 standard. The active optical cable is pre-terminated with MSA compliant 38-pin edge type connectors. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our AOCs are factory pre-programmed for compatibility, perform identically to original Cisco QSFP-100G-AOC3M direct attach cables.
Feature
- Equivalent to Cisco QSFP-100G-AOC3M in function
- Hot Pluggable QSFP28 to QSFP28 Topology
- Aggregate data rate up to 100Gbps
- Pre-terminated Multi-mode fiber cable
- 4x 25.78125Gbps NRZ retimed CUAI-4 electrical interface
- Minimum bending radius 7.5mm
- Built-in digital diagnostic via 2-wire interface
- Single 3.3V power supply voltage
- Power consumption < 3.5W
- Ambient temperature range 0 to 70°C for commercial application
- Compliant with SFF-8665, SFF-8661, SFF-8679, SFF-8636
- Compliant with IEEE 802.3bj 100GBASE-CR4
- Compliant with RoHS, REACH, CE, FCC standards
Application
- 100G Ethernet
- Data Center
Specification
| Cisco Compatible P/N | QSFP-100G-AOC3M | Topology | QSFP28 to QSFP28 |
| Max Data Rate | 100Gbps | Cable Length | 3m (9.84ft) |
| Cable Type | OM3 Multi Mode Fiber | Jacket Meterial | OFNP |
| Minimum Bend Radius | 7.5mm | Signal Conditioner | Retimer for TX and RX |
| Modulation Format | NRZ | Host FEC | Support |
| Power Consumption | 3.5W | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
